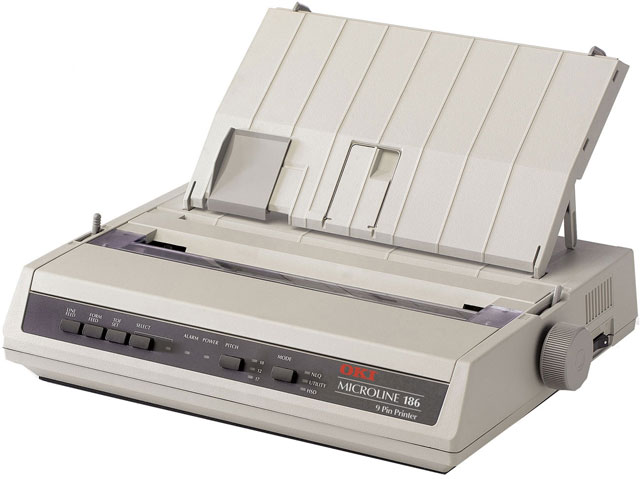

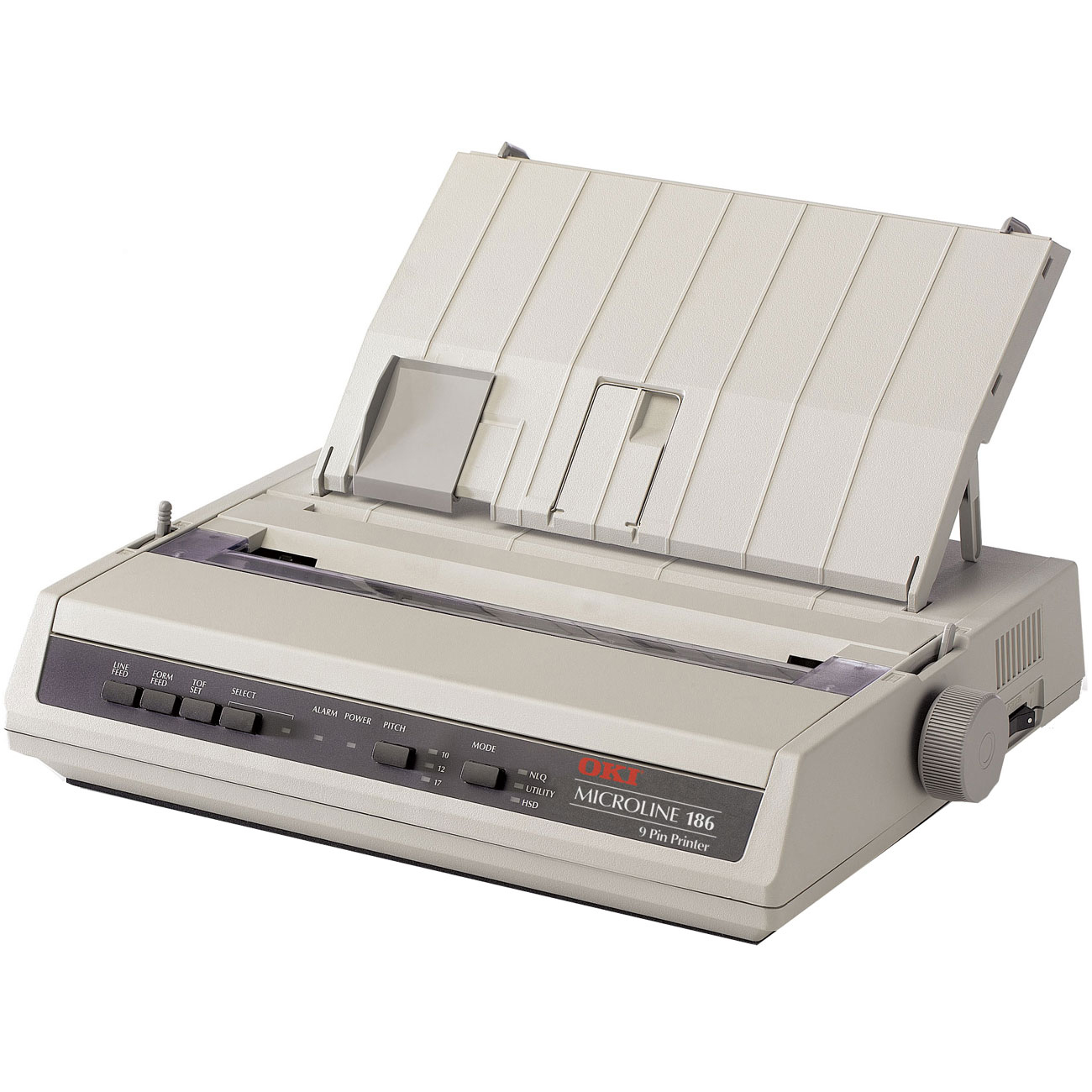

OKI 62422401 Line Printer

Part Number: 62422401
Model:

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Maximum Mono Print Speed (cps)
375
Maximum Print Resolution
240 x 216 dpi
Number of Pins
9-pin
Standard Memory
128 KB

Product Description:

  ML186 SERIAL/USB, 120V PRINTER

OKI Parts Accessory Model Overview

Products and parts from OKI.
OKI 62422401 Line Printer Overview

The OKI MICROLINE 186 Serial printer actually thrives in industrial and point-of-sale environments because it is built to meet the renowned OKI standards for quality and Tank-Tough reliability. It is packed with advanced, field-proven technology, including a patented OKI closed-loop optical sensor that accurately positions the printhead, ensuring precise characters even on the last page of a 5-part form. It also combines efficiency with economy.

The printer small footprint makes it ideal for use in your system configuration and the operator panel control of character sets, form length, and other frequently used functions makes it quite easy to use. The printer has a lockout feature to prevent unauthorized setting changes.

Technical Information
Maximum Mono Print Speed (cps):
375
Maximum Print Resolution:
240 x 216 dpi
Number of Pins:
9-pin
Memory
Standard Memory:
128 KB
Maximum Memory Supported:
128 KB
Memory Technology:
DRAM
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Plain Paper
  • Envelope
  • Label
  • Continuous Form
  • Cut Sheet
  • Card Stock
Media Handling:
Cut Sheet Feeder
Fonts & Emulation
Language Emulation:
  • Oki Microline
  • Epson ESC/P
  • IBM 2480
Reliability
MTBF:
20000 Hour
Duty Cycle:
13000
Power Description
Power Source:
AC Supply
Input Voltage:
110 V AC
Physical Characteristics
Height:
5"
Width:
4.2"
Depth:
11"
Weight (Approximate):
10 lb
Miscellaneous
Additional Information:

Paper Handling:

  • Paper Feeding: Top Friction, Bottom (with optional Tractor), Rear Pinfeed Platen
  • Options: Pull Tractor, Roll Paper Stand
  • Number of Copies: 4-part Rear Feed; 5-part Bottom Feed
  • Thickness: 0.011" (0.28mm) maximum

Character Sets:

  • Standard ASCII
  • Epson
  • IBM
  • MICROLINE
  • 39 Foreign sets
  • 49 Code pages
  • Bar codes
  • PostNet
  • Character Pitch (cpi): 10, 12, 15, 17.1 and 20
System Requirements:

PC:

  • Windows 3.x
  • Windows 95
  • Windows 98
  • Windows 2000
  • Windows XP
  • Windows NT 4.0
  • MS-DOS
  • Unix
  • Linux
Certifications & Standards:
  • Energy Star
Platform Supported:
PC
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0051851260372, 0080479160177, 0518512603720, 4943783175588
UPC: 051851260372, 080479160177, 518512603720
EAN: 0051851260372, 0080479160177, 0518512603720, 4943783175588
UNSPSC: 43212102
The OKI 62422401 Line Printer is also known as 62422401
