O'Neil 208109-100 Portable Barcode Printer

Part Number: 208109-100

Model: PrintPad

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Printer Type

Mobile

Printing Technology

Direct Thermal

Print Resolution

203 dpi

Product Description:

Datamax-O'Neil PrintPAD Portable Thermal Label Printer - Monochrome - 2 in/s Mono - 203 dpi - Serial

Explore all O'Neil PrintPad Portable Barcode Printers

Add to Quote

O'Neil 208109-100 Portable Barcode Printer

Overview

Full specifications (PDF)

O'Neil PrintPad Portable Barcode Printer Model Overview

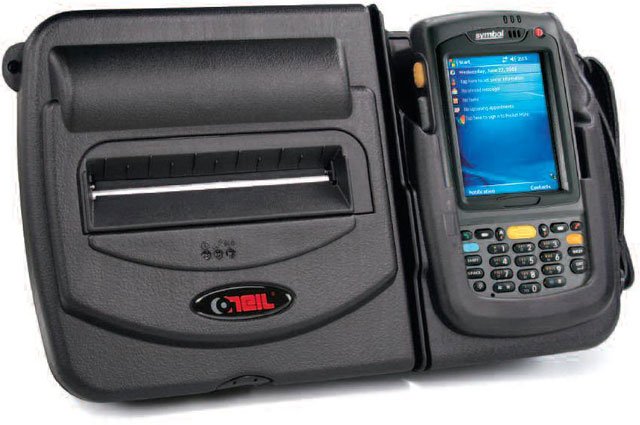

Integrated Printing Systems combine O'Neil's PrintPad with the industry's leading mobile computers to provide the ultimate integration and portability for users in route accounting, direct store delivery (DSD), and other field. This innovative onepiece printer system combines an enhanced 4" wide thermal printer, the 4te, with an embedded communications charging cradle designed for use in a number of different applications with the Motorola MC70 handheld computer.

O'Neil 208109-100 Portable Barcode Printer Overview

The PrintPAD portable printer works in the most rugged environments to enable the production of hardcopy back-ups of digital information and signature printing, as well as the generation of receipts, tickets and labels for a variety of applications. PrintPAD Portable Label Printer is compatible with MC 9000.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

2 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.41"

Features:

Magnetic Stripe Reader

Print Technology:

Direct Thermal /Thermal Transfer

Memory

Standard Memory:

1 MB

Flash Memory:

4 MB

Interfaces/Ports

Serial Port:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Media Types & Handling

Media Type:

Direct Thermal Paper
Label

Media Size:

4.40"
Custom Size - 4.40"

Maximum Roll Diameter:

2.25"

Battery Information

Number of Batteries Supported:

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Capacity:

2200 mAh

Physical Characteristics

Form Factor:

Portable

Miscellaneous

Package Contents:

PrintPAD Portable Label Printer
2 x Lithium-Ion battery
DEX Cable

Additional Information:

Dex Communication Port
Cradle: 9000 interface connector
Graphics: Supports storage of graphics/logos in Flash memory and transient "print once" graphics

Platform Supported:

Certifications & Standards:
