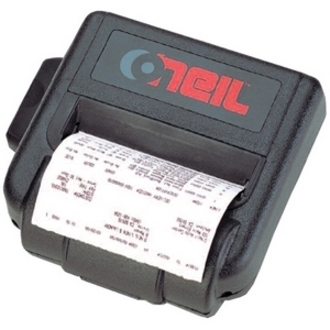

Name: O'Neil 200232-000 Portable Barcode Printer
Brand: O'Neil
SKU: 8942

Datamax-O'Neil microFlash 4te Portable Barcode Printer Model Overview

The Datamax-O-Neil microFlash 4te is the flagship of the Datamax-O-Neil Family. For wireless applications, the new microFlash 4te enhanced version comes with Bluetooth and 802.11b/g connectivity options. It also boasts lighting fast processing, external LED status indicators, an external charging port and quick release battery clamps.

O'Neil 200232-000 Portable Barcode Printer Overview

Built with a rugged polyethylene plastic housing, the MF4t printer is light enough to be clipped to a belt yet tough enough to withstand multiple 6 foot (1.8 m) drops, which makes the MF4t ideal for mobile printing applications in many environments.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

2 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4"

Features:

Belt Clip

Print Technology:

Direct Thermal /Thermal Transfer

Memory

Standard Memory:

1 MB

Flash Memory:

4 MB

Interfaces/Ports

Serial Port:

Yes

Network & Communication

Wireless LAN:

Yes

Media Types & Handling

Media Type:

Thermal Paper
Label
Linerless

Maximum Roll Diameter:

2.25"

Battery Information

Battery Capacity:

2200 mAh

Physical Characteristics

Form Factor:

Portable

Miscellaneous

Package Contents:

microFlash 4t Portable Label Printer
2X-lithium Ion batteries

Additional Information:

Radio Ready
Battery 7.2V Lithium-Ion
Two batteries for a total of 4400 mAh
AC Adapter 12-15V, built-in spike and surge protection
Includes card slot for either a Symbol or Cisco 802.11b card
Cigarette Lighter Adapter 12-15V, built-in spike and surge protection

Platform Supported:

PC

Certifications & Standards:

FCC Class B
CE
C-Tick

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0649528706690

UPC: 649528706690

EAN: 0649528706690

UNSPSC: 43212108
