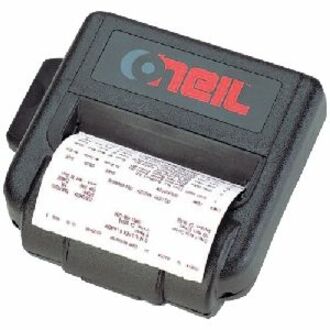

O'Neil 200115-000 Portable Barcode Printer

Part Number: 200115-000

Model: microFlash 4t

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Printer Type

Mobile

Printing Technology

Direct Thermal

Interface Options

Infrared (IrDA), Serial (RS-232)

Print Resolution

203 dpi

Product Description:

Datamax-O'Neil microFlash 4t Portable Thermal Label Printer - 203 dpi - Serial, Infrared

Explore all O'Neil microFlash 4t Portable Barcode Printers

Add to Quote

O'Neil 200115-000 Portable Barcode Printer

Overview

Full specifications (PDF)

O'Neil microFlash 4t Portable Barcode Printer Model Overview

The microFlash 4t, the Windows -compatible portable printer generates a full four-inch-wide (104mm) printout utilizing multiple fonts and sizes, barcodes, custom logos, graphics, and signatures. It operates easily using wireless input and flash memory for simple updates in the field. It activates when data is sent and automatically goes back to sleep when not in use. The microFlash4t also comes standard with IrDA-compliant wireless infrared communications technology. Data can be sent from a hand-held computer from up to three feet (one meter) away, without any cables to get tangled or damaged.

O'Neil 200115-000 Portable Barcode Printer Overview

Built with a rugged polyethylene plastic housing, the MF4t printer is light enough to be clipped to a belt yet tough enough to withstand multiple 6 foot (1.8 m) drops, which makes the MF4t ideal for mobile printing applications in many environments.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

2 in/s

Maximum Print Resolution:

203 dpi

Maximum Print Width:

Features:

Belt Clip

Memory

Standard Memory:

128 KB

Flash Memory:

512 KB

Interfaces/Ports

Infrared:

Yes

Serial Port:

Yes

Media Types & Handling

Media Type:

Thermal Paper
Label
Linerless

Maximum Roll Diameter:

2.25"

Maximum Label Width:

4.41"

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Capacity:

2200 mAh

Physical Characteristics

Form Factor:

Portable

Miscellaneous

Package Contents:

microFlash 4t Thermal Label Printer
Two Batteries
Cleaning Card
AC Adapter
Universal high capacity US Plug

Power Adapter Included:

Yes

Additional Information:

Battery 7.2V Lithium-Ion
Two batteries for a total of 4400 mAh
AC Adapter 12-15V, built-in spike and surge protection
Cigarette Lighter Adapter 12-15V, built-in spike and surge protection

Platform Supported:

Certifications & Standards:

FCC Class B
CE
C-Tick

Warranty

Limited Warranty:

2 Year

Item Numbers

UNSPSC: 43212108
