Maximum Extended Range:
7874.02 ft
Maximum Data Transfer Rate:
52.50 MB/s
NVT Parts Accessory Model Overview
Products and parts from NVT.

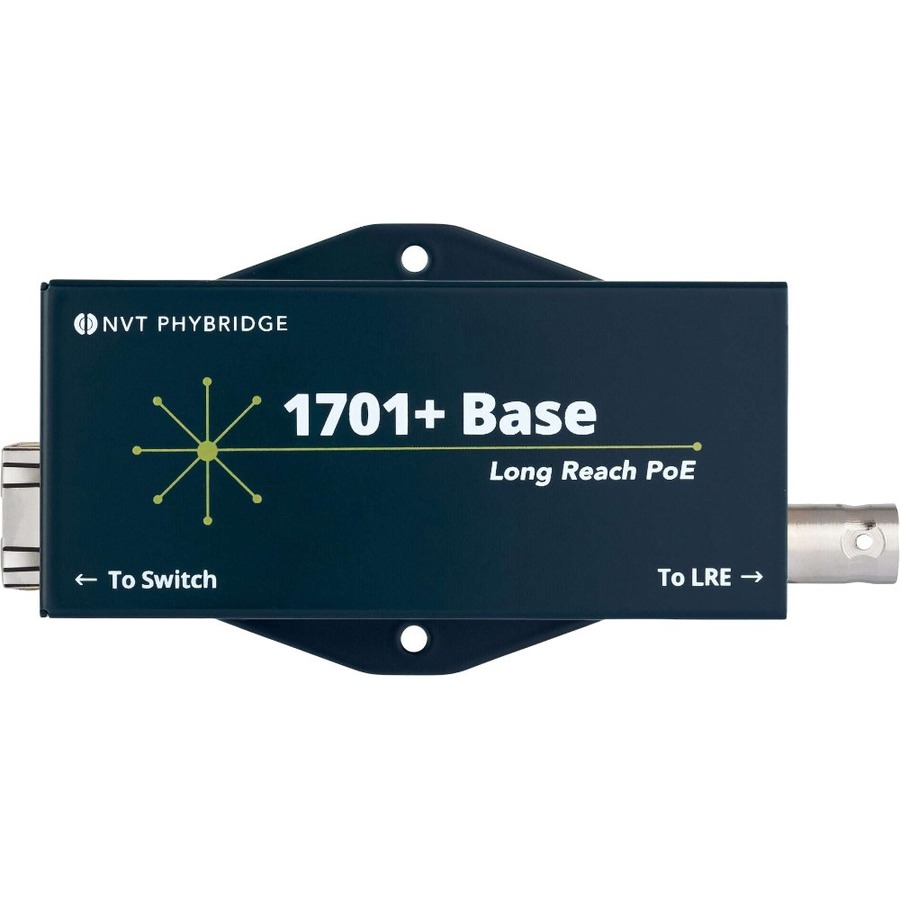

NVT NV-EC1701PLS-BSE Data Networking Overview
The NVT Phybridge 1701+ Extender Solution is designed to supercharge the downlink ports of a standard Ethernet switch, delivering up to 420Mbps and PoE+ over Coax, single pair UTP or 2 wire infrastructures with reach of up to 8,000ft (2.4km) on RG6. That's 24X the reach of standard Ethernet switches, thus removing the costs and disruptions associated with multiple IDF location requirements.
With the 1701+ Extender Solution, IP IoT devices can be connected to the existing Coax, UTP or 2 wire cabling infrastructure, delivering optimal performance while saving cost, time, and environmental e-waste. Furthermore, the cost savings realized by using the 1701+ Extender Solution can enable system designers to transfer budget and resources towards higher-quality applications and IEEE 802.3at/af compliant IoT devices, including IP-enabled phones, cameras, access control, speakers, and even facilities lighting.
Technical Information
Interfaces/Ports
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Power Description
Input Voltage:
55 V DC
Physical Characteristics
Height:
1.3"
Width:
2.1"
Length:
4.2"
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN:
0735890501381
UPC:
735890501381
EAN:
0735890501381
UNSPSC:
43222608
