Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
3000 ft
NVT Parts Accessory Model Overview
Products and parts from NVT.

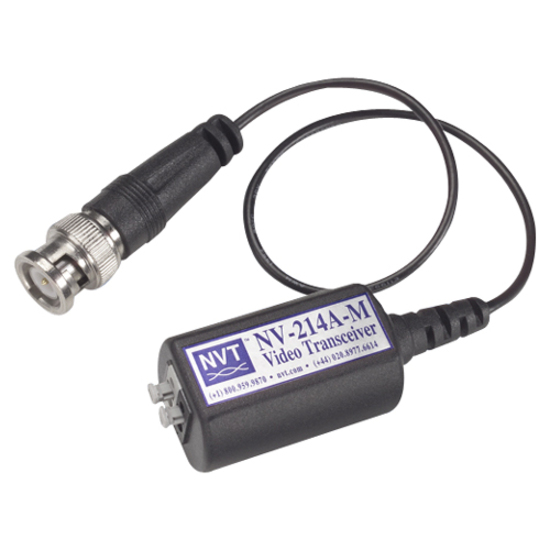

NVT NV-214A-M Wireless Transmitter / Receiver Overview
The NVT Model NV-214A-M Video Transceiver is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported.
This product is an improvement over NVT's popular NV-213A video transceiver. The passive NV-214A-M has a 9" mini-coax pigtail lead which allows in-camera enclosure mounting in most dome cameras and a greater number of mounting options in general at both ends of the system. It is capable of delivering a fully equalized signal to the DVR when used with any Active NVT Receiver, yet is compatible with all of NVT's passive products for applications under 750ft (225m). The NV-214A-M Video Transceiver also incorporates improved transient protection that eliminates the need for a ground screw
Technical Information
Interfaces/Ports
Network (RJ-45):
Yes
Composite Video In:
Yes
Composite Video Out:
Yes
Number of Network (RJ-45) Ports:
2
Media & Performance
Media Type Supported:
Twisted Pair
Physical Characteristics
Receiver Height:
1"
Receiver Width:
9"
Length:
1.8"
Receiver Weight (Approximate):
2 oz
Miscellaneous
Certifications & Standards:
- per ANSI/IEEE 587 C62.41
- CE
- UL
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
43222608
