NVT NV-1642 Products

Part Number: NV-1642
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wired
Number of Input Devices Supported
1
Number of Output Devices Supported
16
Maximum Operating Distance
2000 ft

Product Description:

  16-CHANNEL STUBEQ ACTIVE HUB Power SUPPLY INCL
Explore all NVT Parts Accessories
Add to Quote
NVT NV-1642 Products
NVT NV-1642 Products
NVT NV-1642 Products NVT NV-1642 Products

NVT Parts Accessory Model Overview

Products and parts from NVT.
NVT NV-1642 Products Overview

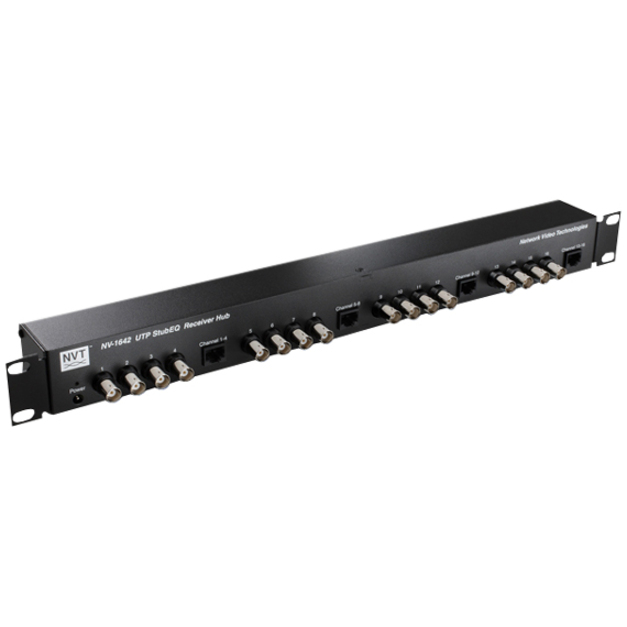

Employing NVT's latest generation StubEQTM technology, the NV-1642 is a 16-channel active (amplified) hub that allows the transmission of full-motion monochrome or color video for distances up to 2,000ft (600m) using Category 2 or better unshielded twisted-pair (UTP) wire. The receiver hub continuously and automatically conditions the video signal, compensating for cable attenuation, ground loops, and voltage transients, independent of video signal content.

The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. this allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "hum-bars" when ground-potential differences exist. With built-in transient protection, damaging voltage spikes are eliminated.

Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
16
Maximum Operating Distance:
2000 ft
Video
Video Signal Format:
  • NTSC
  • PAL
Interfaces/Ports
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
Twisted Pair
Power Description
Input Voltage:
12 V DC
Frequency:
60 Hz
Physical Characteristics
Receiver Height:
1.70"
Receiver Width:
17"
Receiver Depth:
1.88"
Form Factor:
  • Rack-mountable
  • Wall Mountable
  • Desktop
Receiver Weight (Approximate):
2.45 lb
Miscellaneous
Package Contents:
  • NV-1642 Video Console
  • Rack Mount Brackets
  • Wall Installations
  • Rubber Feet for Desk Application
  • 4 x RJ45 to Screw-Terminal
Certifications & Standards:
  • CE
  • UL
  • per ANSI/IEEE 587 C62.41
Item Numbers
UNSPSC: 52161521
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The NVT NV-1642 Products is also known as NVT-NV1642
