NVT NV-1613 Wireless Transmitter / Receiver

NVT - NV-1613 16-Channel Video Transceiver Hub
$1,025.11
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
NVT Parts Accessory Model Overview
Products and parts from NVT.
NVT NV-1613 Wireless Transmitter / Receiver Overview
Features:
  • Compact rack mountable 19" 1U high enclosure features 16-channels and is only 1.54" (40mm) deep
  • Use with any NVT passive transceiver or hub for full motion CCTV at distances up to 750ft (225m)
  • Use with any NVT DigitalEQTM Hub or active receiver as a rack-mountable passive transmitter for distances up to 3,000ft (1km)
  • Use with any NVT StubEQTM for distances up to 1,500ft (460m)
  • RJ45 video connectivity with optional NV-RJ45A RJ45 to-screw-terminal adaptors (included)
  • No power required
  • Exceptional interference rejection
  • Built-in transient protection
  • Supports "up-the coax" type control signal up to 750ft (225m)
  • Compatible with qualified UTP cameras
  • Limited lifetime warranty

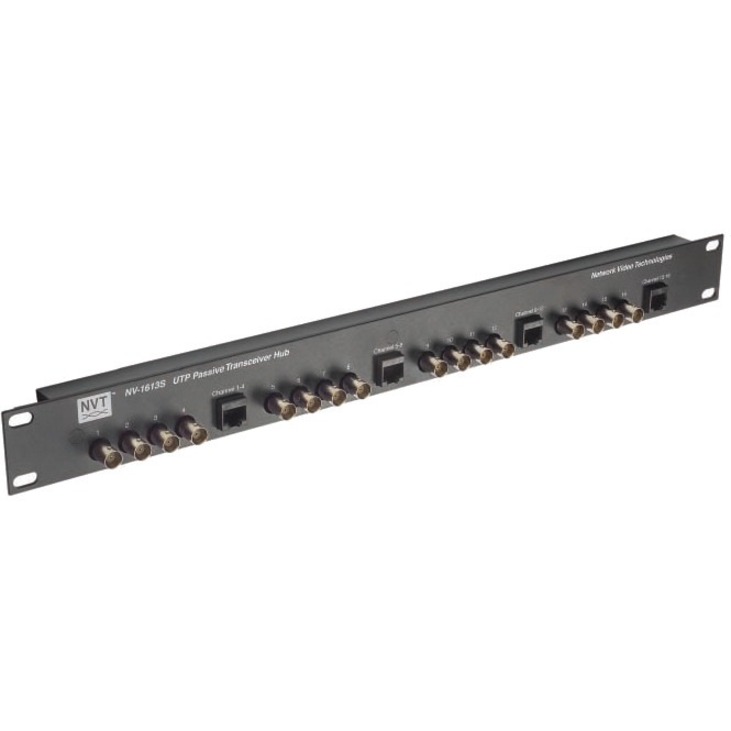

The NVT Model NV-1613S is a compact 16-channel passive transceiver hub that allows transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) cable. Baseband (composite) signals of any type are supported.

"Up-the-coax" type signal may be sent over the same wire pair at distances up to 750ft (225m).

The unparalleled interference rejection ability of the Model NV-1613S Hub allows video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. Perfect for larger CCTV installations where port density and camera number growth are prevalent. With built-in transient protection, damaging voltage spike problems are eliminated.
Technical Information
Connectivity Technology:
Wired
Maximum Operating Distance:
3280.84 ft
Interfaces/Ports
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
4
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 5
Physical Characteristics
Form Factor:
  • Rack-mountable
  • Wall Mountable
Miscellaneous
Package Contents:
  • 16-Channel Video Transceiver Hub
  • 4 x NV-RJ45A RJ45 to screw terminal adapters
  • Rack Mounting Screws and Screw Driver
Warranty
Limited Warranty:
Lifetime
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The NVT NV-1613 Wireless Transmitter / Receiver is also known as NVT-NV1613
