Application/Usage:
- Data Networking
- Optical Network
NVIDIA MMS1V00-WM Data Networking
Part Number:
MMS1V00-WM
Model:
Parts
NVIDIA Parts Data Networking Model Overview
Parts and products from NVIDIA.
NVIDIA MMS1V00-WM Data Networking Overview
MMS1V00-WM

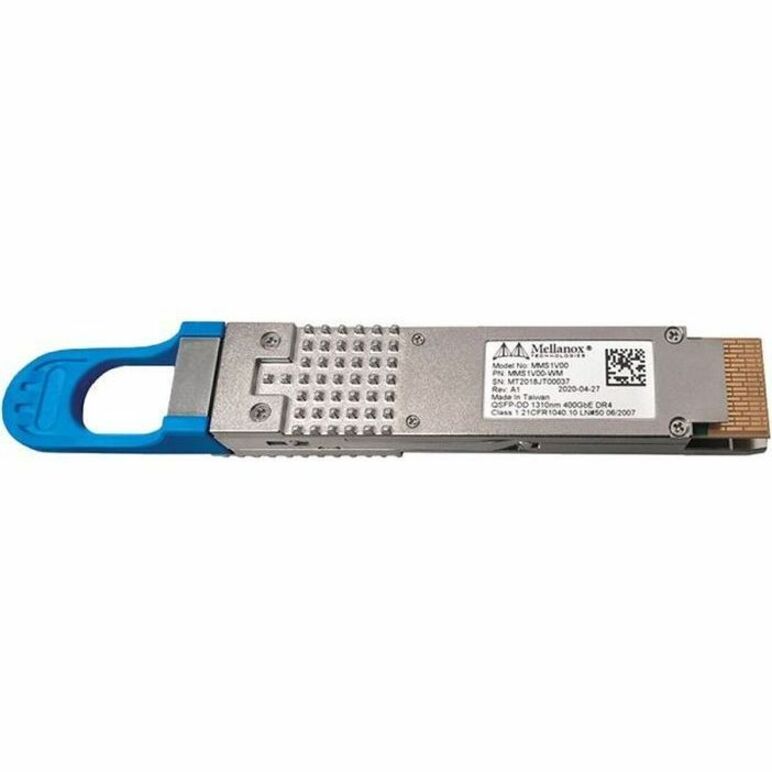

Mellanox® MMS1V00-WM transceiver is a single-mode, 4-channel (DR4), QSFP-DD optical transceiver designed for 400 Gigabit Ethernet (GbE) links on up to 500m of single mode fiber. MMS1V00-WM converts 8 input channels of 50Gb/s PAM4 electrical data to 4 channels of 100Gb/s PAM4 optical signals, using a nominal wavelength of 1310nm, for 400Gb/s optical transmission. The transceiver has a standard QSFP-DD connector on the electrical side towards the host system. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel single mode optical cable via a standard MPO connector.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
MPO
Interfaces/Ports Details:
1 x MPO 400GBase-DR4 Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Optic Cable Standard:
1310 nm
Fiber Mode Supported:
Single-mode
Ethernet Technology:
400 Gigabit Ethernet
Network Technology:
400GBase-DR4
Maximum Distance Supported:
1640.42 ft
Maximum Data Transfer Rate:
400 Gbit/s
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
EU RoHS
Item Numbers
UNSPSC:
43201553
