Application/Usage:
- Optical Network
- Data Networking
NVIDIA MMA2P00-AS Data Networking
Part Number:
MMA2P00-AS
Model:
Parts
NVIDIA Parts Data Networking Model Overview
Parts and products from NVIDIA.
NVIDIA MMA2P00-AS Data Networking Overview

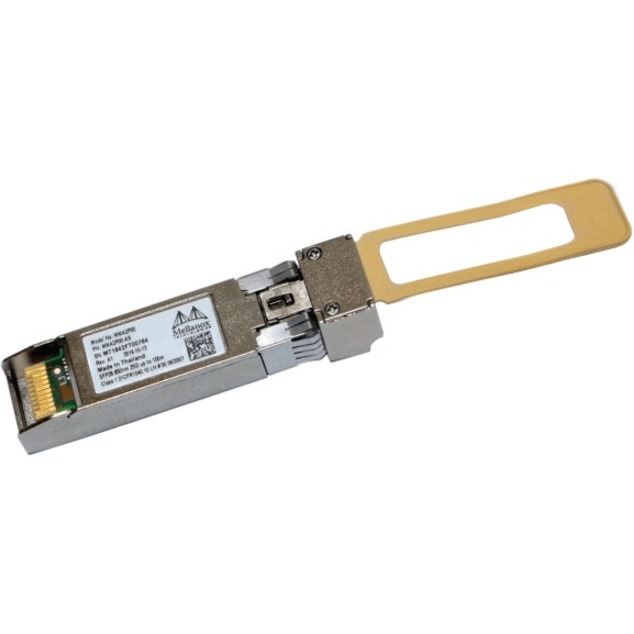

Mellanox® MMA2P00-AS is a, pluggable SFP28 optical transceiver, designed for use in 25Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over a pair of multi-mode (MMF) fibers, using a nominal wavelength of 850 nm, and is SFF-8402 compliant.
The MMA2P00-AS has a standard SFP28 connector on the electrical side towards the host system supporting CAUI-1. The optical interface is composed of two optical channels/fibers, one in each direction, intended for a multi-mode optical cable connected via standard LC connectors. Each channel/fiber operates at signaling rates up to 25.78125 GBd.
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
The MMA2P00-AS has a standard SFP28 connector on the electrical side towards the host system supporting CAUI-1. The optical interface is composed of two optical channels/fibers, one in each direction, intended for a multi-mode optical cable connected via standard LC connectors. Each channel/fiber operates at signaling rates up to 25.78125 GBd.
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Multi-mode
Ethernet Technology:
25 Gigabit Ethernet
Physical Characteristics
Form Factor:
Hot-pluggable
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0088698559987, 4943783139252, 4943783147103, 7290108487022
UPC:
088698559987
EAN:
0088698559987, 4943783139252, 4943783147103, 7290108487022
UNSPSC:
43201553
