Application/Usage:
- Data Networking
- Optical Network
NVIDIA MMA1T00-VS Data Networking
Part Number:
MMA1T00-VS
Model:
Parts
NVIDIA Parts Data Networking Model Overview
Parts and products from NVIDIA.
NVIDIA MMA1T00-VS Data Networking Overview

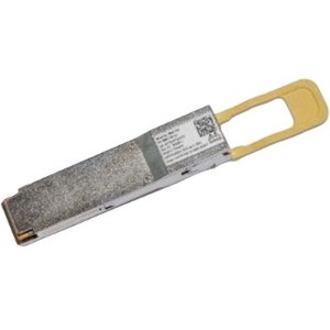

Mellanox® MMA1T00-VS transceiver is a 4-channel, pluggable, QSFP56, optical transceiver designed for use in 200GbE Ethernet applications. This module incorporates Mellanox integrated circuit technology in order to provide high performance. The transceiver operates over 4-lane parallel multi-mode fiber (MMF), using a nominal wavelength of 850nm, and is QSFP56 MSA compliant.
The transceiver has a standard SFF-8665 compliant QSFP56 connector on the electrical side towards the host system. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO-12 UPC connector. Each channel/fiber operates at signaling rates up to 26.5625 GBd. Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
The MMA1T00-VS transceiver has Digital Diagnostic Monitoring functions for supply voltage, temperature, laser bias current, optical transmit and receive levels with associated warning and alarm thresholds.
The MMA1T00-VS transceiver will work with a fiber plant as specified in the QSFP MSA standard.
The transceiver has a standard SFF-8665 compliant QSFP56 connector on the electrical side towards the host system. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO-12 UPC connector. Each channel/fiber operates at signaling rates up to 26.5625 GBd. Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
The MMA1T00-VS transceiver has Digital Diagnostic Monitoring functions for supply voltage, temperature, laser bias current, optical transmit and receive levels with associated warning and alarm thresholds.
The MMA1T00-VS transceiver will work with a fiber plant as specified in the QSFP MSA standard.
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
MPO
Interfaces/Ports Details:
1 x MPO 200GBase-SR4 Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Optic Cable Standard:
850 nm
Fiber Mode Supported:
Multi-mode
Ethernet Technology:
200 Gigabit Ethernet
Network Technology:
200GBase-SR4
Physical Characteristics
Form Factor:
Hot-pluggable
Miscellaneous
Compatibility:
MSA Compliant
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
7290108486438
EAN:
7290108486438
UNSPSC:
43201553
