Newland NVH300 – Barcode Scanner – Cable Only

Part Number: NLS-NVH300-H0
Model: NVH300-HD Corded Scanner
to get Free Ground Shipping on your order.
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$342.96

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
1D: EAN 8 EAN 13 UPC E UPC A Code128 Coupon UCC/EAN128 CodaBar I2Of5 Febraban ITF14 ITF6 Matrix 25 Code39 Code93 ISSN ISBN Industrial 25 Standard 25 China Post 25 Plessey Code 11 MSI Plessey UCC/EAN Composite GS1 Databar Code 49 Code 16K AIM 128 ISBT 128 2D: PDF417 Micro PDF417 QR Code Micro QR Code Aztec Data Matrix Chinese Sensible Code Maxicode
Image Sensor Type
CMOS

Product Description:

  Barcode Scanners, Newland NVH300, 2D Megapixel Industrial Scanner, High Density, Advanced Data Formatting, White/Red Illumination, Vibration, IP54, 1.8m Drop, includes 2m straight USB Cable, Industrial applications
Explore all Newland NVH300-HD Barcode Scanners
Add to Quote
Newland NLS-NVH300-H0 Barcode Scanner
Newland NLS-NVH300-H0 Barcode Scanner
Newland NLS-NVH300-H0 Barcode Scanner
Newland NLS-NVH300-H0 Barcode Scanner
Newland NLS-NVH300-H0 Barcode Scanner
Newland NLS-NVH300-H0 Barcode Scanner
Newland NLS-NVH300-H0 Barcode Scanner Newland NLS-NVH300-H0 Barcode Scanner Newland NLS-NVH300-H0 Barcode Scanner Newland NLS-NVH300-H0 Barcode Scanner Newland NLS-NVH300-H0 Barcode Scanner Newland NLS-NVH300-H0 Barcode Scanner
Full specifications (PDF)

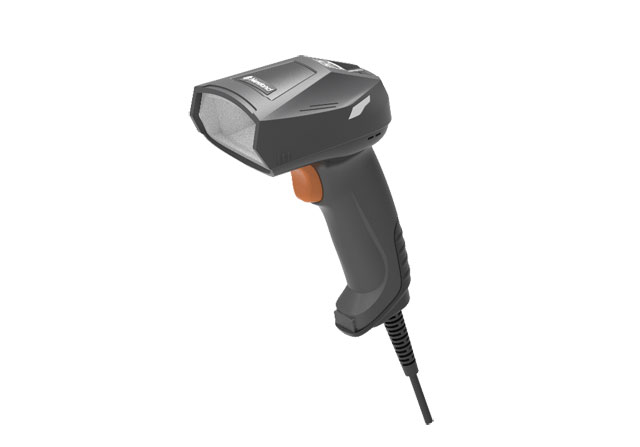

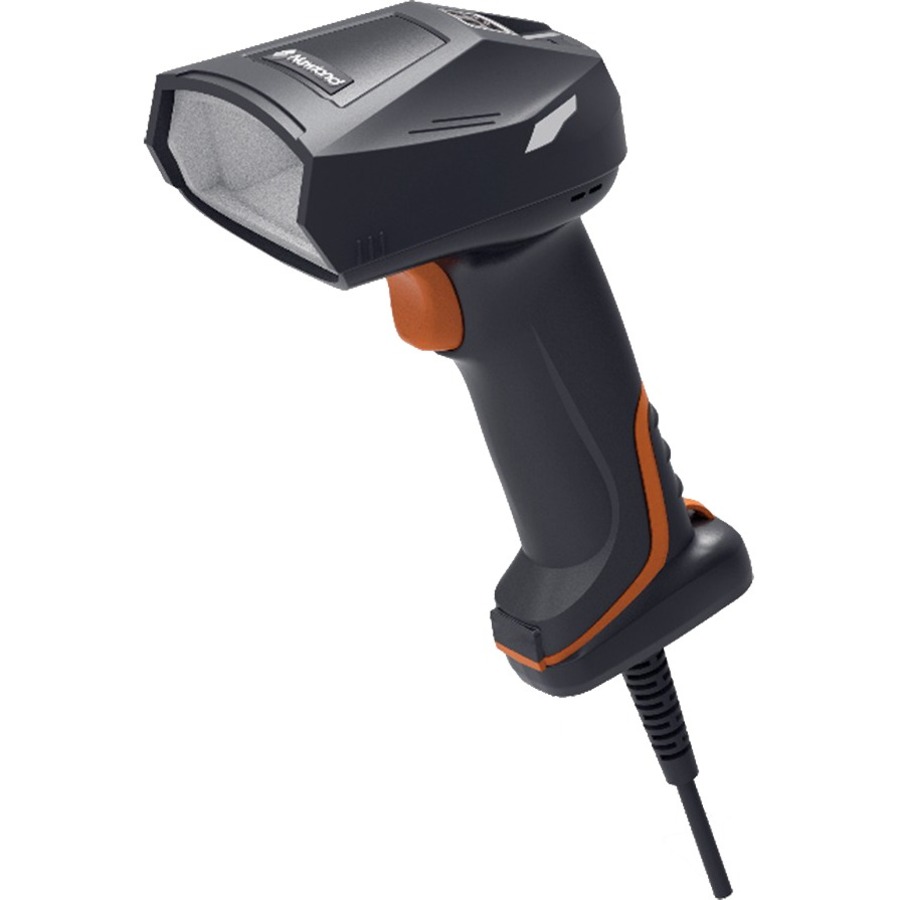

Newland NVH300-HD Barcode Scanner Model Overview

The Newland NLS-NVH300-HD has a good decoding ability for DPM barcodes including radium carving and dotted barcodes thanks to the new generation of industrial decoding algorithm. Offer red diffuse ring lights, white direct illumination, and a comprehensive lighting system to fulfill the needs of complicated scanning codes with a variety of materials (such as reflectance), shapes (curved surfaces), backgrounds, and bar code colors. The Newland NLS-NVH300-HD has an intelligent light source selection feature that can automatically change the type of light source based on the effectiveness of the decoding process. Software also offers a wide range of setting functions. The Newland NVH300 is fortified on the inside and the outside thanks to its IP42-sealed, drop-resistant(1.8m), and non-moving housing.
Newland NLS-NVH300-H0 Barcode Scanner Overview

NVH300 Angler 2D CMOS Mega Pixel Industrial Handheld Reader, High Density, 2 Color LED, with 2 mtr. USB cable.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • EAN 8
  • EAN 13
  • UPC E
  • UPC A
  • Code128
  • Coupon
  • UCC/EAN128
  • CodaBar
  • I2Of5
  • Febraban
  • ITF14
  • ITF6
  • Matrix 25
  • Code39
  • Code93
  • ISSN
  • ISBN
  • Industrial 25
  • Standard 25
  • China Post 25
  • Plessey
  • Code 11
  • MSI Plessey
  • UCC/EAN Composite
  • GS1 Databar
  • Code 49
  • Code 16K
  • AIM 128
  • ISBT 128
2D:
  • PDF417
  • Micro PDF417
  • QR Code
  • Micro QR Code
  • Aztec
  • Data Matrix
  • Chinese Sensible Code
  • Maxicode

Image Sensor Type:
CMOS
Scanner Range:
High Density
Scanning Distance:
3.54"
Cable Type Included:
USB
Field of View (Horizontal):
41°
Field of View (Vertical):
31°
Reading Angle (Skew):
55°
Reading Angle (Roll):
360°
Drop Specification:
1.8m
Minimum Print Contrast:
20%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Interfaces/Ports
Host Interface:
  • USB
  • Serial
Physical Characteristics
Form Factor:
Handheld
Height:
7.3"
Width:
3"
Depth:
4.2"
Weight (Approximate):
8.29 oz
Miscellaneous
Package Contents:
  • NVH300 Angler HD
  • 2 Mtr. USB cable
Ingress Protection (IP) Rating:
IP64
Application/Usage:
Industrial
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
