Newland FM431 – Barcode Scanner
Full specifications (PDF)

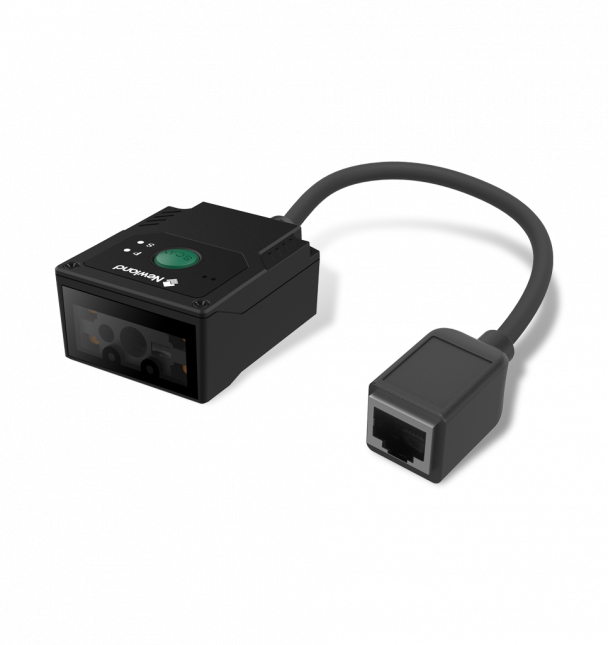

Newland FM431 Barcode Scanner Model Overview
Optimize high-speed barcode capture with the Newland FM431 Barracuda Pro Fixed-Mount Scanner. A 1280 × 800 megapixel CMOS sensor and high motion tolerance enable accurate reading of major 1D and 2D barcodes in fast-moving automated workflows. The scanner combines green LED and red laser aiming with white illumination and advanced exposure control for dependable performance indoors, outdoors and in direct sunlight. Its compact footprint, USB and RS-232 interfaces, IP54 protection and wide operating temperature range simplify integration into demanding commercial and industrial systems.
Key Features:
- High-speed omnidirectional 1D and 2D barcode scanning
- 1280 × 800 megapixel CMOS image sensor
- High motion tolerance for moving barcode capture
- Green LED and red laser dual-aiming system
- Advanced exposure control for reflective barcodes
- Direct-sunlight operation up to 100,000 lux
- USB and RS-232 connectivity
- IP54 sealing and 1.5-meter drop resistance
Industries Served:
- Manufacturing
- Warehouse Automation
- Transportation and Logistics
- Postal and Parcel Processing
- Retail and Automated Vending
- Hospitality and Entertainment
Specifications:
- Scanner Type: Fixed-Mount 2D Barcode Scanner
- Decoding: Major 1D and 2D Symbologies
- Image Sensor: 1280 × 800 CMOS
- Aiming: Green LED and Red Laser
- Illumination: White LED
- Interfaces: USB and RS-232
- IP Rating: IP54
- Drop Resistance: 1.5 m / 4.9 ft
- Operating Temperature: -20 to 60 °C / -4 to 140 °F
- Weight: 56 g / 2.0 oz
- Standard Warranty: 5 Years
Recommended Accessories
Category
- Cables, Connectors, and Adapters (2)
- Fixed Barcode Scanner Accessories (2)
Recommended Accessories for Model: Newland NLS-FM431-SR-U Barcode Scanner
Top Cables, Connectors, and Adapters Purchased With Newland NLS-FM431-SR-U
-
Newland CBL026U Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Newland, USB Dust Proof cable, for FM100, FM420, FM430, FR2050, FM305X, FM3080, FR4050., All Newland orders under $1,000 will be charged a processing fee of $75.00.Ships from vendor — chat for lead time$18.52 -
Newland CBL025R Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Newland, RS232 Dust Proof cable, for FM100, FM420, FM430, FR2050, FM305X, FM3080, FR4050., All Newland orders under $1,000 will be charged a processing fee of $75.00.Ships from vendor — chat for lead time$32.41
Top Fixed Barcode Scanner Accessories Purchased With Newland NLS-FM431-SR-U
-
Newland CBL026U Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Newland, USB Dust Proof cable, for FM100, FM420, FM430, FR2050, FM305X, FM3080, FR4050., All Newland orders under $1,000 will be charged a processing fee of $75.00.Ships from vendor — chat for lead time$18.52
-
Newland CBL025R Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Newland, RS232 Dust Proof cable, for FM100, FM420, FM430, FR2050, FM305X, FM3080, FR4050., All Newland orders under $1,000 will be charged a processing fee of $75.00.Ships from vendor — chat for lead time$32.41
Frequently Asked Questions
What type of barcode scanner is the Newland NLS-FM431-SR-U?
The Newland NLS-FM431-SR-U is a 2D Mega Pixel Fixed Mounted Reader designed for stationary barcode scanning applications. It combines laser and LED aiming technology with white light and IR sensors to reliably capture both 1D and 2D barcodes in various lighting conditions. We offer this model as a complete solution with a 2-meter USB extension cable included.
How does the Newland FM431 connect to my system?
The NLS-FM431-SR-U connects via USB through the included 2-meter USB extension cable, making it compatible with standard computer systems and point-of-sale setups. This wired connection ensures stable, continuous power and data transmission without the need for batteries or wireless configuration. Contact us today if you need assistance determining the best mounting and connection setup for your facility.
What imaging technology does the NLS-FM431-SR-U use?
The Newland FM431 features 2D Mega Pixel imaging technology that captures high-resolution barcode data. It is equipped with both laser and LED aiming options, along with white light and IR sensors, enabling reliable scanning across different barcode types and environmental conditions. This multi-sensor approach makes it versatile for warehouse and logistics operations.
Is the Newland NLS-FM431-SR-U suitable for fixed-mount warehouse applications?
Yes, the NLS-FM431-SR-U is specifically designed as a fixed-mounted reader, making it ideal for conveyor lines, dock areas, and other stationary scanning points in warehouses and distribution centers. Its fixed installation allows for consistent scanning performance in high-volume, repetitive barcode capture scenarios. Visit barcodesinc.com to explore mounting options and integration support.
What comes included with the Newland FM431 scanner?
The Newland NLS-FM431-SR-U includes the fixed-mount scanner unit and a 2-meter USB extension cable for connectivity to your host system. This ready-to-deploy configuration minimizes setup time and allows for flexible mounting distances from your computer or POS terminal.
Are there any fees or special considerations when ordering the Newland NLS-FM431-SR-U from Barcodes Inc?
All Newland orders under $1,000 are subject to a $75.00 processing fee when purchased from us. Contact us today to discuss your order and confirm final pricing, or visit barcodesinc.com for current availability and shipping details.
