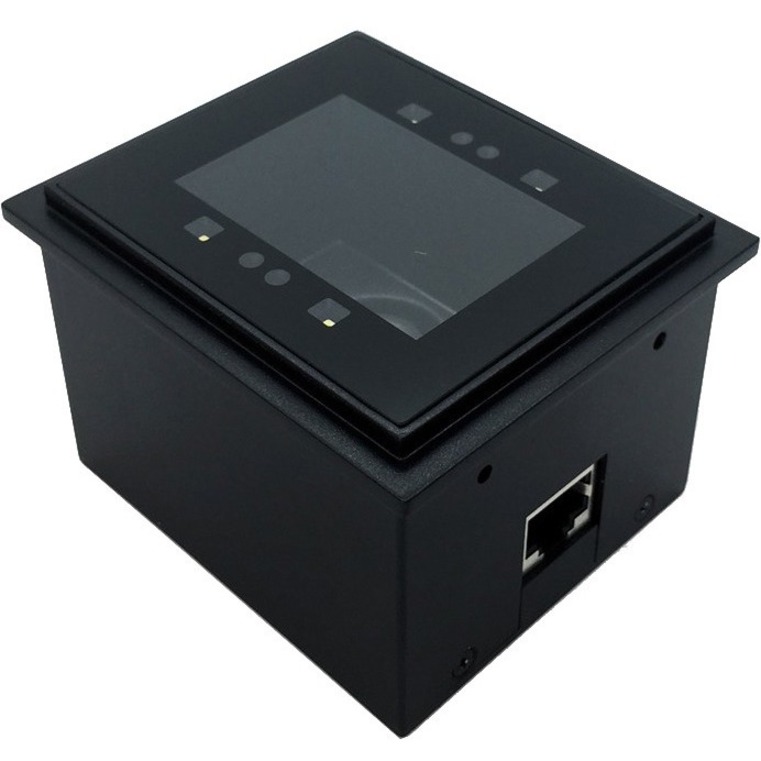

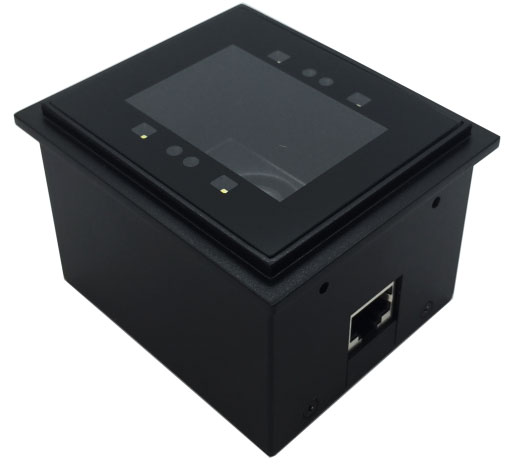

Newland NLS-FM3056-20 Fixed Barcode Scanner

Part Number: NLS-FM3056-20
Model: FM3056
to get Free Ground Shipping on your order.
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$251.54

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
1D: EAN-13 EAN-8 UPC-A UPC-E ISSN ISBN Codabar Code 128 (FNC1, FNC2, FNC3) Code 93 ITF-6 ITF-14 Interleaved 2 of 5 Industrial 2 of 5 Standard 2 of 5 Matrix 2 of 5 GS1 Databar (RSS-Expand, RSS-Limited, RSS-14) Code 39 Code 11 MSI-Plessey Plessey 2D: PDf417 Data matrix Qr code Chinese Sensible Code
Image Sensor Type
CMOS

Product Description:

  Fixed Scanners, Newland FM3056, 2D Fixed Mounted Scanner, 2m USB cable, Flush Scanning Windows 46.5mm x 31.5mm
Explore all Newland FM3056 Fixed Barcode Scanners
Add to Quote
Newland NLS-FM3056-20 Fixed Barcode Scanner
Newland NLS-FM3056-20 Fixed Barcode Scanner
Newland NLS-FM3056-20 Fixed Barcode Scanner
Newland NLS-FM3056-20 Fixed Barcode Scanner Newland NLS-FM3056-20 Fixed Barcode Scanner Newland NLS-FM3056-20 Fixed Barcode Scanner
Full specifications (PDF)

Newland FM3056 Fixed Barcode Scanner Model Overview

The sixth-generation UIMG technology from Newland enables the NLS-FM3056 scanner to read on-screen barcodes with substantial amounts of data with ease. The Newland NLS-FM3056 scanner's IR sensor displays greater sensitivity in activating it to scan barcodes as they are displayed, significantly enhancing throughput and productivity. The sturdy metal housing of the Newland NLS-FM3056 scanner makes it perfect for self-service applications. The scanner's incorporation of cutting-edge NLDC technology helps lower power consumption and increase gadget longevity.
Newland NLS-FM3056-20 Fixed Barcode Scanner Overview

FM30 Grouper II 2D CMOS Fixed Mounted Reader for kiosk integration with flush glass front, optimized to read from cell phone and paper. Including data formatting and USB cable.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • EAN-13
  • EAN-8
  • UPC-A
  • UPC-E
  • ISSN
  • ISBN
  • Codabar
  • Code 128 (FNC1, FNC2, FNC3)
  • Code 93
  • ITF-6
  • ITF-14
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Standard 2 of 5
  • Matrix 2 of 5
  • GS1 Databar (RSS-Expand, RSS-Limited, RSS-14)
  • Code 39
  • Code 11
  • MSI-Plessey
  • Plessey
2D:
  • PDf417
  • Data matrix
  • Qr code
  • Chinese Sensible Code
Image Sensor Type:
CMOS
Cable Type Included:
USB
Field of View (Horizontal):
75°
Field of View (Vertical):
50°
Reading Angle (Skew):
40°
Reading Angle (Pitch):
40°
Reading Angle (Roll):
360°
Minimum Print Contrast:
25%
Interfaces/Ports
Host Interface:
  • USB
  • Serial
Physical Characteristics
Form Factor:
Fixed Mount
Height:
2.1"
Width:
3.1"
Depth:
2.7"
Weight (Approximate):
5.93 oz
Miscellaneous
Application/Usage:
  • Hospitality
  • Retail
  • Transportation
Country of Origin:
China
Item Numbers
UNSPSC: 43211701
