Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
500 ft

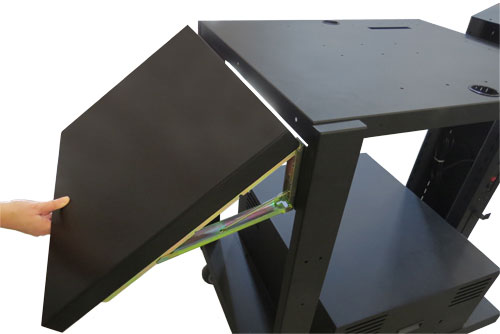

Newcastle Systems Accessories Accessory Model Overview
Newcastle Systems' line of accessories can be integrated with any product series in seconds to create a highly functional mobile workstation that is customized to your specific application.
Newcastle Systems B130 Accessory Overview

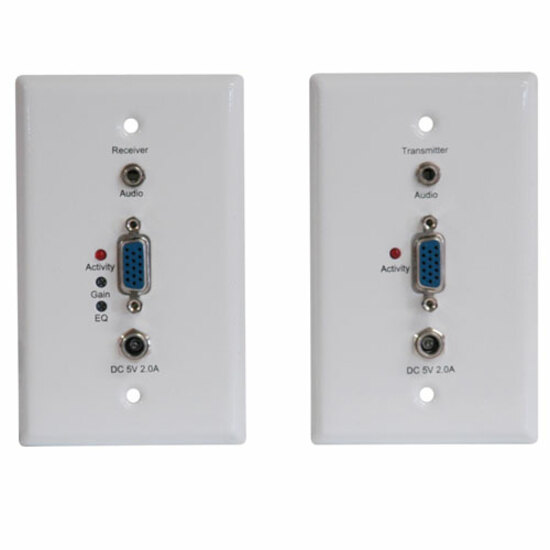

Tripp Lites B130-101A-WP Video Console/Extender Wallplate Kit allows you to connect a VGA monitor up to 500ft away from a computer using ordinary Cat5e/Cat6 cable. Kit includes a wallplate style transmitter and receiver. A "Y" cable is included for use at the computer to allow a local monitor to be attached. Ideal for digital signage situations, such as retail, schools, church, etc.
Technical Information
Video
Maximum Video Resolution:
1920 x 1440
Media & Performance
Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Category 6
Power Description
Input Voltage:
12.6 V DC
Physical Characteristics
Transmitter Height:
4.50"
Transmitter Width:
2.75"
Transmitter Depth:
1.10"
Transmitter Weight (Approximate):
3.20 oz
Miscellaneous
Package Contents:
- B130-101A-WP Video Console/Extender Wallplate Kit
- Y Cable
- 110 Punchdown Tool
- Screwdriver
- Owners Manual
- 2 x External Power Supply
Certifications & Standards:
- FCC
- CE
Environmentally Friendly:
Yes
Environmental Certification:
- WEEE
- RoHS
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0037332151841
UPC:
037332151841
EAN:
0037332151841
UNSPSC:
45111815
