Token Ring Port:
No
LRE Port:
No
Uplink Port:
No
Bypass:
No
Modular:
No
Management Port:
No
USB:
No
Stack Port:
No
Port/Expansion Slot Details:
3 x Expansion Slot
Interfaces/Ports
I/O Expansions
Number of Total Expansion Slots:
3
Expansion Slot Type:
Line Card
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Management:
- Out-of-band Management
- Web-based Management
- CLI
- Telnet
- SSH
- SNMP V1, V2, V3
- MIBs
- RSPAN
- RMON 1,2,3,9
- Syslog
Reliability
MTBF:
3393051 Hour
Power Description
PoE (RJ-45) Port:
No
Input Voltage:
- 120 V AC
- 230 V AC
Power Source:
Power Supply
Physical Characteristics
Compatible Rack Unit:
4U
Form Factor:
- Rack-mountable
- Rail-mountable
Height:
6.9"
Width:
17"
Depth:
17.4"
Weight (Approximate):
27.34 lb
Miscellaneous
Package Contents:

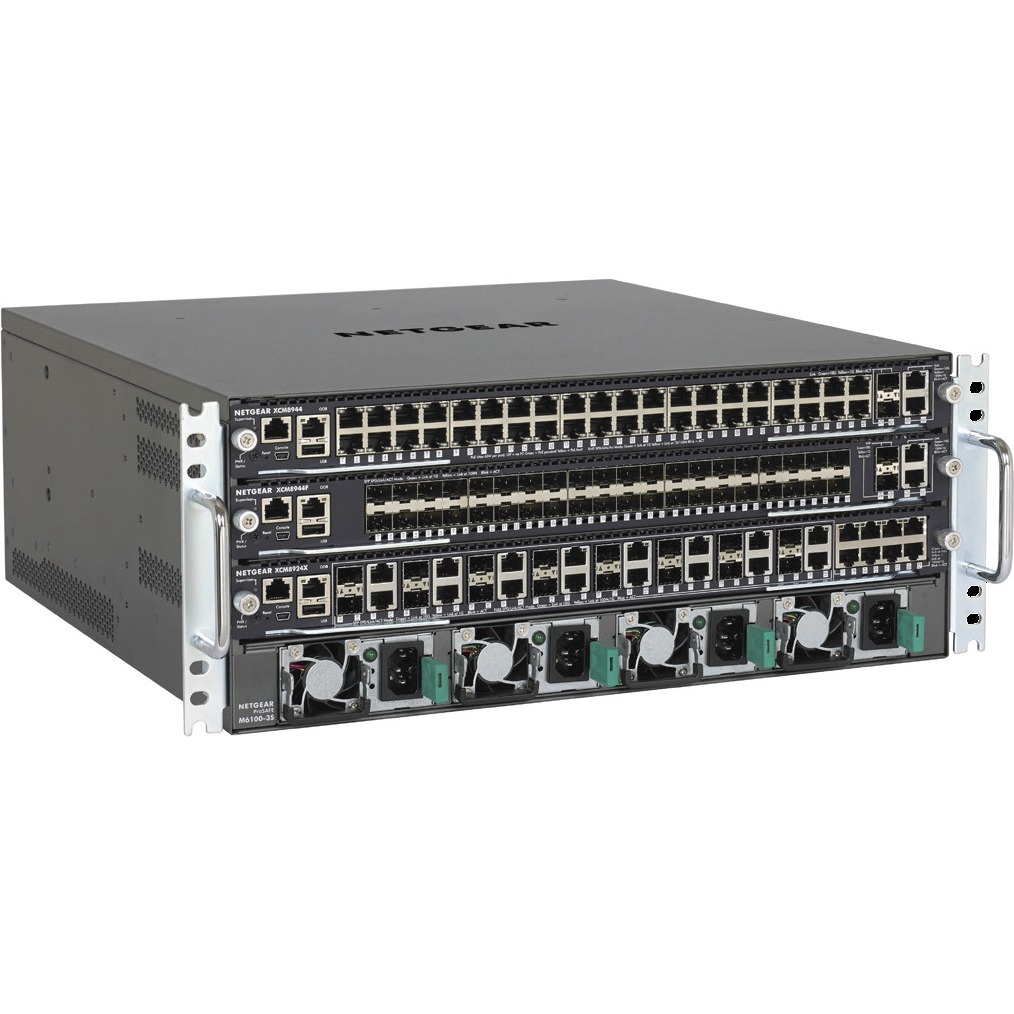

- M6100-3S Chassis Switch (XCM8903)
- 2-Post Rack Mount Kit
- 1 Pair of 4-Post Sliding Rails
- 2 x Blank Panels for Empty I/O Slots
- 3 x Power Supply Panels for Empty PSU Slots
- Installation Guide
- Resource CD (Technical Documentation, Manuals)
- C14 to C15 Power Cord (for PDUs and UPS)
- Australian Power Cord (AC Plug --> C15)
- Japanese Power Cord (AC Plug --> C15)
Certifications & Standards:
- CE mark, commercial
- FCC Part 15 Class A
- VCCI Class A
- Class A EN 55022
- (CISPR 22) Class A
- Class A C-Tick
- EN 50082-1
- EN 55024
- CE mark, commercial
- CSA certifid (CSA 22.2 #950)
- UL listed (UL 1950)/cUL IEC 950/EN 60950
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0014013307292, 0606449102499, 5415247021575
UPC:
014013307292, 606449102499
EAN:
0014013307292, 0606449102499, 5415247021575
UNSPSC:
43222612
