RJ45 Straight-through Wiring Serial Console Cable to DB9
USB Type-C to USB-A 2.0 Console Cable
Rubber Caps for the SFP/SFP+ Sockets
Rubber Footpads for Tabletop Installation
Installation Guide
2 x Regular (Short) Brackets and Screws for Two-post Rack Mount (for Front Posts) Allowing for Mounting with Ports on the Back, or Ports On the Front of the Rack
2 x Longer Brackets for Two-post Rack Mount (for Front Posts) Recessing the Switch by 2 Inches in Order to Make Room for the Cabling
Country of Origin:
Thailand
Environmentally Friendly:
Yes
Energy Efficiency Compliance:
Energy-related Products Directive (ErP)
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

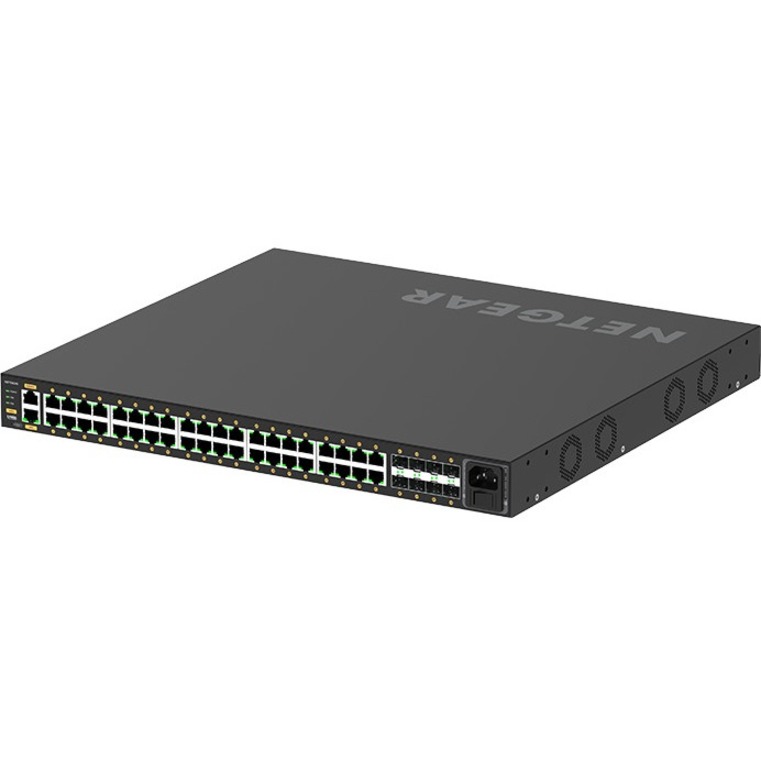

What are the port configurations available on the NETGEAR GSM4248PX-100NAS switch?
The NETGEAR GSM4248PX-100NAS features 48 RJ-45 autosensing 10/100/1000 ports and 4 SFP+ 1/10GbE ports. Additionally, it includes 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3at PoE+) with 4 additional SFP+ 1/10GbE ports, providing flexible connectivity options for enterprise environments. The switch also includes a dual-personality serial console port for management access.
What is the PoE power budget of the NETGEAR GSM4248PX-100NAS?
The NETGEAR GSM4248PX-100NAS delivers a 960 W PoE budget, enabling you to power numerous PoE+ devices across the 24 dedicated PoE+ ports. This substantial power allocation is ideal for powering access points, IP cameras, and other networked devices in warehouse and logistics environments.
What are the physical dimensions and rack mounting specifications?
The NETGEAR GSM4248PX-100NAS is a 1U rack-mountable switch measuring 17.42 inches wide by 7.88 to 11.98 inches deep (depending on configuration) and 1.73 inches high. It can be deployed in standard 19-inch server racks or used in tabletop configurations, making it suitable for both data center and distributed network environments.
What processor and memory specifications does this switch have?
The NETGEAR GSM4248PX-100NAS is powered by a Dual Core ARM Cortex A9 processor running at 1016 MHz with 1 GB DDR3 SDRAM and 4 GB eMMC storage. It includes a 12.38 MB packet buffer (4.5 MB ingress / 7.875 MB egress) to handle high-speed data switching and traffic management across all ports.
Is the NETGEAR GSM4248PX-100NAS suitable for mixed copper and fiber deployments?
Yes, the NETGEAR GSM4248PX-100NAS supports both optical fiber and twisted pair connectivity. The combination of RJ-45 copper ports and SFP+ fiber ports allows you to build hybrid networks that leverage both connection types for uplinks, long-distance runs, and equipment interconnection.
What warranty coverage does the NETGEAR GSM4248PX-100NAS include?
The NETGEAR GSM4248PX-100NAS comes with a Lifetime Limited Warranty, providing long-term coverage and support for your networking investment. Contact us today to learn more about warranty details and our comprehensive support options available from Barcodes Inc.
The NETGEAR GSM4248PX-100NAS Data Networking is also known as
NTG-GSM4248PX100NAS
