RJ45 Straight-through Wiring Serial Console Cable to DB9
USB Type-C to USB-A 2.0 Console Cable
Rubber Caps for the SFP/SFP+ Sockets
Rubber Footpads for Tabletop Installation
Installation Guide
2 x Regular (Short) Brackets and Screws for Two-post Rack Mount (for Front Posts) Allowing for Mounting with Ports on the Back, or Ports On the Front of the Rack
2 x Longer Brackets for Two-post Rack Mount (for Front Posts) Recessing the Switch by 2 Inches in Order to Make Room for the Cabling
Country of Origin:
Thailand
Environmentally Friendly:
Yes
Energy Efficiency Compliance:
Energy-related Products Directive (ErP)
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

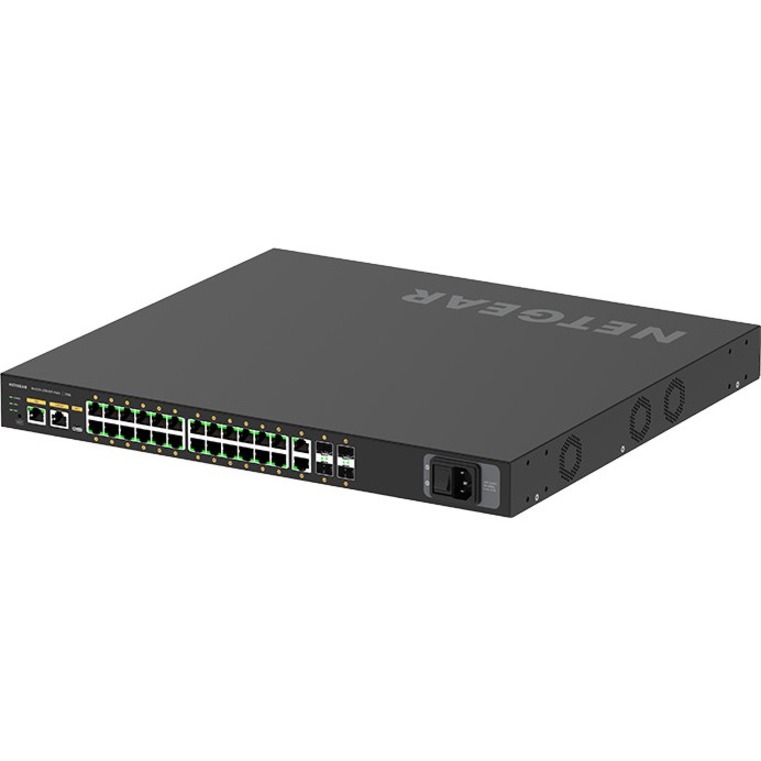

How many PoE+ ports does the NETGEAR GSM4230P-100NAS switch have?
The NETGEAR GSM4230P-100NAS features 24 RJ-45 autosensing 10/100/1000 PoE+ ports that support IEEE 802.3at PoE+ connectivity. These ports enable you to power and network devices like IP cameras, wireless access points, and VoIP phones simultaneously, with a total PoE budget of 300W available across the switch.
What uplink connectivity options are available on this switch?
This switch provides 4 SFP+ 1/10GbE ports for high-speed uplink connectivity using optical fiber connections. These PHY-less SFP+ slots allow you to extend your network backbone with 10 Gigabit Ethernet speeds, making it ideal for connecting to core network infrastructure or aggregating traffic from multiple access switches.
Is the NETGEAR GSM4230P-100NAS suitable for rack-mount installation?
Yes, the GSM4230P-100NAS is designed as a 1U rack-mountable switch with dimensions of 17.42 inches wide by 7.88 inches deep by 1.73 inches high. It can be installed in standard 19-inch server racks or used in a table-top configuration, making it flexible for both data center and distributed network deployments.
What is the switching capacity and forwarding performance of this managed switch?
The NETGEAR GSM4230P-100NAS delivers 56 Gbps switching capacity with a forwarding rate of 41.67 Mpps, enabling efficient handling of traffic across all 24 PoE+ ports and 4 SFP+ uplink ports. This performance level is suitable for mid-sized warehouse and logistics environments requiring reliable Layer 3 managed switching.
What management capabilities does this switch offer?
The GSM4230P-100NAS is a Layer 3 managed switch that supports comprehensive network management through its dual-personality console port (RJ-45 or USB micro-B). The switch includes 1 GB DDR3 SDRAM and 4 GB eMMC storage, enabling local configuration and monitoring of network traffic, VLAN management, and advanced switching features.
What power specifications should I consider when deploying this switch?
The NETGEAR GSM4230P-100NAS has a system power consumption of 35.80W and provides a 300W PoE budget for connected devices. The switch supports standard AC input (100-240V, 50-60Hz), and with its compact 1U form factor and manageable power draw, it's well-suited for integration into warehouse and logistics network infrastructure. Contact us today to discuss your power and deployment requirements.
The NETGEAR GSM4230P-100NAS Data Networking is also known as
NTG-GSM4230P100NAS
