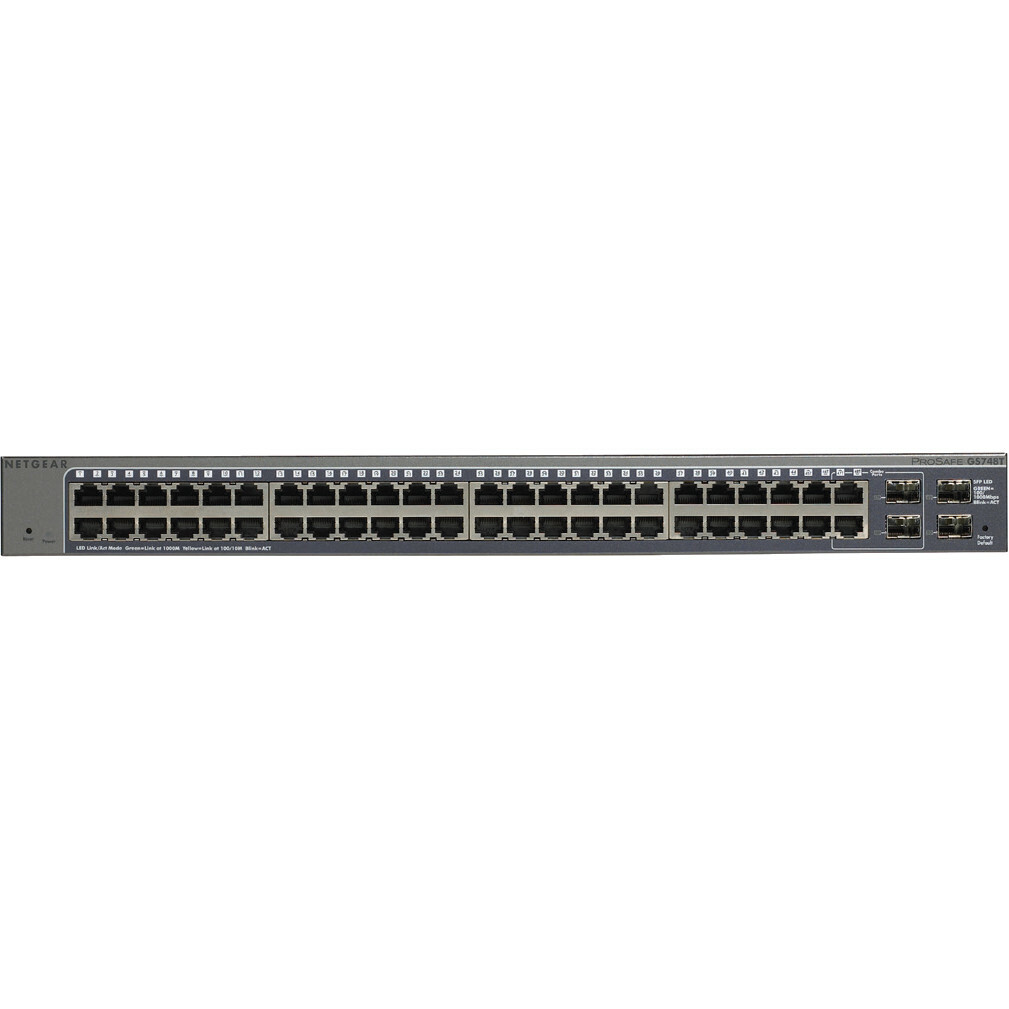

How many ports does the NETGEAR GS748T switch have?
The NETGEAR GS748T-500NAS features 48 RJ-45 autosensing 10/100/1000 Gigabit ports (IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, and IEEE 802.3ab 1000BASE-T), plus 4 SFP+ 1/10GbE ports for high-speed uplink connectivity. This gives you flexible port options for both standard Ethernet connections and fiber-based network expansion. Contact us today to find the right configuration for your warehouse or data center needs.
Is the NETGEAR GS748T suitable for rack-mounted deployment?
Yes, the NETGEAR GS748T-500NAS is designed as a 1U rack-mountable switch with dimensions of 17.42 inches wide by 7.88 inches deep by 1.73 inches high, making it ideal for standard server rack installations. Its compact 1U form factor allows efficient use of rack space in enterprise networking environments. We offer this switch for organizations looking to maximize data center density.
What management features does the NETGEAR GS748T provide?
The NETGEAR GS748T supports advanced Layer 2 management capabilities including VLAN support, port mirroring for traffic analysis, IGMP snooping for multicast stream management, and RMON (Remote Monitoring) for enhanced traffic monitoring and analysis. It includes a built-in Web UI for browser-based configuration and management access control for security. These features make it well-suited for managed enterprise networks requiring sophisticated traffic control.
What security features are built into the NETGEAR GS748T?
The switch includes IEEE 802.1X RADIUS authentication, DHCP snooping, IP-MAC-Port binding, IP source guard, ARP inspection, and port security with MAC address locking capabilities. It also supports STP root guard and BPDU guard to prevent spanning tree attacks, along with storm control for broadcast, unknown-unicast, and multicast traffic. These comprehensive security features help protect your network infrastructure from unauthorized access and traffic-based attacks.
What QoS capabilities does the NETGEAR GS748T offer?
The NETGEAR GS748T provides Quality of Service through 4 hardware queues with support for port-based, IEEE 802.1p priority-based, and IPv4/IPv6 IP DSCP-based classification. It supports both priority queuing and weighted round robin (WRR) scheduling, plus ACL support for up to 512 rules to allow, deny, or rate-limit traffic based on Layer 1-4 protocol fields. This enables prioritization of critical applications and bandwidth management across your network.
What processor and memory specifications does the NETGEAR GS748T have?
The NETGEAR GS748T-500NAS is powered by a Dual Core ARM Cortex A9 processor running at 1016 MHz with 1 GB DDR3 SDRAM and 4 GB eMMC storage. It includes a 12.38 MB packet buffer (4.5 MB ingress and 7.875 MB egress) to handle traffic bursts efficiently. These specifications support stable, high-performance switching for enterprise warehouse and logistics network environments. Visit barcodesinc.com to learn more about deployment options.
