Application/Usage:
- Data Networking
- Optical Network

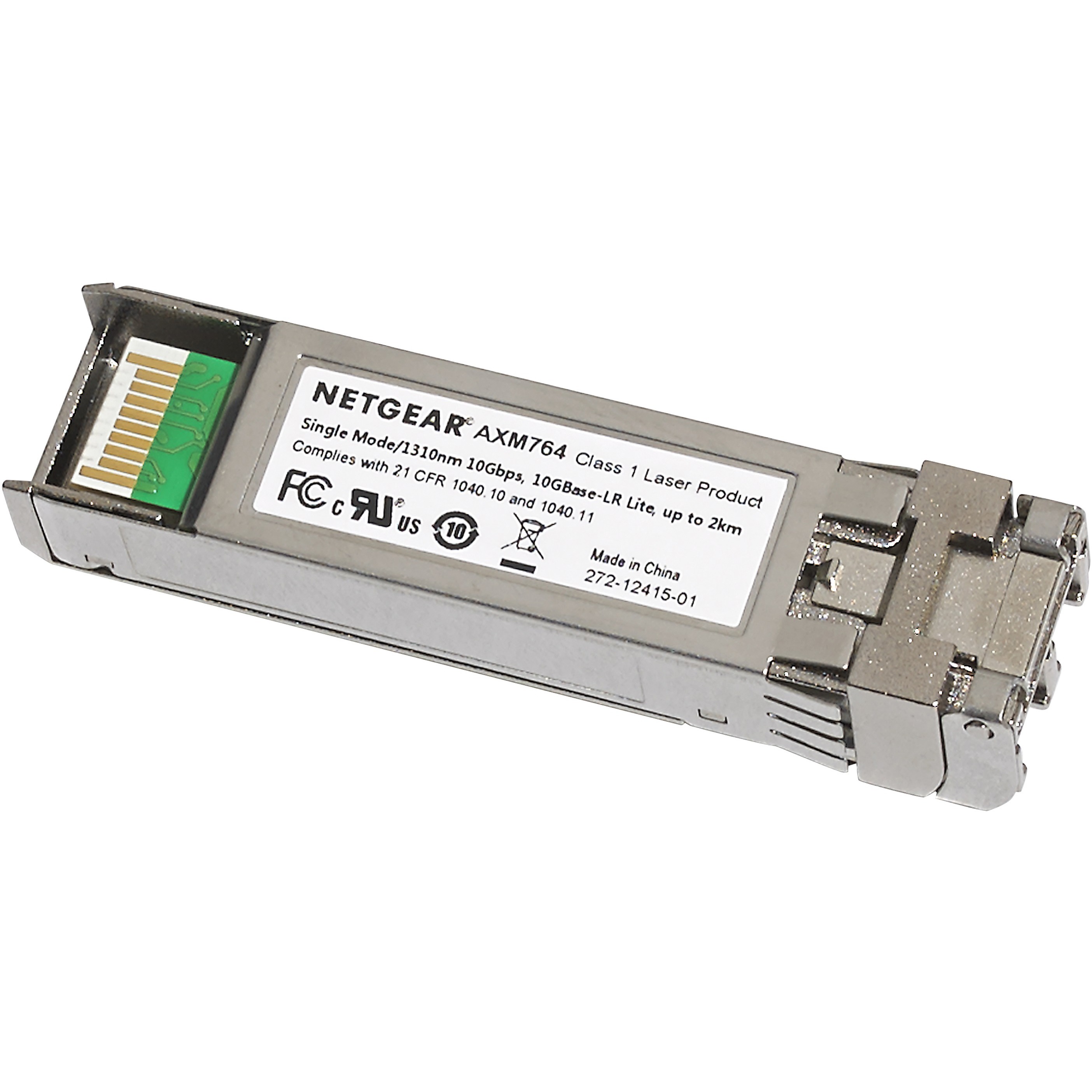

NETGEAR AXM764-10000S Data Networking
Part Number:
AXM764-10000S
Model:
Parts
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC 10GBase-LR Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Single-mode
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
10GBase-LR
Maximum Distance Supported:
2 km
Physical Characteristics
Form Factor:
Hot-pluggable
Height:
0.5"
Width:
0.6"
Depth:
2.2"
Weight (Approximate):
0.04 lb
Miscellaneous
Country of Origin:
China
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0606449108767, 0818240460429
UPC:
606449108767, 818240460429
EAN:
0606449108767, 0818240460429
UNSPSC:
43201404
Frequently Asked Questions
What is the NETGEAR AXM764-10000S and what is it used for?
The NETGEAR AXM764-10000S is a ProSAFE 10 Gigabit Base-LR Lite SFP+ Single Mode Module designed for high-speed data networking applications. This optical transceiver module enables 10 Gigabit Ethernet connectivity over long-distance single-mode fiber, making it ideal for enterprise data center and campus network infrastructure. We offer this module as part of our comprehensive networking equipment portfolio available from barcodesinc.com.
What transmission distance does the NETGEAR AXM764-10000S support?
The NETGEAR AXM764-10000S is a Base-LR (Long Range) module that supports transmission distances up to 10 kilometers on single-mode fiber. This extended range capability makes it suitable for connecting remote network segments and data centers across larger geographic areas. Contact us today to confirm compatibility with your specific network topology.
What type of fiber does the AXM764-10000S require?
The AXM764-10000S is designed for use with single-mode fiber (SMF), which is optimized for long-distance, high-speed optical transmission. Single-mode fiber provides superior performance for 10 Gigabit Ethernet links spanning kilometers compared to multimode alternatives. Our team can help you select the appropriate cabling and transceiver combinations for your infrastructure needs.
Is the NETGEAR AXM764-10000S compatible with existing network switches?
The AXM764-10000S is an SFP+ pluggable transceiver module, which means it is compatible with network equipment featuring SFP+ ports. This includes a wide range of enterprise switches and networking devices that support 10 Gigabit SFP+ connectivity. Visit barcodesinc.com or contact us today to verify compatibility with your specific switch model and existing infrastructure.
What wavelength does the AXM764-10000S operate at?
The NETGEAR AXM764-10000S operates at 1310 nanometers (nm), which is the standard wavelength for long-range single-mode fiber optic transmission. This wavelength is optimized for minimal signal loss and dispersion over extended distances, ensuring reliable 10 Gigabit performance. We stock this module and can provide technical guidance on wavelength compatibility with your network design.
What connector type does the AXM764-10000S use?
The NETGEAR AXM764-10000S features an LC connector, which is the industry-standard connector type for SFP+ optical modules. LC connectors provide reliable, secure connections and are widely used in data center and enterprise networking environments. Available from us at barcodesinc.com with full technical support for installation and integration.
The NETGEAR AXM764-10000S Data Networking is also known as
NTG-AXM76410000S
