NCR 2356-2208-0000 Products

Part Number: 2356-2208-0000
Model: Parts
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D
Barcode Symbology Supported
UPC/EAN SupplementalsCode 39Code 39 Full ASCIICode 39 TriOpticRSS VariantsUCC/EAN 128Code 128Code 128 Full ASCIICode 93CodabarInterleaved 2 of 5Discrete 2 of 5MSICode llIATAChinese 2 of 5UPC/EAN
Light Source
Laser

Product Description:

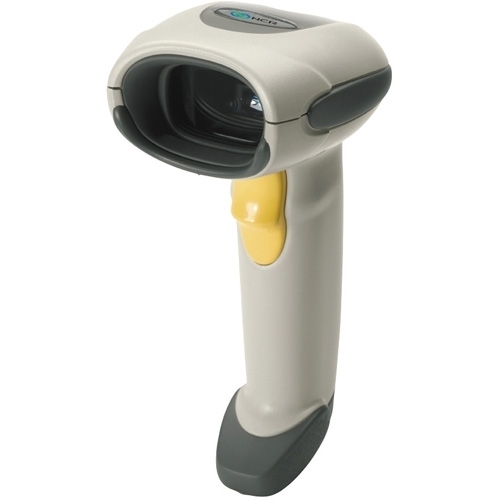

  NCR 2356-2208 Handheld Bar Code Reader - Cable Connectivity - 100 scan/s - 1D - Laser - Bi-directional - Multi-interface - White

NCR Parts Accessory Model Overview

Products and parts from NCR.
NCR 2356-2208-0000 Products Overview

The NCR 2356-2208 handheld scanner from NCR offers high performance scanning at a moderate price point. From the retail point-of-sale and backroom to the patient bedside or school book checkout, the NCR 2356-2208 provides fast, reliable scanning in a durable, lightweight form factor, delivering enhanced productivity and efficiency while reducing total cost of ownership (TCO).

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • RSS Variants
  • UCC/EAN 128
  • Code 128
  • Code 128 Full ASCII
  • Code 93
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Code ll
  • IATA
  • Chinese 2 of 5
  • UPC/EAN
Light Source:
Laser
Scan Rate:
100 scan/s
Depth of Field:
  • 0" - 17"@13mil - 100% UPC/EAN
Scan Pattern:
Bi-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
White
Height:
6"
Width:
2.5"
Depth:
3.3"
Weight (Approximate):
5.15 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • IBM 468X/469X

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
  • Taiwan EMC
  • Japan VCCI/MITI/Dentori.

Environmental:

  • RoHS directive 2002/95/EEC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43211701

Frequently Asked Questions

The Evolis C5201 features an even and flat surface that ensures flawless card movement under the print head, minimizing the risk of print head damage. These cards deliver vivid colors and well-defined barcodes, making them ideal for high-quality ID card printing. They are compliant with ISO CR-80 standards and come in dust-free sealed packaging to maintain print quality.

Yes, the Evolis C5201 cards are rewritable PVC cards, allowing you to print, erase, and reprint on the same card multiple times. This makes them a cost-effective solution for temporary ID badges, access cards, and other applications requiring card reuse.

The Evolis C5201 cards are 30mil thick, providing a standard card stock thickness that meets ISO CR-80 specifications for professional ID card applications.

Each package of Evolis C5201 cards contains 100 cards in dust-free sealed packaging to help ensure consistent print quality and protect the cards from contamination.

The Evolis C5201 cards are made of PVC (polyvinyl chloride), a durable plastic material that provides excellent printability and is suitable for long-term ID card applications. The black ink formulation is designed to work seamlessly with Evolis ID card printers.

Evolis cards are engineered with an even and flat surface specifically designed to minimize print head damage while delivering vivid colors and well-defined barcodes. Combined with ISO CR-80 compliance and dust-free sealed packaging, they provide reliable, high-quality output for professional ID card programs. We offer Evolis C5201 cards as part of our complete AIDC solutions—contact us today to find the right card stock for your printer.

The NCR 2356-2208-0000 Products is also known as NCR-235622080000 or 235622080000.
