NCR – Barcode Scanner – 1D

Part Number: 2356-1203-0000
Model: Parts
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

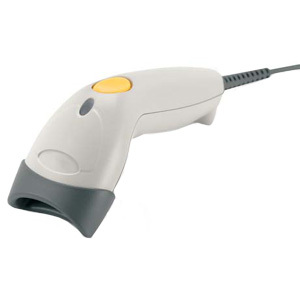

  NCR 2356-1203 Bar Code Reader - Cable Connectivity - 100 scan/s - 1D - Laser - Bi-directional - Multi-interface - White

Motorola LS1203 Barcode Scanner Model Overview

Zebra's LS1203 handheld scanner provides excellent value for everyday use. The LS1203 delivers high quality laser scanning, user-friendly ergonomics and durability at an affordable price. Designed to meet the needs of small businesses, the LS1203 provides the performance and features needed to significantly reduce data entry errors and boost productivity day in and day out in gift shops, boutiques, sporting goods, jewelers, video stores, florists and other small local retailers. Easy and comfortable to use, this high-value cost-effective scanner offers the reliability and investment protection that have made Zebra the global leader in handheld bar code scanning. Featuring multiple interfaces, including RS232, USB, KBW (keyboard wedge) in one scanner, the LS1203 simplifies installation and integration and its futureproof solution ensures compatibility with your host/POS today and tomorrow.
NCR 2356-1203-0000 Barcode Scanner Overview

The NCR 2356-1203 handheld scanner from Motorola delivers high quality laser scanning, user-friendly ergonomics and durability at an affordable price. Designed to meet the needs of small businesses, the NCR 2356-1203 provides the erformance and features needed to significantly reduce data entry errors and boost productivity day in and day out in gift shops, boutiques, sporting goods, jewelers, video stores, florists and other small local retailers. Easy and comfortable to use, this highvalue cost-effective scanner offers the reliability and investment protection that have made Motorola the global

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • RSS Variants
  • UCC/EAN 128
  • Code 128
  • Code 128 Full ASCII
  • Code 93
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Code ll
  • IATA
  • Chinese 2 of 5
  • UPC/EAN
Light Source:
Laser
Scan Rate:
100 scan/s
Depth of Field:
  • 0" - 8"@100% UPC/EAN
Scan Pattern:
Bi-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
White
Height:
2.4"
Width:
2.4"
Depth:
7.1"
Weight (Approximate):
4.30 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • Keyboard Wedge

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
  • Taiwan EMC
  • Japan VCCI/MITI/Dentori.
Item Numbers
UNSPSC: 43211701
The NCR 2356-1203-0000 Barcode Scanner is also known as NCR-235612030000
