Full specifications (PDF)
Modulation:
- ITU-T V.92
- ITU-T V.90
- ITU-T V.34

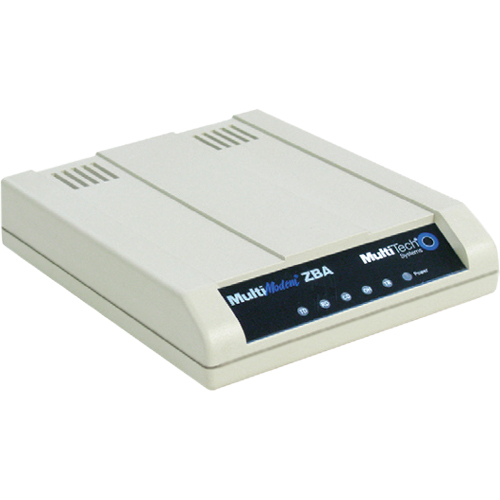

MultiTech MT9234ZBA-V-IEC Data Networking
Part Number:
MT9234ZBA-V-IEC
Model:
MultiModemZBA
MultiTech MultiModemZBA Accessory Model Overview
The MultiModemZBA desktop business modem is an ideal solution for small businesses, telecommuters, and SOHO users seeking reliable, high-speed data and fax capabilities. With features such as remote configuration, callback security, and support for dial-up and 2-wire leased lines, this modem stands out from basic options. It boasts approvals for use in various countries, ensuring global usability, while its plug-and-play operation for Windows simplifies setup. The multi-functional capabilities of the MultiModemZBA ensure seamless voice, data, and fax communication, making it a versatile choice for modern business needs.
Key Features
Specifications
Key Features
- V.90/56K download speeds from V.90 servers and 33.6K data rates for uploads.
- Class 1 and Class 2 fax support at 14.4K.
- Remote configuration for centralized management.
- Password-protected callback security with three configuration options.
- Global model suitable for worldwide shipping.
- Self-resetting lightning protection and a ten-year warranty.
Specifications
- Data Rates: 56K download speeds (V.90/K56flex), 33.6K upload.
- Fax Rates: 14.4K and below.
- Standards: V.90/K56flex, enhanced V.34; Error Correction: V.42; Compression: MNP® Class 5;
- Connectors: 2 RJ-11s & DB25.
- Operating System Support: Windows 95/98/Me/XP, NT/2000, SCO OpenServer, Linux.
- Physical Description: 4.3" w x 1.0" h x 5.7" d; Weight: 8 oz (227g).
- Certifications: CE Mark, FCC Part 15 Class B, cUL, EN60950.
MultiTech MT9234ZBA-V-IEC Data Networking Overview
The MultiModem ZBA V.92 business modem supports remote configuration, callback security, as well as dial-up and 2-wire leased line connections making it the modem of choice for business applications. With V.92, this modem provides an increase in upload speeds and quicker connect times than traditional V.90 modems. It offers V.34/33.6K fax and Error Correction Mode, that reduces fax transmission time by more than half when compared to traditional fax modems. In addition, all models are globally approved for use in many countries around the world. This means one model can ship virtually anywhere.
Technical Information
Interfaces/Ports
Host Interface:
Serial
Number of Phone Line (RJ-11) Ports:
2
Media & Performance
Fax Transmission Data Rate:
33.6 kbit/s
Modem Transmission Data Rate:
56 kbit/s
Physical Characteristics
Form Factor:
Desktop
Height:
1"
Width:
4.3"
Depth:
5.7"
Weight (Approximate):
8 oz
Miscellaneous
Package Contents:
- MultiModem ZBA MT9234ZBA-V Data/Fax/Voice Modem
- Power Supply
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0789407349812, 5293152984013
UPC:
789407349812
EAN:
0789407349812, 5293152984013
UNSPSC:
43222628
Get help from a Barcoding Expert!
The MultiTech MT9234ZBA-V-IEC Data Networking is also known as
MLT-MT9234ZBAVIEC
