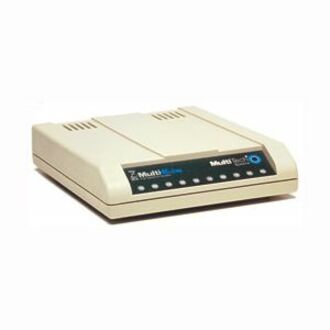

MultiTech MT5634ZBA-V92 Data Networking

Part Number: MT5634ZBA-V92
Model: MultiModemZBA
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Fax Technology
ITU-T V.34Class 2.1Class 1ITU V.17Group 3Class 2
Modulation
ITU-T V.90ITU-T V.92ITU-T V.34
Features
Modem-on-hold
Host Interface
Serial

Product Description:

  Multi-Tech MultiModemZBA Data/Fax Modem - Serial - 2 x RJ-11 Modem, 1 x DB-25 RS-232 Serial - 56 Kbps. All MultiTech products are Non-Cancelable and Non-Returnable.
Explore all MultiTech MultiModemZBA Accessories
Add to Quote
MultiTech MT5634ZBA-V92 Data Networking
MultiTech MT5634ZBA-V92 Data Networking
MultiTech MT5634ZBA-V92 Data Networking MultiTech MT5634ZBA-V92 Data Networking
Full specifications (PDF)

MultiTech MultiModemZBA Accessory Model Overview

The MultiModemZBA desktop business modem is an ideal solution for small businesses, telecommuters, and SOHO users seeking reliable, high-speed data and fax capabilities. With features such as remote configuration, callback security, and support for dial-up and 2-wire leased lines, this modem stands out from basic options. It boasts approvals for use in various countries, ensuring global usability, while its plug-and-play operation for Windows simplifies setup. The multi-functional capabilities of the MultiModemZBA ensure seamless voice, data, and fax communication, making it a versatile choice for modern business needs.
Key Features
  • V.90/56K download speeds from V.90 servers and 33.6K data rates for uploads.
  • Class 1 and Class 2 fax support at 14.4K.
  • Remote configuration for centralized management.
  • Password-protected callback security with three configuration options.
  • Global model suitable for worldwide shipping.
  • Self-resetting lightning protection and a ten-year warranty.

Specifications
  • Data Rates: 56K download speeds (V.90/K56flex), 33.6K upload.
  • Fax Rates: 14.4K and below.
  • Standards: V.90/K56flex, enhanced V.34; Error Correction: V.42; Compression: MNP® Class 5;
  • Connectors: 2 RJ-11s & DB25.
  • Operating System Support: Windows 95/98/Me/XP, NT/2000, SCO OpenServer, Linux.
  • Physical Description: 4.3" w x 1.0" h x 5.7" d; Weight: 8 oz (227g).
  • Certifications: CE Mark, FCC Part 15 Class B, cUL, EN60950.
MultiTech MT5634ZBA-V92 Data Networking Overview
The MultiModemZBA V.92 business modem supports remote configuration, callback security, as well as dial-up and 2-wire leased line connections making it the modem of choice for business applications. With V.92, this modem provides an increase in upload speeds and quicker connect times than traditional V.90 modems. It offers V.34/33.6K fax and Error Correction Mode that reduces fax transmission time by more than half when compared to traditional fax modems. In addition, it is approved for use in many countries around the world. This means one model can ship virtually anywhere.
Full specifications (PDF)
Technical Information
Fax Technology:
  • ITU-T V.34
  • Class 2.1
  • Class 1
  • ITU V.17
  • Group 3
  • Class 2
Modulation:
  • ITU-T V.90
  • ITU-T V.92
  • ITU-T V.34
Features:
Modem-on-hold
Interfaces/Ports
Host Interface:
Serial
Number of Modem (RJ-11) Ports:
2
Media & Performance
Fax Transmission Data Rate:
33.6 kbit/s
Modem Transmission Data Rate:
56 kbit/s
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Form Factor:
Desktop
Height:
1"
Width:
5.7"
Depth:
4.3"
Weight (Approximate):
8 oz
Miscellaneous
Additional Information:
  • Quick connect feature can cut the time required for a dial-up modem to "handshake" to an ISP or other connection in half
  • Modem-on-hold feature allows the modem to work in conjunction with call waiting provided by phone company
  • Error Correction Mode (ECM) provides fast and reliable fax transmissions
  • U.S. Caller ID reporting
  • Remote configuration for centralized setup and control
  • Callback Security for network security and reduced telephone toll charges
  • Global approvals in many countries for worldwide use
  • Flash memory for easy updates
Compatibility:
Operating System Support:
  • Windows 3.1x
  • Windows 95/98/Me/2000/XP
  • Windows NT
  • Linux
  • SCO OpenServer & others
Certifications & Standards:
  • FCC Parts 15B & 68
  • UL 1950
  • CE Mark
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0789407028625
UPC: 789407028625
EAN: 0789407028625
UNSPSC: 43222628
