MultiTech MT5634ZBA-GLOBAL-NAM Data Networking

Part Number: MT5634ZBA-GLOBAL-NAM
Model: MultiModemZBA
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Fax Technology
Class 1Class 2Group 3
Modulation
ITU-T V.34ITU-T V.90
Features
Voice Support
Host Interface
Serial

Product Description:

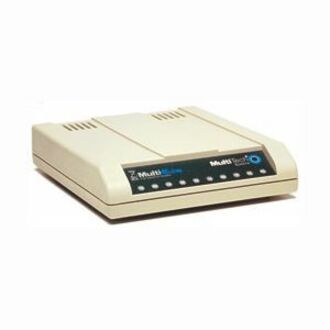

  Multi-Tech MultiModemZBA Data/Fax/Voice Modem - Serial - 2 x RJ-11 - 56 Kbps. All MultiTech products are Non-Cancelable and Non-Returnable.
Explore all MultiTech MultiModemZBA Accessories
Add to Quote
MultiTech MT5634ZBA-GLOBAL-NAM Data Networking
MultiTech MT5634ZBA-GLOBAL-NAM Data Networking
MultiTech MT5634ZBA-GLOBAL-NAM Data Networking MultiTech MT5634ZBA-GLOBAL-NAM Data Networking
Full specifications (PDF)

MultiTech MultiModemZBA Accessory Model Overview

The MultiModemZBA desktop business modem is an ideal solution for small businesses, telecommuters, and SOHO users seeking reliable, high-speed data and fax capabilities. With features such as remote configuration, callback security, and support for dial-up and 2-wire leased lines, this modem stands out from basic options. It boasts approvals for use in various countries, ensuring global usability, while its plug-and-play operation for Windows simplifies setup. The multi-functional capabilities of the MultiModemZBA ensure seamless voice, data, and fax communication, making it a versatile choice for modern business needs.
Key Features
  • V.90/56K download speeds from V.90 servers and 33.6K data rates for uploads.
  • Class 1 and Class 2 fax support at 14.4K.
  • Remote configuration for centralized management.
  • Password-protected callback security with three configuration options.
  • Global model suitable for worldwide shipping.
  • Self-resetting lightning protection and a ten-year warranty.

Specifications
  • Data Rates: 56K download speeds (V.90/K56flex), 33.6K upload.
  • Fax Rates: 14.4K and below.
  • Standards: V.90/K56flex, enhanced V.34; Error Correction: V.42; Compression: MNP® Class 5;
  • Connectors: 2 RJ-11s & DB25.
  • Operating System Support: Windows 95/98/Me/XP, NT/2000, SCO OpenServer, Linux.
  • Physical Description: 4.3" w x 1.0" h x 5.7" d; Weight: 8 oz (227g).
  • Certifications: CE Mark, FCC Part 15 Class B, cUL, EN60950.
MultiTech MT5634ZBA-GLOBAL-NAM Data Networking Overview
The MultiModemZBA corporate user modems provide high-speed data transfer and fax capabilities for small businesses, telecommuters and SOHO users. Features like remote configuration, callback security and 2-wire leased line support set the MultiModemZBA apart from other basic desktop modems. In addition, it is approved for use in many countries around the world. This means one model can ship virtually anywhere.
Full specifications (PDF)
Technical Information
Fax Technology:
  • Class 1
  • Class 2
  • Group 3
Modulation:
  • ITU-T V.34
  • ITU-T V.90
Features:
Voice Support
Interfaces/Ports
Host Interface:
Serial
Number of Modem (RJ-11) Ports:
1
Number of Phone Line (RJ-11) Ports:
1
Media & Performance
Fax Transmission Data Rate:
14.4 kbit/s
Modem Transmission Data Rate:
56 kbit/s
Physical Characteristics
Form Factor:
Desktop
Height:
1"
Width:
5.7"
Depth:
4.3"
Weight (Approximate):
8 oz
Miscellaneous
Additional Information:
  • Includes U.S. power cord and RJ11 phone cable
  • V.90/56K downloads (from V.90 servers) and 33.6K data rates for uploads or peer-to-peer transfers
  • U.S. Caller ID reporting
  • Remote configuration for centralized setup and management
  • Phone number storage for automatic or DTR dialing
  • Pass-through, fixed, and variable callback security
  • Voice mail support and full-duplex speaker phone operation on voice models
  • Global model with approvals in many countries for worldwide use
  • Self-resetting lightning protection
  • Small footprint and stackable design
  • Flash memory for easy updates
Compatibility:
  • PC
Certifications & Standards:
  • CE Mark
  • EMC: EN55024, FCC Part 15 Class B
  • Safety: cUL, EN60950, UL1950
  • Telecom: CS03, FCC Part 68, TBR21
  • Other countries also included
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0789407024665
UPC: 789407024665
EAN: 0789407024665
UNSPSC: 43222628
