MultiTech MT5600BA-V92 Data Networking

Part Number: MT5600BA-V92
Model: MultiModemII
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Fax Technology
Group 3Class 1Class 2T.30ITU-T V.21ITU-T V.27terITU-T V.29ITU-T V.17ITU-T V.34T.4TIA/EIA TR29.2
Modulation
ITU-T V.90ITU-T V.92ITU-T V.34AT&T V.32terboITU-T V.32bisITU-T V.32ITU-T V.22bisITU-T V.22Bell 212ABell 103Bell 113ITU-T V.21ITU-T V.23
Host Interface
Serial
Number of Modem (RJ-11) Ports
2

Product Description:

  Multi-Tech MultiModemII Data/Fax Modem - Serial - 2 x RJ-11 Modem, 1 x DB-25 RS-232C Serial - 56 Kbps. All MultiTech products are Non-Cancelable and Non-Returnable.
Explore all MultiTech MultiModemII Accessories
Add to Quote
MultiTech MT5600BA-V92 Data Networking
MultiTech MT5600BA-V92 Data Networking
MultiTech MT5600BA-V92 Data Networking MultiTech MT5600BA-V92 Data Networking
Full specifications (PDF)

MultiTech MultiModemII Accessory Model Overview

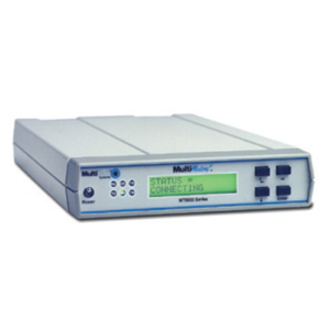

MultiModemII from MultiTech is a corporate modem capable of V.92/56K data and 14.4Kbps fax communications. The front LCD panel provides quick and easy access to modem information. It also features a Backup-Service, in which the backup dial-up line can take over if the primary modem connection goes down. This modem is ideal for corporate users and mission-critical legacy systems.
MultiTech MT5600BA-V92 Data Networking Overview
  • The MT5600BA-V.92 modem supports both two-wire and four-wire leased lines.
  • Complies with major international standards to ensure compatibility with other modems.
  • Uses DTMF and tone detection to distinguish data and fax calls when used with software that supports these features.
  • Supports serial port speeds to 230.4K bps with compatible serial ports
  • Displays status and configuration information on a front panel LCD.
Full specifications (PDF)
Technical Information
Fax Technology:
  • Group 3
  • Class 1
  • Class 2
  • T.30
  • ITU-T V.21
  • ITU-T V.27ter
  • ITU-T V.29
  • ITU-T V.17
  • ITU-T V.34
  • T.4
  • TIA/EIA TR29.2
Modulation:
  • ITU-T V.90
  • ITU-T V.92
  • ITU-T V.34
  • AT&T V.32terbo
  • ITU-T V.32bis
  • ITU-T V.32
  • ITU-T V.22bis
  • ITU-T V.22
  • Bell 212A
  • Bell 103
  • Bell 113
  • ITU-T V.21
  • ITU-T V.23
Interfaces/Ports
Host Interface:
Serial
Number of Modem (RJ-11) Ports:
2
Media & Performance
Fax Transmission Data Rate:
14.4 kbit/s
Modem Transmission Data Rate:
56 kbit/s
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Input Current:
100 mA
Operating Power Consumption:
12
Physical Characteristics
Form Factor:
Desktop
Height:
1.4"
Width:
9"
Depth:
6.2"
Weight (Approximate):
2 lb
Miscellaneous
Package Contents:
  • Modem
  • Country-specific cordage
  • One 9-pin to 25-pin serial cable
  • External power transformer
Additional Information:
  • Data Format: Serial, binary, synchronous and asynchronous
  • Command Buffer: 60 characters
  • Mode of Operation:
  • Fax online modes
  • Full duplex over dial-up and two-wire or four-wire leased lines
  • Data mode, command mode, online command mode, V.54 test mode
  • Intelligent Features:
  • Autodial, redial, repeat dial
  • Pulse or tone dial
  • Dial pauses
  • Auto answer
  • Caller ID
  • Remote configuration
  • Adaptive line probing
  • Automatic symbol and carrier frequency during start-up, retrain, and rate renegotiation
  • Call status display, auto-parity and data rate selection
  • Keyboard and front panel controlled modem options
  • Monitor and LCD displays for modem options
  • Mon-volatile memory
  • Storage of up to four command strings or telephone numbers of up to 40 characters each
  • Diagnostics: Power-on self test, local analog loop, local digital loop, remote digital loop
  • Indicators: 32-character backlit LCD for status and configuration information
  • Speaker: 1-inch speaker for call progress monitoring
  • Manual: Controls Power switch, speaker volume control, four LCD control buttons
Compatibility:
  • Apple MacOS 8.0
  • Apple MacOS 8.1
  • Apple MacOS 8.5
  • Apple MacOS 8.5.1
  • Apple MacOS 8.6
  • Apple MacOS 9.0.4
  • Apple MacOS X
  • Caldera OpenUnix 8
  • Microsoft Windows 2000 Professional
  • Microsoft Windows 2000 Server
  • Microsoft Windows 95 OSR 2
  • Microsoft Windows 95/98
  • Microsoft Windows 98 Second Edition / Windows ME
  • Microsoft Windows NT 3.51
  • Microsoft Windows NT Server 4.0
  • Microsoft Windows NT Workstation 4.0
  • Microsoft Windows XP
  • Novell NetWare 4.2
  • Novell NetWare 5.1
  • Novell NetWare 6
  • SCO OpenServer 5.0.x
  • UnixWare 7.1.1
Certifications & Standards:
  • CE
  • CUL
  • EN 60950
  • FCC Class B certified
  • UL 1950
Warranty
Limited Warranty:
10 Year
Item Numbers
UNSPSC: 43222628
