MSI Z790IEDGE Accessory

MSI - MSI MPG Z790I EDGE WIFI Gaming Desktop Motherboard, Intel Z790 Chipset, Socket LGA-1700, Mini ITX, Core i5, Core i7, Core i9, Pentium Gold, Celeron, Core i3 Processor Supported, 64 GB DDR5 SDRAM Maximum RAM, UDIMM, DIMM, 2 x Memory Slots, IEEE 802.11 a/b/g/n/ac/ax, HDMI, DisplayPort, 4 x SATA Interfaces

Direct 10+1+1 Phases with 105A SPS: Extreme direct power solution with 10+1+1 phases and 105A Smart Power Stage unleash the maximum CPU performance.
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Audio Boost 5: Isolated audio with a high quality audio processor & amp for the most immersive gaming experience.
Triple M.2 Connectors: Onboard 3x M.2 connectors with dual PCIe 4.0 solution, strengthened by M.2 Shield Frozr.
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
2.5G LAN: Onboard 2.5G LAN with LAN manager, delivering the best online gaming experience.
Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

Need a different version? See all MSI Parts Desktop PCs

CA$604.88

In Stock

Chat Now for Qty Discount

Add to Quote

Overview

MSI Parts Desktop PC Model Overview

Parts and products from MSI.

MSI Z790IEDGE Accessory Overview

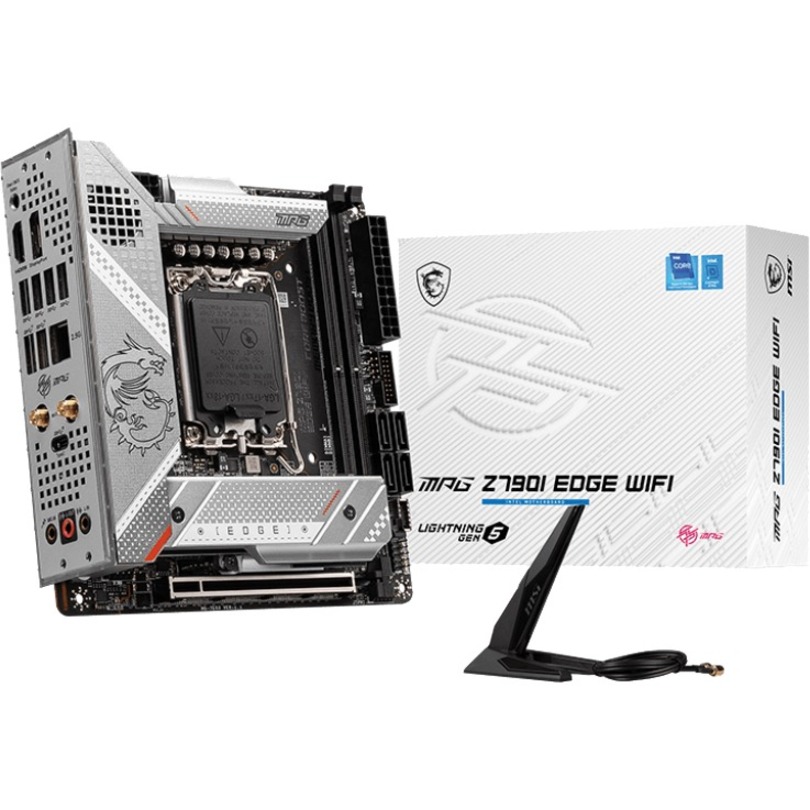

MPG Z790I EDGE WIFI

MPG Z790I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.

BE AHEAD, POP YOUR STYLE

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Detailed Specs

Processor & Chipset

Chipset Manufacturer:

Intel

Chipset Model:

Z790

Total Processor Supported:

Processor Socket:

Socket LGA-1700

Processor Generation Supported:

13th Gen

Processor Supported:

Core i5
Core i7
Core i9
Pentium Gold
Celeron
Core i3

Memory

Number of Memory Slots:

Memory Form Factor:

UDIMM
DIMM

Maximum Memory Supported:

64 GB

Memory Technology:

DDR5 SDRAM

Memory Speed Supported:

8000 MHz
7800 MHz
7600 MHz
7400 MHz
7200 MHz
7000 MHz
6800 MHz
6600 MHz
6400 MHz
6200 MHz
6000 MHz
5800 MHz
5600 MHz
5400 MHz
5200 MHz
5000 MHz
4800 MHz

I/O Controller

Controller Type:

Serial ATA/600

RAID Supported:

Yes

RAID Levels:

Video

Onboard Video:

CPU Dependent Video

Audio

Audio Channels:

7.1

Network & Communication

Bluetooth:

Yes

2.5Gigabit Ethernet:

Yes

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots:

Total Number of PCI Express Slots:

Number of PCI Express x16 Slots:

Interfaces/Ports

Total Number of USB Ports:

Number of USB 3.2 Ports:

Number of USB 3.2 Gen 1 Ports:

Number of USB 3.2 Gen 2 Type-A Ports:

HDMI:

Yes

DisplayPort:

Yes

Number of Network (RJ-45) Ports:

Onboard Interfaces

Number of SATA Interfaces:

Number of M.2 Interfaces:

Total Number of Onboard USB Ports:

Number of Onboard USB 2.0 Ports:

Number of Onboard USB 3.2 Ports:

Physical Characteristics

Product Color:

Silver White

Form Factor:

Mini ITX

Width:

6.7"

Depth:

6.7"

Miscellaneous

Package Contents:

MPG Z790I EDGE WIFI Gaming Desktop Motherboard
European Union Regulatory Notice
Quick Installation Guide
Wi-Fi Antenna
2 x SATA Cables
Cable Stickers
M.2 Screw Package
USB Drive
Rainbow RGB LED Extension Cable

Brand Compatibility:

Intel

Country of Origin:

China

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0824142301456

UPC: 824142301456

EAN: 0824142301456

UNSPSC: 43201513
