MSI PROZ690PDDR4 Accessory

The MSI PROZ690PDDR4 Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

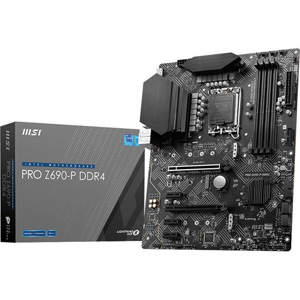

MSI - MSI Z690-P DDR4 Desktop Motherboard, Intel Z690 Chipset, Socket LGA-1700, Intel Optane Memory Ready, ATX, Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported, 128 GB DDR4 SDRAM Maximum RAM, DIMM, UDIMM, 4 x Memory Slots, HDMI, DisplayPort, 4 x SATA Interfaces
  • Supports 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 5000+(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance.
  • Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
Read More

Need a different version? See all MSI Parts Desktop PCs

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
MSI PROZ690PDDR4 Accessory
MSI PROZ690PDDR4 Accessory
MSI Parts Desktop PC Model Overview
Parts and products from MSI.
MSI PROZ690PDDR4 Accessory Overview

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.

Processor & Chipset
Chipset Manufacturer:
Intel
Chipset Model:
Z690
Total Processor Supported:
1
Processor Socket:
Socket LGA-1700
Processor Generation Supported:
12th Gen
Processor Supported:
  • Pentium Gold
  • Celeron
  • Core i5
  • Core i7
  • Core i9
  • Core i3
Multi GPU Supported:
CrossFire
Memory
Number of Memory Slots:
4
Memory Form Factor:
  • DIMM
  • UDIMM
Maximum Memory Supported:
128 GB
Memory Technology:
DDR4 SDRAM
Memory Speed Supported:
  • 5000 MHz
  • 4600 MHz
  • 4000 MHz
  • 2133 MHz
  • 2666 MHz
  • 3200 MHz
  • 4400 MHz
  • 4800 MHz
  • 4266 MHz
  • 4200 MHz
  • 3800 MHz
  • 3733 MHz
  • 3600 MHz
  • 3466 MHz
  • 3400 MHz
  • 3333 MHz
  • 2933 MHz
  • 2400 MHz
Intel Optane Memory Ready:
Yes
I/O Controller
Controller Type:
Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0
  • 1
  • 5
  • 10
Video
Onboard Video:
CPU Dependent Video
Audio
Audio Channels:
7.1
Network & Communication
2.5Gigabit Ethernet:
Yes
I/O Expansions
Number of Total Expansion Slots:
5
Total Number of PCI Express Slots:
5
Number of PCI Express x1 Slots:
3
Number of PCI Express x16 Slots:
2
Interfaces/Ports
Total Number of USB Ports:
7
Number of USB 2.0 Ports:
2
Number of USB 3.2 Ports:
1
Number of USB 3.2 Gen 1 Ports:
4
S/PDIF:
Yes
HDMI:
Yes
DisplayPort:
Yes
Number of Network (RJ-45) Ports:
1
Onboard Interfaces
Number of SATA Interfaces:
4
Number of M.2 Interfaces:
2
Total Number of Onboard USB Ports:
8
Number of Onboard USB 2.0 Ports:
4
Number of Onboard USB 3.2 Ports:
4
Physical Characteristics
Form Factor:
ATX
Width:
12"
Depth:
9.6"
Miscellaneous
Package Contents:
  • PRO Z690-P DDR4 Desktop Motherboard
  • Quick Installation Guide
  • 2 x SATA Cables
  • M.2 Screw / Standoff Sets
  • Product Registration Card
  • I/O Shield
  • Driver DVD
Brand Compatibility:
Intel
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0824142269848, 0824142274118
UPC: 824142269848, 824142274118
EAN: 0824142269848, 0824142274118
UNSPSC: 43201513
