Full specifications (PDF)
Connectivity Technology:
Wireless

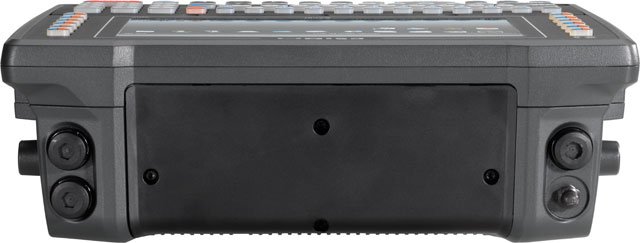

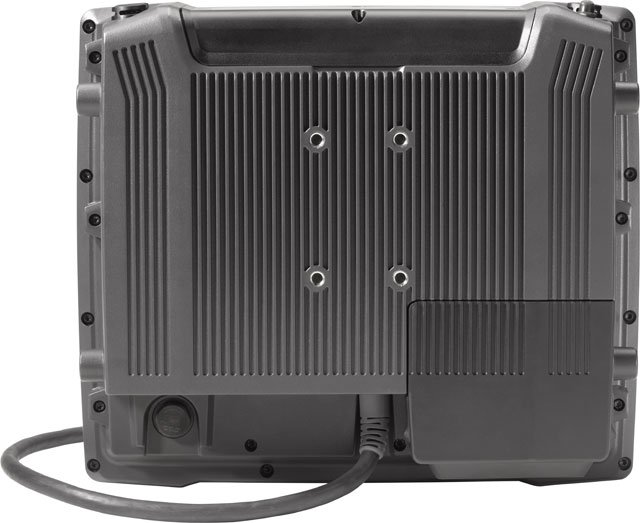

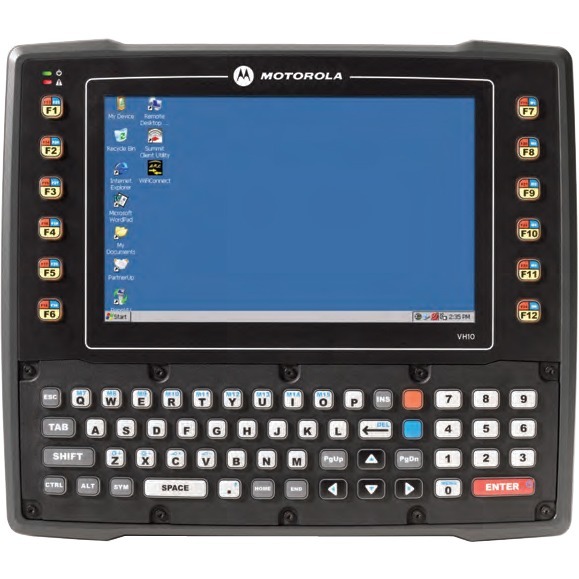

Motorola VH101121101E4A00 Data Terminal
Part Number:
VH101121101E4A00
Model:
PSION VH10/VH10f
Motorola PSION VH10/VH10f Data Terminal Model Overview
The VH10 is built to provide the real-time information this workforce needs to get the job done fast and right – in your warehouse aisles, out in the yard or in a freezer. You get productivity, ingeniously engineered — with all the features you need for truly flawless fulfillment in your most demanding environments.
Motorola VH101121101E4A00 Data Terminal Overview
The VH10 is built to provide the real-time information your workforce needs to get the job done fast and done right - in warehouse aisles, out in the yard or in a freezer. You get productivity, ingeniously engineered - with all the features needed for truly flawless fulfillment in the most demanding environments.
Technical Information
Processor & Chipset
Processor Manufacturer:
Texas Instruments
Processor Type:
OMAP 3
Processor Speed:
800 MHz
Memory
Standard Memory:
512 MB
Flash Memory:
1 GB
Display & Graphics
Screen Size:
8"
Display Screen Type:
LED
Touchscreen:
Yes
Display Resolution:
800 x 480
Network & Communication
Antenna Form Factor:
Internal
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Interfaces/Ports
Serial:
Yes
USB:
Yes
Headphone:
Yes
Keyboard/Keypad
Number of Keys:
67
Keyboard Type:
QWERTY
Keyboard Form Factor:
Integrated
Built-in Devices
Built-in Devices:
- Speaker
- Microphone
Software
Operating System:
Windows CE 6.0
Physical Characteristics
Height:
9.4"
Width:
10.9"
Depth:
3.5"
Weight (Approximate):
8.10 lb
Miscellaneous
Certifications & Standards:
- IP66
- IEC 60721-3-5M3
- MIL STD 810-G
- Wi-Fi Certified
- UL/cUL/IEC/EN 60950-1 Indoor use
- FCC Part 15, Class B
- ICES 003 Class B
- EN55022
- EN 301 489-1
- EN 301 489-17
- FCC Part 15.247
- FCC Part 15.407
- RSS-210
- EN 300 328
- EN 301 893
- IEC UL94-VO
Environmentally Friendly:
Yes
Environmental Certification:
- REACH
- RoHS
- WEEE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
