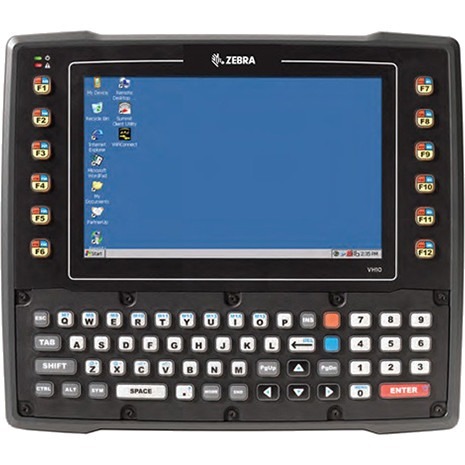

Motorola VH10110110010F00 Data Terminal
Part Number:
VH10110110010F00
Model:
PSION VH10/VH10f
Motorola Parts Accessory Model Overview
Products and parts from Motorola.
Motorola VH10110110010F00 Data Terminal Overview
The VH10 is built to provide the real-time information your workforce needs to get the job done fast and done right - in warehouse aisles, out in the yard or in a freezer. You get productivity, ingeniously engineered - with all the features needed for truly flawless fulfillment in the most demanding environments.
Technical Information
Processor & Chipset
Processor Manufacturer:
Texas Instruments
Processor Type:
OMAP 3
Processor Speed:
800 MHz
Memory
Standard Memory:
512 MB
Flash Memory:
1 GB
Display & Graphics
Screen Size:
8"
Display Screen Type:
LED
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
800 x 480
Network & Communication
Antenna Form Factor:
External
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n

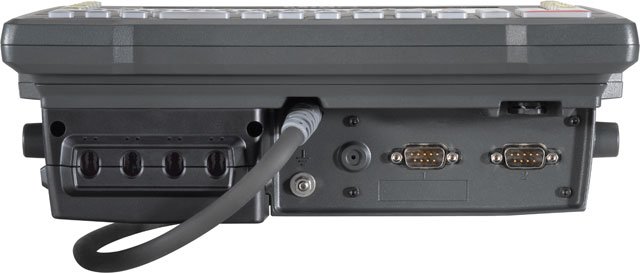

Interfaces/Ports
Serial:
Yes
USB:
Yes
Headphone:
Yes
Keyboard/Keypad
Keyboard Type:
QWERTY
Keyboard Form Factor:
Integrated
Software
Operating System:
Windows CE 6.0
Physical Characteristics
Height:
9.4"
Width:
10.9"
Depth:
3.5"
Weight (Approximate):
8.10 lb
