Full specifications (PDF)
Connectivity Technology:
Wireless

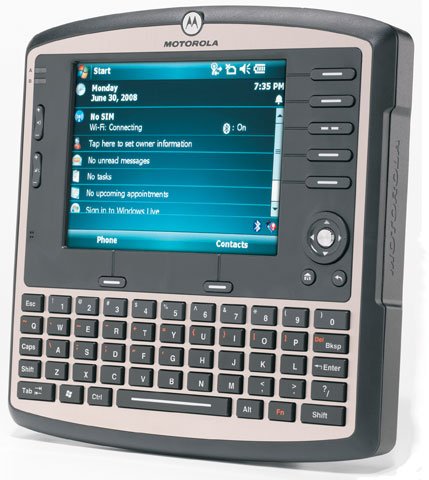

Motorola VC6096-MACSKQRT1WR Data Terminal
Part Number:
VC6096-MACSKQRT1WR
Model:
VC6096
Motorola VC6096 Data Terminal Model Overview
The Motorola VC6096 all-in-one in-cab solution is designed to help transportation and logistics providers achieve cost-effective compliance, maximize driver productivity, improve safety and vehicle utilization, reduce costs and improve customer service. Built to handle the rigors of the road, the VC6096 provides drivers with the comprehensive simultaneous wireless voice and data capabilities needed to maximize operational efficiency - including wireless WAN (WWAN), wireless LAN (WLAN), Bluetooth, GPS and telematics support. An open-platform solution, the VC6096 gives you the power of choice, allowing you to select and control the applications and peripherals that best meet your business needs.
Motorola VC6096-MACSKQRT1WR Data Terminal Overview
The VC6096 Vehicle Mount Computer all in one in cab solution is designed to help transportation and logistics providers achieve cost effective compliance, maximize driver productivity, improve safety and vehicle utilization, reduce costs and improve customer service. Built to handle the rigors of the road, the device provides drivers with the comprehensive simultaneous wireless voice and data capabilities needed to maximize operational efficiency.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
XScale
Processor Speed:
624 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
256 MB
Display & Graphics
Screen Size:
6.5"
Graphics Modes:
VGA
Touchscreen:
Yes
Display Color:
Color
Network & Communication
Antenna Form Factor:
External
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Keyboard/Keypad
Number of Keys:
65
Keyboard Type:
QWERTY
Software
Operating System:
Windows Mobile 6.1 Professional Edition
Physical Characteristics
Height:
9.5"
Width:
9.3"
Depth:
2"
Weight (Approximate):
4.85 lb
Miscellaneous
Additional Information:
- GPS: SiRFstarII GSC3ef/LP GPS Chipset
- Bluetooth Class II Radio
- Altitude: Operating range: 1,200 ft./365 m below sea level to 15,000 ft./4,572 m above sea level
- Crash Hazard: MIL-STD-810E, 516.5 Proc VI
Certifications & Standards:
Electrical safety:
- IEC 60950-1
- Certified to UL / cUL 60950-1
RF Exposure:
- USA: FCC Part 2
- FCC OET Bulletin 65 Supplement C
- Canada: RSS-102
- EU: EN 50360
Environmentally Friendly:
Yes
Environmental Certification:
- WEEE
- RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
4054318756056
EAN:
4054318756056
UNSPSC:
43211505
