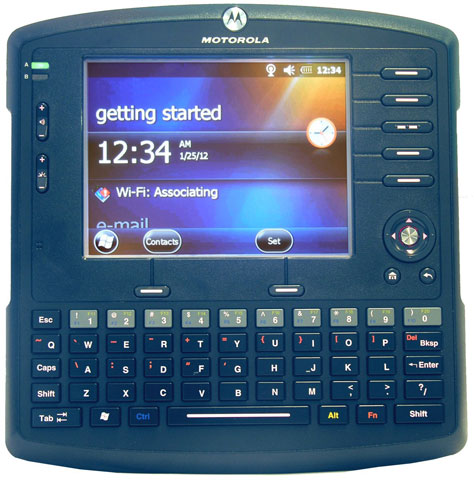

Motorola VC6090-18-75VDC Fixed/Vehicle Mount Data Terminal


0.0

(No reviews)

Be the first to

Write a Review

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

Motorola VC6090 Wireless In-Vehicle - Mobile Computer (Windows Mobile 6.5, 802.11a/B/G, QWERTY, 128/256)
The Ideal Form Factor Vehicle Computer For Small Forklift.

The Motorola VC6090 lift truck mounted mobile computer is size and weight optimized to fit any tight spaced lift trucks, carts and other vehicles. With pre-loaded and pre-licensed Wavelink Terminal Emulation, and the integrated, large key integrated QWERTY keyboard, the VC6090 is ready for use out of the box. Applications developed for other Motorola mobile computers can be easily ported to the VC6090, reducing software development and training.

General Information

  • Product Type: Vehicle Mount Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: VC6090
  • Product Name: VC6090 Lift Truck-Mounted Mobile Computer

Technical Information

  • Connectivity Technology: Wireless

Physical Characteristics

  • Height: 9.5"
  • Width: 9.3"
  • Depth: 2"
  • Weight (Approximate): 4.85 lb

Interfaces/Ports

  • Interfaces/Ports:
    • 2 x Type A USB 1.1 USB
    • 1 x Mini Type B USB 1.1 USB
    • 1 x RJ-45 Network
    • 1 x Auxiliary Port
    • 1 x Serial
    • 2 x RS-232 Serial
    • 8 x Input
    • 8 x Output
    • 2 x Input

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • IP64
    • MIL-STD 810E
    • MIL-STD 810F
    • Electrical Safety:
    • UL
    • cUL 60950-1
    • IEC EN 60950-1
    • Product Flammability:
    • IEC UL94-VO
    • WLAN and Bluetooth:
    • FCC Part 15.247
    • 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • Quad Band GSM/EDGE:
    • FCC Part 22
    • Part 24
    • RSS-GSM/EDGE: 132
    • RSS-133
    • EN301 511
    • EN301 908
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN 50360
    • EMI/RFI:
    • FCC Part 15
    • Class B
    • ICES 003 Class B
    • EN55022
    • EN 301 489-1
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-19
    • EN 301 489-24

Network & Communication

  • Antenna Form Factor: External
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
  • Wireless Technology: Wi-Fi

Display & Graphics

  • Touchscreen: Yes
  • Display Color: Color
  • Screen Size: 6.5"
  • Graphics Modes: VGA
  • Display Resolution: 640 x 480

Keyboard/Keypad

  • Keyboard Form Factor: Integrated
  • Number of Keys: 65
  • Keyboard Type: QWERTY

Environmental Conditions

  • Electrostatic Discharge (ESD):
    • +/-15 kV AC Air Discharge
    • +/-8 kV AC Direct Discharge

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 128 MB

Processor & Chipset

  • Processor Speed: 624 MHz
  • Processor Type: XScale

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.5

Full specifications (PDF)
