Full specifications (PDF)
Connectivity Technology:
Wireless

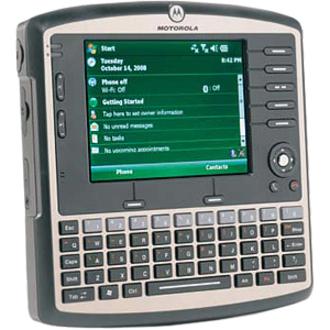

Motorola VC6000-MA0SKQQ000R Data Terminal
Part Number:
VC6000-MA0SKQQ000R
Model:
VC6096

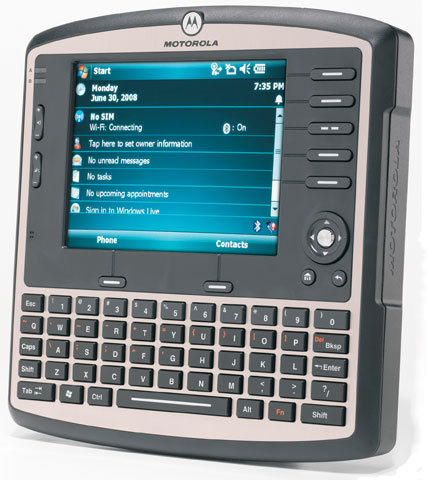

Motorola VC6096 Data Terminal Model Overview
The Motorola VC6096 all-in-one in-cab solution is designed to help transportation and logistics providers achieve cost-effective compliance, maximize driver productivity, improve safety and vehicle utilization, reduce costs and improve customer service. Built to handle the rigors of the road, the VC6096 provides drivers with the comprehensive simultaneous wireless voice and data capabilities needed to maximize operational efficiency - including wireless WAN (WWAN), wireless LAN (WLAN), Bluetooth, GPS and telematics support. An open-platform solution, the VC6096 gives you the power of choice, allowing you to select and control the applications and peripherals that best meet your business needs.
Motorola VC6000-MA0SKQQ000R Data Terminal Overview
The VC6096 Vehicle Mount Computer all in one in cab solution is designed to help transportation and logistics providers achieve cost effective compliance, maximize driver productivity, improve safety and vehicle utilization, reduce costs and improve customer service. Built to handle the rigors of the road, the device provides drivers with the comprehensive simultaneous wireless voice and data capabilities needed to maximize operational efficiency.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
XScale
Processor Speed:
624 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
256 MB
Display & Graphics
Screen Size:
6.5"
Graphics Modes:
VGA
Touchscreen:
Yes
Display Color:
Color
Network & Communication
Antenna Form Factor:
External
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Keyboard/Keypad
Number of Keys:
65
Keyboard Type:
QWERTY
Software
Operating System:
Windows Mobile 6.1 Classic
Physical Characteristics
Height:
9.5"
Width:
9.3"
Depth:
2"
Weight (Approximate):
4.85 lb
Miscellaneous
Additional Information:
- Bluetooth Class II Radio
- Altitude: Operating range: 1,200 ft./365 m below sea level to 15,000 ft./4,572 m above sea level
- Crash Hazard: MIL-STD-810E, 516.5 Proc VI
Certifications & Standards:
Electrical safety:
- IEC 60950-1
- Certified to UL / cUL 60950-1
RF Exposure:
- USA: FCC Part 2
- FCC OET Bulletin 65 Supplement C
- Canada: RSS-102
- EU: EN 50360
Environmentally Friendly:
Yes
Environmental Certification:
- WEEE
- RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
Recommended Accessories
Category
- Cables, Connectors, and Adapters (1)
- Miscellaneous (1)
- Mobile Computer Accessories (1)
- Power Device (2)
- Terminal Accessories (6)
- Wireless Antenna (1)
Recommended Accessories for Model: Motorola VC6000-MA0SKQQ000R Data Terminal
Top Cables, Connectors, and Adapters Purchased With Motorola VC6000-MA0SKQQ000R
-
Motorola 25-164479-01 AccessoryCABLE, ASSEMBLY,VC60, USB TO RJ45Please Call for Pricing or to Purchase
Top Miscellaneous Purchased With Motorola VC6000-MA0SKQQ000R
-
Motorola 3071815Y15-01R ProductsVC6090 CABLE, 9-PIN DEUTSCHPlease Call for Pricing or to Purchase
Top Mobile Computer Accessories Purchased With Motorola VC6000-MA0SKQQ000R
-
Motorola 25-164479-01 AccessoryCABLE, ASSEMBLY,VC60, USB TO RJ45Please Call for Pricing or to Purchase
Top Power Device Purchased With Motorola VC6000-MA0SKQQ000R
-
Zebra 50-16000-221R Power DevicePower Device, Zebra, AC Line Cord, Grounded, 6 Feet Or 1.8 Meters, 3-Prong, USA Nema 5-15P Plug, Associated Countries, Canada, Mexico, United States.In Stock$25.94 -
Zebra 30013095001 Power DevicePower Device, Zebra, Power Cable, VC60 To PWRS-14000-251R DC/DC Converter$148.71
Top Terminal Accessories Purchased With Motorola VC6000-MA0SKQQ000R
-
Motorola 3071815Y13 AccessoryVehicle Power Supply CblePlease Call for Pricing or to Purchase -
Motorola 3087568V83 AccessoryRF Cable For WLAN Antenna For VC609xPlease Call for Pricing or to Purchase -
Motorola 3087568V84 AccessoryRF Cable For Wwan Antenna For VC609xPlease Call for Pricing or to Purchase
Top Wireless Antenna Purchased With Motorola VC6000-MA0SKQQ000R
-
Motorola Wireless AntennaCombination Antenna Wwan and Wlan. For internal and external installations.Please Call for Pricing or to Purchase
Questions? Get Help from
a Mobile Expert!
a Mobile Expert!
The Motorola VC6000-MA0SKQQ000R Data Terminal is also known as
SYM-VC6000MA0SKQQ000
or VC6000MA0SKQQ000R.
