You've just added this product to the cart:

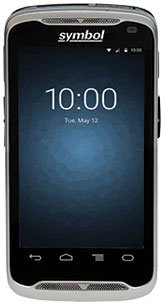

Motorola TC55AH-JC11ES Mobile Handheld Computer

Motorola Symbol TC55 - Wi-Fi (802.11a/b/g/n), 1D Linear Imager Scanner, Android JellyBean 4.3, 4G HSDPA+, 8MP Camera, NFC, 2960 mAh Battery. Includes USB cable. Charging Cradles and Power supply Sold Separately. Single charging cup (Part# Cable-TC55-CHG1-01) needs power supply (Part# PWRS-124306-01R). 5- slot- CRDUNIV-55-5000R REQUIRES POWER (Part# PWRS-14000-148C) AND AC LINE CORD (Part# 23844-00-00R).
Quantity Discount
5-9 10% off
10-14 15% off
15+ Contact us for extra savings
US orders only

To get the job done, your field workers need a rugged, reliable device to provide remote access to real-time data. They also need a device that is easy to use. Introducing the TC55, the pocket-sized, all-touch mobile computer that has it all. The TC55 Touch Computer marries rich enterprise features with smartphone usability and form factor. For example, workers can capture practically any type of data "" from barcodes and signatures to photos, videos and NFC "" improving on the job efficiency and customer service. The screen is optimized for Enterprise viewing, helping ensure the battery lasts a full shift. And with a drop, tumble and environmental sealing specification you can count on, it has the durability required to serve your field workers for years.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Drop Specification:
    • 48" To Plywood
    • 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: TC55
  • Product Name: TC55 Touch Computer

Physical Characteristics

  • Width: 2.7"
  • Depth: 0.6"
  • Length: 5.4"
  • Weight (Approximate): 7.80 oz

Interfaces/Ports

  • USB: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • TC55 Touch Computer
    • Battery
    • TC55 Touch Computer
    • Battery
  • Certifications & Standards:
    • MIL-STD810G
    • IP67
    • IEC
    • LED Safety:
    • EN 62471
    • WLAN/Bluetooth/NFC:
    • FCC Part 15.247
    • FCC Part 15.407
    • FCC Part 15.225
    • RSS-210
    • EN 300 328
    • EN 301 893
    • EN 302 291
    • AS/NZS 4268
    • RF exposure:
    • FCC Part 2
    • FCC OET Bulletin 65c
    • RSS 102 Issue 4
    • EN 50360
    • EN 50566
    • EN 62479
    • EN 62311
    • Radiocommunications Standard 2003
    • Electrical safety:
    • UL 60950-1
    • EN 60950-1
    • IEC 60950-1
    • WWAN:
    • FCC Part 22
    • FCC Part 24
    • RSS-132
    • RSS-133
    • RSS-139
    • EN301 511
    • EN301 908
    • AS/ACIF S042.1, 3 & 4
    • Environmental:
    • EN 50581
    • EMI/RFI:
    • FCC Part 15
    • FCC Part Class B
    • ICES-003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPR 22

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Network Band: Tri Band
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Cellular Data Connectivity Technology:
    • HSPA+
    • LTE
  • Near Field Communication: Yes
  • Wireless Security:
    • WEP (40 or 104 bit)
    • WPA/WPA2 Personal
    • WPA/WPA2 Enterprise
    • EAP-TTLS PAP
    • EAP-TTLS MSCHAP
    • EAP-TTLS MSCHAPv2
    • EAP-TLS
    • PEAPv0-MSCHAPv2
    • PEAPv1-EAP-GTC
    • TKIP
    • AES

Memory

  • Flash Memory: 8 GB
  • Standard Memory: 1 GB
  • Maximum Memory Card Size Supported: 32 GB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • microSD Card
    • microSD High Capacity (microSDHC)

Display & Graphics

  • Display Screen Type: LCD
  • Backlight Technology: LED
  • Screen Mode: WVGA
  • Screen Size: 4.3"

Battery Information

  • Battery Capacity: 2940 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Capacitive

Camera

  • Camera: Yes
  • Effective Camera Resolution: 8 Megapixel

Processor & Chipset

  • Processor Speed: 1.50 GHz

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Android 4.1.2 Jelly Bean

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model TC55
Operating System Android 4.3
Style Phone-size
Network Connectivity 802.11n, 802.11g, 802.11a, Bluetooth, 802.11a/b/g/n, HSPA+
Scanner Capability 1D
RAM Memory 1 GB
Scanner Type Imager
Data Collection Type Wireless

Recommended Accessories for Model: Motorola TC55 Mobile Handheld Computer
Motorola (SAC-TC55-2BTYC1)
Dual battery charger - can charge 2x RFD8500/TC55 batteries via 3-slot cradle (Part# CRDUNIV-RFD8500-1R), the TC55 5-slot cradle (Part# CRDUNIV-55-5000R) or Rugged USB Charger (Part# Cable-TC55-CHG1-01).
In Stock: Ships Same Day
$188.20
+ Add to Quote
Motorola (BTRY-TC55-44MA1-01)
TC55 1.5X EXT BATTERY 4410 mAh
In Stock: Ships Same Day
$85.10
+ Add to Quote
Motorola (CRDUNIV-55-5000R)
TC55 5-SLOT CHARGE ONLY CRADLE
In Stock: Ships Same Day
$375.60
+ Add to Quote
Motorola (PWR-WUA5V6W0WW)
ZEBRA EVM, LEVEL VI AC/DC POWER SUPPLY (WALL ADAPTER, WITH AU, US, EU, AND UK ADAPTER CLIPS). AC INPUT: 100-240V, 0.2A. DC OUTPUT: 5.2V, 1.2A, 6W, REQUIRES USB TO MICRO-USB OR USB TO DEVICE SPECIFIC CABLE CUP AND BR ADAPTER CLIP.
In Stock: Ships Same Day
$21.40
+ Add to Quote
Motorola (CBL-TC55-CHG1-01)
Cable, Rugged Charging, Requires Power supply (Part# PWRS-124306-01R), Compatible with TC55 and RFD8500.
In Stock: Ships Same Day
$33.50
+ Add to Quote
