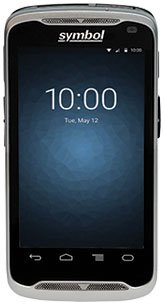

Motorola TC55AH-JC11EE Mobile Computer


4.0

(1 reviews)

Motorola Symbol TC55 - Wi-Fi (802.11a/b/g/n), 4G HSDPA+, 1D Scanner, Android JellyBean, 8MP Camera, NFC, 1.5x Extended Battery. Includes USB cable and 2 Year Service Warranty (Not Comprehensive). Charging Cradles and Power supply Sold Separately. Single charging cup (Part# Cable-TC55-CHG1-01) needs power supply (Part# PWRS-124306-01R). 5- slot- CRDUNIV-55-5000R REQUIRES POWER (Part# PWRS-14000-148C) AND AC LINE CORD (Part# 23844-00-00R).

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

To get the job done, your field workers need a rugged, reliable device to provide remote access to real-time data. They also need a device that is easy to use. Introducing the TC55, the pocket-sized, all-touch mobile computer that has it all. The TC55 Touch Computer marries rich enterprise features with smartphone usability and form factor. For example, workers can capture practically any type of data "" from barcodes and signatures to photos, videos and NFC "" improving on the job efficiency and customer service. The screen is optimized for Enterprise viewing, helping ensure the battery lasts a full shift. And with a drop, tumble and environmental sealing specification you can count on, it has the durability required to serve your field workers for years.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Drop Specification:
    • 48" To Plywood
    • 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: TC55
  • Product Name: TC55 Touch Computer

Physical Characteristics

  • Width: 2.7"
  • Depth: 0.6"
  • Length: 5.4"

Interfaces/Ports

  • USB: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • MIL-STD810G
    • IP67
    • IEC
    • LED Safety:
    • EN 62471
    • WLAN/Bluetooth/NFC:
    • FCC Part 15.247
    • FCC Part 15.407
    • FCC Part 15.225
    • RSS-210
    • EN 300 328
    • EN 301 893
    • EN 302 291
    • AS/NZS 4268
    • RF exposure:
    • FCC Part 2
    • FCC OET Bulletin 65c
    • RSS 102 Issue 4
    • EN 50360
    • EN 50566
    • EN 62479
    • EN 62311
    • Radiocommunications Standard 2003
    • Electrical safety:
    • UL 60950-1
    • EN 60950-1
    • IEC 60950-1
    • WWAN:
    • FCC Part 22
    • FCC Part 24
    • RSS-132
    • RSS-133
    • RSS-139
    • EN301 511
    • EN301 908
    • AS/ACIF S042.1, 3 & 4
    • Environmental:
    • EN 50581
    • EMI/RFI:
    • FCC Part 15
    • FCC Part Class B
    • ICES-003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPR 22

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Network Band: Tri Band
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Cellular Data Connectivity Technology:
    • HSPA+
    • LTE
  • Near Field Communication: Yes
  • Wireless Security:
    • WEP (40 or 104 bit)
    • WPA/WPA2 Personal
    • WPA/WPA2 Enterprise
    • EAP-TTLS PAP
    • EAP-TTLS MSCHAP
    • EAP-TTLS MSCHAPv2
    • EAP-TLS
    • PEAPv0-MSCHAPv2
    • PEAPv1-EAP-GTC
    • TKIP
    • AES

Memory

  • Flash Memory: 8 GB
  • Standard Memory: 1 GB
  • Maximum Memory Card Size Supported: 32 GB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • microSD Card
    • microSD High Capacity (microSDHC)

Display & Graphics

  • Display Screen Type: LCD
  • Backlight Technology: LED
  • Screen Mode: WVGA
  • Screen Size: 4.3"

Battery Information

  • Battery Capacity: 4410 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Capacitive

Processor & Chipset

  • Processor Speed: 1.50 GHz

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Android 4.1.2 Jelly Bean

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model TC55
Operating System Android 4.3
Style Phone-size
Network Connectivity 802.11n, Bluetooth, 802.11g, 802.11a, 802.11a/b/g/n, HSPA+
RAM Memory 1 GB
Scanner Type Imager
Data Collection Type Wireless
Scanner Capability 1D


Customer Review Summary


4.0

(based on 1 reviews)

Ratings Distribution

  • 5 Stars



    (0)

  • 4 Stars



    (1)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 1 customers

Sort by

Displaying reviews 1-1

Back to top


4.0

TC55

By Sterling Stone

from Boston

3/24/2014

Verified Buyer

Pros

  • Better Ui Than Mc40
  • Durable
  • Waterproof

Cons

  • Barcode Reader

Best Uses

  • Warehousing

Comments about Motorola Symbol TC55 TC55AH-JC11EE:

Used this product in warehouse testing for clients It worked quite well but while everything had vastly improved from the previous MC40 model for some reason they did not carry over the MC40 barcode reader which worked very well. It durability is fantastic as well as its UI.

Displaying reviews 1-1

Back to top

Recommended Accessories for Model: Motorola TC55 Mobile Computer
Motorola (BTRY-TC55-44MA1-01)
TC55 1.5X EXT BATTERY 4410 mAh
In Stock: Ships Same Day
$83.60
+ Add to Quote
Motorola (CBL-TC55-CHG1-01)
Cable, Rugged Charging, Requires Power supply (Part# PWRS-124306-01R), Compatible with TC55 and RFD8500.
In Stock: Ships Same Day
$29.90
+ Add to Quote
Motorola (CRDUNIV-55-5000R)
TC55 5-SLOT CHARGE ONLY CRADLE
In Stock: Ships Same Day
$334.60
+ Add to Quote
Motorola (SG-TC55-HSTRPH-01)
Handstrap, Compatible with TC55, Attaches to Boot, Blue/Black Boot (Part# SG-TC55-BOOT1-01) and Black/Gray Boot (Part# SG-TC55-BOOT2-01) Sold Separately.
In Stock: Ships Same Day
$21.50
+ Add to Quote
Motorola (SAC-TC55-2BTYC1)
Dual battery charger - can charge 2x RFD8500/TC55 batteries via 3-slot cradle (Part# CRDUNIV-RFD8500-1R), the TC55 5-slot cradle (Part# CRDUNIV-55-5000R) or Rugged USB Charger (Part# Cable-TC55-CHG1-01).
In Stock: Ships Same Day
$167.30
+ Add to Quote
Protect Your Product
Motorola Service Contract - 1 year (Z1RS-TC55XX-1C03)
1 Year Zebra OneCare Service Select Renewal. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships in 3-5 Days
$95.50
+ Add to Quote
Motorola Service Contract - 1 year (Z1RE-TC55XX-1C00)
1 Year Zebra OneCare Essential Renewal. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships in 3-5 Days
$76.40
+ Add to Quote
Motorola Service Contract - 1 year (Z1BS-TC55XX-1C03)
1 Year Zebra OneCare Service Center Select. Includes Comprehensive coverage.Includes commissioning. Does not include coverage for cradles. Check datasheet for regional availability
Ships in 3-5 Days
$123.70
+ Add to Quote
Motorola Service Contract - 1 year (Z1BE-TC55XX-1000)
1 Year Zebra OneCare Service Center Essential. 1 Year Zebra OneCare Service Center Essential. Does not include Comprehensive coverage. Does not include coverage for cradles.
Ships in 3-5 Days
$98.60
+ Add to Quote
Motorola Service Contract - 3 year (SSSL-TC55XX-30)
Upgrade to Zebra OneCare Select. Includes Comprehensive coverage. Does not include coverage for cradles. Not available in APME or LA
Ships in 3-5 Days
$247.40
+ Add to Quote

The Motorola TC55AH-JC11EE is also known as MOT-TC55AHJC11EE or TC55AHJC11EE .
