Motorola RS507-IM20000STWR Barcode Scanner


4.5

(3 reviews)

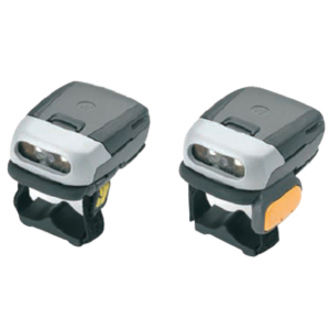

Motorola RS507 Ring Imager - Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer.
Bluetooth cordless freedom

The Motorola RS507 Ring Imager Hands-Free Imager gives workers the superior blend of technology, form and function needed to achieve a new level of productivity in package handling and warehouse applications. Advanced ergonomics, including Bluetooth cordless freedom, provide unparalleled user comfort and movement, regardless of hand size or hand preference. As the most rugged scanner in its class, the RS507 Ring Imager offers reliable performance in demanding environments from the loading docks to the warehouse floor and assembly line. The RS507 Ring Imager is also available with an adapter cord for use with the WT4000 series.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Wireless
  • Scanning Distance: 24"
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D:
    • Codabar
    • Code 39
    • Code 128
    • EAN 13
    • EAN 8
    • Interleaved 2 of 5
    • UPC-A and UPC-E
    • Additionally supported by 1D:
    • Code 11
    • Code 32 Pharmaceutical (PARAF)
    • Code 93
    • MSI
    • Reduced Space Symbology (RSS-14, RSS Limited, RSS Expanded)
    • Straight 2 of 5 IATA end-of-life (two-bar start/stop)
    • Straight 2 of 5 Industrial (three-bar start/stop)
    • Trioptic
    • UPC-E1
    • 2D:
    • 4-CB (4-State Customer Barcode)
    • Aztec
    • MicroPDF417
    • PDF417
    • MaxiCode
    • Additionally supported by 2D:
    • Australian Post
    • British Post (4 state code and "infomail")
    • Data Matrix
    • Japanese Post
    • KIX (Netherlands) Post
    • Planet Code
    • Postnet
    • QR Code
    • EAN/UCC Composite
    • TCIF Linked Code 39 (TLC39)
    • 1D:
    • Codabar
    • Code 39
    • Code 128
    • EAN 13
    • EAN 8
    • Interleaved 2 of 5
    • UPC-A and UPC-E
    • Additionally supported by 1D:
    • Code 11
    • Code 32 Pharmaceutical (PARAF)
    • Code 93
    • MSI
    • Reduced Space Symbology (RSS-14, RSS Limited, RSS Expanded)
    • Straight 2 of 5 IATA end-of-life (two-bar start/stop)
    • Straight 2 of 5 Industrial (three-bar start/stop)
    • Trioptic
    • UPC-E1
    • 2D:
    • 4-CB (4-State Customer Barcode)
    • Aztec
    • MicroPDF417
    • PDF417
    • MaxiCode
    • Additionally supported by 2D:
    • Australian Post
    • British Post (4 state code and "infomail")
    • Data Matrix
    • Japanese Post
    • KIX (Netherlands) Post
    • Planet Code
    • Postnet
    • QR Code
    • EAN/UCC Composite
    • TCIF Linked Code 39 (TLC39)

General Information

  • Product Type: Wearable Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: RS507
  • Product Name: RS507 Wearable Barcode Reader

Physical Characteristics

  • Height: 1.2"
  • Width: 2.1"
  • Depth: 2.9"
  • Weight (Approximate): 4.80 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information:
    • Pitch Angle: ± 60° from normal
    • Skew Tolerance: ± 60° from normal

Network & Communication

  • Bluetooth: Yes

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model RS507 Ring Imager
Scanner Capability 2D
Color Dark Gray
Connectivity Cordless
Form Factor Wearable
Connection Bluetooth
Scanner Type Imager
Scan Pattern Area
Communication Type Bluetooth
Communication Range less than 33 ft
Ruggedness General Purpose


Customer Review Summary


4.5

(based on 3 reviews)

Ratings Distribution

  • 5 Stars



    (2)

  • 4 Stars



    (1)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 3 customers

Sort by

Displaying reviews 1-3

Back to top


4.0

Ring scanner works well overall

By JV

from Edgerton, Kansas

5/27/2015

Verified Buyer

Comments about Motorola RS507 Ring Imager RS507-IM20000STWR:

Our company tested the ring scanner in our warehouse/logistics environment. It definitely adds efficiency as it allowed you to use both hands more freely, plus you have more flexibility to move around. The only complaint is that it can lose Bluetooth connectivity pretty quickly (goes into sleep mode), and the regulary battery life is good for about 8 hours or so.


5.0

Very Efficient Easy to setup and use.

By NessMan96

from Rapid City, SD

2/4/2014

Verified Buyer

Pros

  • Ease of setup and use
  • Mobility

Cons

  • Clips That Hold Strap

Best Uses

  • Scanning Barcodes

Comments about Motorola RS507 Ring Imager RS507-IM20000STWR:

We use these in our warehouse, the guys scan the product barcodes or the bin barcode to add the correct product to the load. The plastic piece that holds the strap in breaks. You can order the straps but can never find the plastic piece. I contacted Symbol and they said they had it and I had to buy in bulk, quantity 50, not the right piece. Salesman couldn't find it either so have scanners being used without straps and they get dropped more now and repair out of warranty is crazy expensive.

(1 of 1 customers found this review helpful)


5.0

Great scanner!!

By NessMan96

from Rapid City, SD

11/28/2012

Verified Reviewer

Comments about Motorola RS507 Ring Imager RS507-IM20000STWR:

I purchased 6 of these and have not had an issue they get used 24 hours a day. Great to have a removable battery so we could just get extra batteries and a charger for the batteries.

Displaying reviews 1-3

Back to top

Recommended Accessories for Model: Motorola RS507 Ring Imager Scanner
Motorola (ADPTRWT-RS507-04R)
Tethered Module, Corded Adapter
In Stock: Ships Same Day
$158.90
+ Add to Quote
Motorola (KT-CLMPT-RS507-01R)
Kit (Finger Clamp, Trigger, 1 Per Package) For The RS507
In Stock: Ships Same Day
$92.00
+ Add to Quote
Motorola (KT-STRPT-RS507-10R)
Straps For RS507 Triggered Configuration. Quantity: 10.
In Stock: Ships Same Day
$54.80
+ Add to Quote
Motorola (KT-PAD-RS507-10R)
Comfort Pads For RS507 10 Pack
In Stock: Ships Same Day
$63.40
+ Add to Quote
Motorola (KTBTRYRS50EAB00-01)
RS507 Standard Battery 970mah 3.7v
In Stock: Ships Same Day
$58.90
+ Add to Quote

The Motorola RS507-IM20000STWR is also known as SYM-RS507IM20000STWR or RS507IM20000STWR .
