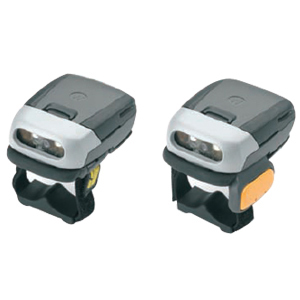

Motorola RS507-IM20000ENWR Barcode Scanner

Motorola RS507 Ring Imager - RS507 Hands-Free, 2D Imager Scanner, Bluetooth, No Trigger, Cordless, Extended Battery.
  • Increases productivity by giving the opportunity to wander, without the tangle of cables
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • With Bluetooth technology, you can scan barcodes and then transmit data from the base
Read More

Full specifications (PDF)

Bluetooth cordless freedom
The Motorola RS507 Ring Imager Hands-Free Imager gives workers the superior blend of technology, form and function needed to achieve a new level of productivity in package handling and warehouse applications. Advanced ergonomics, including Bluetooth cordless freedom, provide unparalleled user comfort and movement, regardless of hand size or hand preference. As the most rugged scanner in its class, the RS507 Ring Imager offers reliable performance in demanding environments from the loading docks to the warehouse floor and assembly line. The RS507 Ring Imager is also available with an adapter cord for use with the WT4000 series.
Motorola RS507-IM20000ENWR Overview

The advanced ergonomic design of the RS507 provides unrivaled freedom of movement and user comfort regardless of hand size, right- or left-handed operation or whether gloves are worn. The Bluetooth wireless connection to the Motorola mobile computer allows users to wear the RS507 on either hand and the trigger swivel allows users to switch from right to left hand use in seconds.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:


  • Codabar
  • Code 39
  • Code 128
  • EAN 13
  • EAN 8
  • Interleaved 2 of 5
  • UPC-A and UPC-E

Additionally supported by 1D:

  • Code 11
  • Code 32 Pharmaceutical (PARAF)
  • Code 93
  • MSI
  • Reduced Space Symbology (RSS-14, RSS Limited, RSS Expanded)
  • Straight 2 of 5 IATA end-of-life (two-bar start/stop)
  • Straight 2 of 5 Industrial (three-bar start/stop)
  • Trioptic
  • UPC-E1


  • 4-CB (4-State Customer Barcode)
  • Aztec
  • MicroPDF417
  • PDF417
  • MaxiCode

Additionally supported by 2D:

  • Australian Post
  • British Post (4 state code and "infomail")
  • Data Matrix
  • Japanese Post
  • KIX (Netherlands) Post
  • Planet Code
  • Postnet
  • QR Code
  • EAN/UCC Composite
  • TCIF Linked Code 39 (TLC39)
Light Source:
Image Sensor Type:
Scan Pattern:
Scanning Distance:
Network & Communication
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Weight (Approximate):
4.80 oz
Additional Information:
  • Pitch Angle: ± 60° from normal
  • Skew Tolerance: ± 60° from normal

USB Cable separate

Environmentally Friendly:
Environmental Certification:
Item Numbers
GTIN: 5711045615467
EAN: 5711045615467
UNSPSC: 43211701

The Motorola RS507-IM20000ENWR is also known as SYM-RS507IM20000ENWR or RS507IM20000ENWR .
