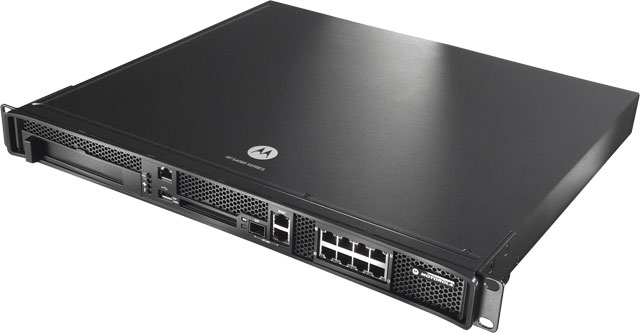

Motorola RFS-6010-10060-WR Wireless Controller

Motorola RFS6000 - 48 Port Wireless LAN Switch
Enterprise security - for voice and data

Designed to support large scale high bandwidth enterprise deployments, the Motorola RFS6000 offers a multicore multithreaded CPU-based architecture that is capable of supporting 2,000 to 20,000 mobile devices and up to 48 dual radio 802.11a/b/g access ports. In addition, the 802.11n ready device offers the failover capabilities and cluster management required to ensure high availability. A user accessible ExpressCard Slot allows the addition of a broadband card (3G/4G) for a redundant wireless WAN backhaul connection, increasing resilience for remote branch offices. The ability to cluster up to 12 RFS6000 RF Switches provides the high level of scalability required for large enterprise deployments.

General Information

  • Product Type: Wireless LAN Controller
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: RFS6000
  • Product Name: RFS6000 Wireless LAN Controller

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.8"
  • Depth: 15.4"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 14 lb


  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 8
  • PoE (RJ-45) Port: Yes
  • USB: Yes
  • Management Port: Yes

Management & Protocols

  • Management:
    • Telnet
    • SNMP v1,v2,v3
    • Syslog
    • DHCP
    • MIBs
    • QoS
    • Web-based GUI
    • VLAN


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information:
    • Supports: 48 Port Wireless Switch
    • MTBF: Greater than 65,000 Hours
    • Load Balancing

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: Power Supply

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model RFS6000
Number of Wired Access Points 8
Number of Supported Access Points 256
Recommended Accessories for Model: Motorola RFS6000 Wireless Controller
Motorola RFS6000 (RFS-6010-UC-08-WWR)
8 port License upgrade certificate
+ Add to Quote
Motorola (RFS-6010-ADSEC-LIC)
License (Advanced Security, RFS6000)
+ Add to Quote
Motorola (RFS-6010-ADP-16)
License (Adaptive AP 16 Port, RFS6000)
+ Add to Quote
Motorola (RFS-6010-ADP-128)
License (Adaptive AP 128 Port, RFS6000)
+ Add to Quote
Motorola (RFS-6010-ADP-256)
License (Adaptive AP 256 Port, RFS6000)
Please Call for Pricing
or to Purchase

The Motorola RFS-6010-10060-WR is also known as SYM-RFS601010060WR or RFS601010060WR .
