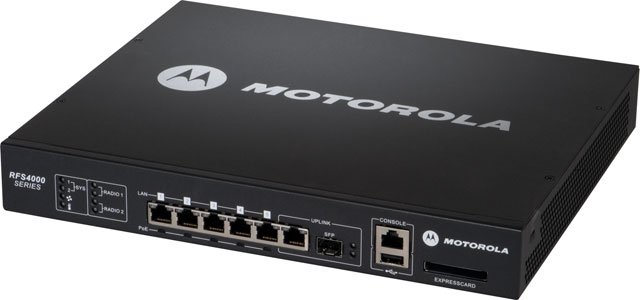

Motorola RFS-4011-11110-US Wireless Controller


(No reviews)

Be the first to

Write a Review
Motorola RFS4000 - (With Dual .11n Radios and Power supply, US Only)
Wi-NG Operating System - delivering a unified voice, data and RF management platform

The Motorola RFS4000 802.11n wireless services controller integrates wired, wireless and security networking features into a compact and easy-to-use form factor, enabling organizations to create survivable branch networks using a single platform. The RFS4000 is also available with an integrated dual radio dual band 802.11n access point that features extensive coverage and performance - meeting all the needs of SME/ SMB. In addition, the RFS4000 Series offers built in applications such as Locationing for Wi-Fi and RFID as well as Hotspot and VoWLAN/Video Services.

General Information

  • Product Type: Wireless LAN Controller
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: RFS 4000
  • Product Name: RFS 4000 Wireless LAN Controller

Technical Information

  • ISM Band: No
  • UNII Band: No
  • Memory Card Supported: ExpressCard
  • Features: Quality of Service (QoS)

Physical Characteristics

  • Height: 1.8"
  • Width: 12"
  • Depth: 10"
  • Form Factor: Desktop
  • Weight (Approximate): 4.74 lb


  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 6
  • PoE (RJ-45) Port: Yes
  • USB: Yes
  • VGA: No
  • Serial Port: Yes
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: No


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • UL
    • cUL 60950-1
    • IEC
    • EN60950-1
    • IEEE 802.1Q
    • IEEE 802.11k

Management & Protocols

  • Management:
    • CLI
    • DHCP
    • Telnet
    • VLAN
    • Syslog
    • SNMP v1/v2/v3
    • MIB
    • Web Based Management

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: Power Supply

I/O Expansions

  • Expansion Slots: 1 x ExpressCard

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model RFS4000
Number of Wired Access Points None
Number of Supported Access Points 36

Customer Review Summary

Recommended Accessories for Model: Motorola RFS4000 Wireless Controller
Motorola (RFS-4000-6ADP-LIC)
RFS4000 License Certification For 6 Adaptive Access Points
In Stock: Ships Same Day
+ Add to Quote
Motorola (RFS-4010-MTKT1U-WR)
I Ru Mounting Kit Accessory
In Stock: Ships Same Day
+ Add to Quote
Protect Your Product
Motorola Service Contracts - 3 year (SOB-RFS4010-30)
Service from the Start On-site. Includes Comprehensive coverage. Check datasheet for regional availability. Available in NA, LACR and APME only
Ships in 3-5 Days
+ Add to Quote

The Motorola RFS-4011-11110-US is also known as SYM-RFS401111110US or RFS401111110US .
