Motorola RD11320-1611412145 RFID Reader

Part Number: RD11320-1611412145
Model: XR450

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Minimum Frequency
902 MHz
Maximum Frequency
928 MHz
USB
Yes
Material
Cast Aluminum

Product Description:

  Zebra XR450 RFID Reader - 902 MHz to 928 MHz - USB - Desktop

Motorola XR450 RFID Reader Model Overview

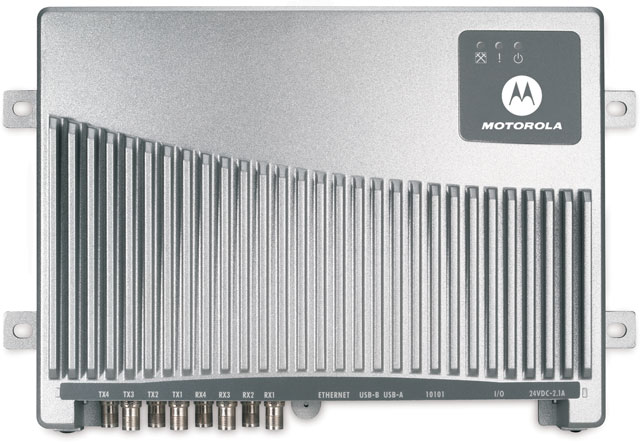

The Motorola XR450 RFID reader is an industrial-class, fixed RFID reader designed for business-critical, dense-reader deployments. With both mono-static and bi-static antenna operation capability, it has the flexibility to meet a wide range of application and environment needs. The XR450 fixed reader provides ease of integration and rich application support while reading tags reliably and efficiently. It provides comprehensive application flexibility, including support for direct application hosting; standard back-end platforms from IBM, Microsoft, SAP and others; and the ability to interact with industrial automation equipment such as conveyors.
Motorola RD11320-1611412145 RFID Reader Overview

Motorola's XR450 RFID reader is an industrial-class, fixed RFID reader designed for business-critical, dense-reader deployments. With both mono-static and bi-static antenna operation capability, it has the flexibility to meet a wide range of application and environment needs.

The XR450 fixed reader provides ease of integration and rich application support while reading tags reliably and efficiently. It provides comprehensive application flexibility, including support for direct application hosting; standard back-end platforms from IBM, Microsoft, SAP and others; and the ability to interact with industrial automation equipment such as conveyors.

Technical Information
Minimum Frequency:
902 MHz
Maximum Frequency:
928 MHz
Interfaces/Ports
USB:
Yes
Physical Characteristics
Material:
Cast Aluminum
Form Factor:
Desktop
Height:
2"
Width:
11.8"
Depth:
8.8"
Weight (Approximate):
5 lb
Miscellaneous
Additional Information:

Environmental Sealing:

  • IP53

Frequency:

  • UHF band
  • 902-928 MHz US

Power Output:

  • Up to 30 dBm

External Interfaces:

  • Control I/O (12) - DB15
  • RS232 Serial Console - DB9
  • USB Client - USB Type B
  • USB Host - USB Type A

RF Connectors:

  • 8 Reverse TNC

Memory:

  • Flash 64 MB
  • DRAM 64 MB

Operating System:

  • Microsoft Windows CE 5.0
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211710
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola RD11320-1611412145 RFID Reader is also known as SYM-RD11321611412145 or RD113201611412145.
