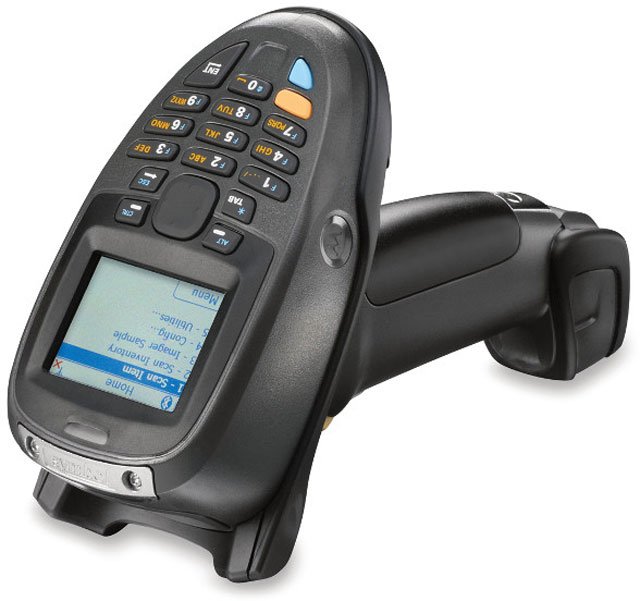

Motorola MT2070-SD0D62370WR Mobile Handheld Computer
Motorola MT2070 -
Handheld Terminal - Batch/Bluetooth data. Intel XScale PXA270 312 MHz processor, 64MB RAM/64MB Flash, Windows CE 5.0 OS with pre-licensed MCL client, standard range imager, QVGA screen (non-touch), 21 key alphanumeric keypad. Terminal only, charging/communications cradle, power supply, and cables sold separately, see accessories.
Full specifications (PDF)Bluetooth and Batch Capability
Streamline scan-intensive data applications with the Motorola MT2070. Combining the simplicity of a scanner with the intelligence of a mobile computer, these handheld mobile terminals provide advanced 1D/2D barcode, DPM and image capture, as well as the ability to key in and view data. Bluetooth, corded and batch connectivity options provide the flexibility to meet a wide range of business needs, and the ergonomic yet rugged design offers comfortable, reliable operation throughout your environment.
Technical Information
- Scanner Range: Standard Range
- Connectivity Technology: Batch
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification: 72" To Concrete
- Barcode Symbology Supported:
- UPC/EAN
- ISBN
- Code 39
- UCC/EAN-128,ISBT-128 Concatenated
- Code 93
- Codabar/NW7
- MSI Plessey
- Interleaved 2 of 5
- ITF 2 of 5
- Discrete 2 of 5 IATA
- Chinese 2 of 5
- GS1
- DataBar
- Base 32
- TLC-39
- Aztec
- Maxicode
- DataMatrix
- QR code
- PDF417
- Composite Codes
- US Postnet
- Planet
- UK Post
- Japan Post
- Australian Post
- Netherlands KIX Code
- Royal Mail 4 State Customer
- upu fics 4 State Postal
- USPS 4CB
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MT2070
- Product Name: MT2070 Handheld Terminal
Physical Characteristics
- Height: 7.8"
- Width: 3.1"
- Depth: 5"
- Weight (Approximate): 13.50 oz
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 312 MHz
- Processor Type: XScale PXA270
Display & Graphics
- Screen Mode: QVGA
- Display Color: Color
- Screen Resolution: 320 x 240
Battery Information
- Battery Capacity: 2400 mAh
- Battery Chemistry: Lithium Ion (Li-Ion)
Memory
- Flash Memory: 64 MB
- Standard Memory: 64 MB
Software
- Operating System: Windows CE 5.0
Network & Communication
- Bluetooth: Yes
Keyboard/Keypad
- Keyboard Type: Alphanumeric
| Brand | Motorola |
| Model | MT2070 |
| Processor | 312 MHz Intel XScale |
| Keypad | 21 |
| Network Connectivity | Bluetooth |
| Operating System | Windows CE 5.0 |
| Drop Rating | 6 ft.1.8 m |
| Scanner Capability | 2D |
| Operating Temperature | -4 F - 122 F |
| RAM Memory | 64 MB |
| IP Rating | IP54 |
| Style | Gun |
| Display Resolution | 320 x 240 |
| Scanner Type | Imager |
| Data Collection Type | Batch |
Loading...
The Motorola MT2070-SD0D62370WR is also known as SYM-MT2070SD0D62370R or MT2070SD0D62370WR .
