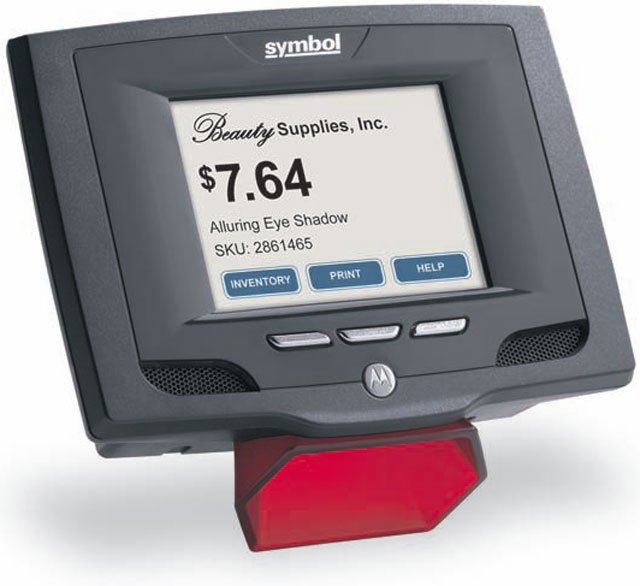

Motorola MK500-A0U0DB9GWTWR Barcode Scanner

Motorola MK500 - Micro Kiosk, 1D Laser, 3 Button, Ethernet Interface, QVGA Touchscreen, Windows CE 5.0, Power supply sold separately.

Full specifications (PDF)

Easy to install anywhere and everywhere
The Motorola MK500 improves customer service and the customer experience with the latest innovations in self-service technology. This compact, easy-to-install and affordable device allows retailers to put the power of self-service in every aisle or department. So, no matter where in the store your customers might be, help is never more than a few steps away. Customers can check price and inventory, check the balance on a gift card, lookup a loyalty point balance, determine the location of a product and call for assistance, all with the scan of a barcode or press of a button or touchpad. In addition, the MK500 easily connects to third-party small mobile printers, enabling retailers to build on the solution to enable more sophisticated and valuable services. For example, customers can print out recipes, gift registries and coupons for in-store specials as well as personalized coupons based on a scan of the customer's loyalty card.

Technical Information

  • Connectivity Technology: Batch
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Code 39
    • Code 128
    • EAN-8
    • EAN-13
    • UPCEAN- 128
    • UPCA
    • UPCE
    • UPC/EAN Supplementals
    • GS1
    • DataBar
    • Chinese 2 of 5
    • Code 93
    • Discrete 2 of 5
    • Interleaved 2 of 5 (including ITF14 and ITF 2 of 5)
    • Codabar
    • ISBT 12

General Information

  • Product Type: POS Kiosk
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MK500
  • Product Name: MK500 Micro Kiosk

Physical Characteristics

  • Height: 5.6"
  • Width: 5.1"
  • Depth: 1.7"
  • Weight (Approximate): 11.20 oz


  • Interfaces/Ports: 1 x RJ-45 Network

Display & Graphics

  • Graphics Modes: QVGA
  • Display Color: Color
  • Screen Size: 3.5"
  • Input Method: Touchscreen
  • Display Resolution: 320 x 240

Environmental Conditions

  • Humidity: 5% to 80% Non-condensing
  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating
    • -4°F (-20°C) to 158°F (70°C) Storage

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale


  • Flash Memory: 64 MB
  • Standard Memory: 64 MB
  • Number of Memory Slots: 1


  • Operating System: Windows CE .NET 5.0


  • Number of Buttons: 3

Network & Communication

  • Network Technology: Fast Ethernet

Power Description

  • Input Voltage: 24 V DC

Full specifications (PDF)

Brand Motorola
Model MK500
Scanner Type Laser
Form Factor Price Checker
Included Cables Scanner Only - No Cable
Connectivity Corded
Color Dark Gray
Scanner Capability 1D
Connection Ethernet
Scan Pattern Single Line
Ruggedness General Purpose

The Motorola MK500-A0U0DB9GWTWR is also known as SYM-MK500A0U0DB9GWTW or MK500A0U0DB9GWTWR .
