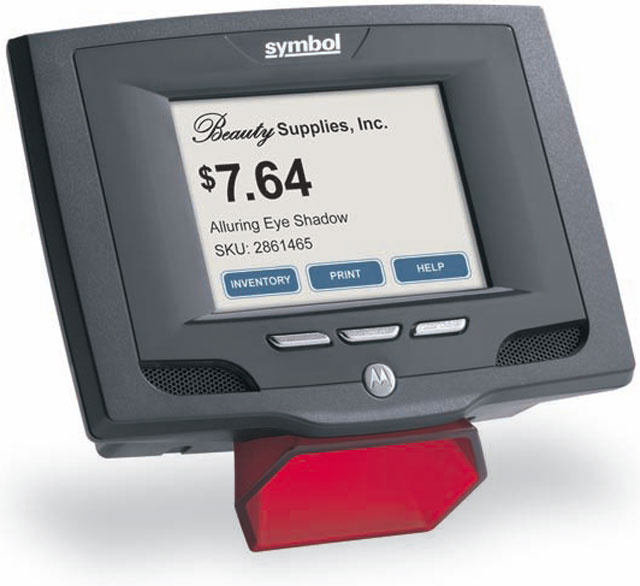

Motorola MK500-A030DB9GWTWR Barcode Scanner

Motorola MK500 - Wired Ethernet Imager with Tou

Full specifications (PDF)

Easy to install anywhere and everywhere
The Motorola MK500 improves customer service and the customer experience with the latest innovations in self-service technology. This compact, easy-to-install and affordable device allows retailers to put the power of self-service in every aisle or department. So, no matter where in the store your customers might be, help is never more than a few steps away. Customers can check price and inventory, check the balance on a gift card, lookup a loyalty point balance, determine the location of a product and call for assistance, all with the scan of a barcode or press of a button or touchpad. In addition, the MK500 easily connects to third-party small mobile printers, enabling retailers to build on the solution to enable more sophisticated and valuable services. For example, customers can print out recipes, gift registries and coupons for in-store specials as well as personalized coupons based on a scan of the customer's loyalty card.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D Symbologies:
    • Code 39
    • Code 128
    • EAN-8
    • EAN-13
    • UPCEAN-128
    • UPCA
    • UPCE
    • UPC/EAN Supplementals (disabled in demo browser application)
    • GS1
    • DataBar
    • Chinese 2 of 5
    • Code 93
    • Discrete 2 of 5
    • Interleaved 2 of 5 (including ITF14 and ITF 2 of 5)
    • Codabar
    • ISBT 128
    • 2D Symbologies:
    • PDF417
    • QR
    • Aztec (if currently supported)
    • DataMatrix
    • MaxiCode

General Information

  • Product Type: POS Kiosk
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MK500
  • Product Name: Micro Kiosk MK500 POS Kiosk
  • Product Line: Micro Kiosk

Physical Characteristics

  • Height: 5.6"
  • Width: 5.1"
  • Depth: 1.7"
  • Weight (Approximate): 11.36 oz

Interfaces/Ports

  • Interfaces/Ports:
    • 1 x USB 2.0 Mini USB
    • 1 x RJ-45 Network

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Electrical Safety:
    • UL60950-1/CSA C22.2 No. 60950-1
    • EN60950-1/IEC60950-1
    • Laser Safety:
    • CEN 60825-1,IEC 60825-1
    • 21CFR1040.10
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • EN 301 489-1
    • EN 301 489-17,EN 55022
    • FCC Part 15 Class B
    • ICES 003 Class B
    • EN 55024
    • EN 61000-3-2
    • EN 61000-3-3
    • AS/NZS 4268:2008
    • Japan VCCI

Display & Graphics

  • Graphics Modes: QVGA
  • Display Color: Color
  • Screen Size: 3.5"
  • Input Method: Touchscreen
  • Display Resolution: 320 x 240

Environmental Conditions

  • Humidity: 5% to 85% Non-condensing
  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating
    • -4°F (-20°C) to 158°F (70°C) Storage

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale

Network & Communication

  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Network Technology: Fast Ethernet

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB

Controls/Indicators

  • Number of Buttons: 3
  • Programmable Buttons: Yes

Built-in Devices

  • Built-in Devices: Speaker

Software

  • Operating System: Windows CE .NET 5.0

Power Description

  • Input Voltage: 24 V DC

Full specifications (PDF)

Brand Motorola
Model MK500
Scanner Type Imager
Connection Ethernet
Form Factor Price Checker
Scanner Capability 2D
Connectivity Corded
Ruggedness General Purpose
