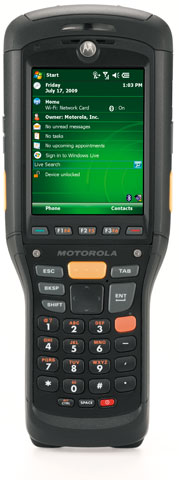

Motorola MC959B-KDGBAD00100 Mobile Handheld Computer
Motorola MC959B-KDGBAD00100 Mobile Handheld Computer
Motorola MC959B -
MC9500-K Handheld Terminal - Intel Xscale 806 MHz - 256 Mb Ram - 1 Gb Flash - 3.7" VGA Lcd - Infrared, Bluetooth
| Quantity | Discount |
|---|---|
| 5-9 | 10% off |
| 10-14 | 15% off |
| 15+ | Contact us for extra savings |
| US orders only | |
Brings Dual 3G WAN Capability to the MC9500 Family

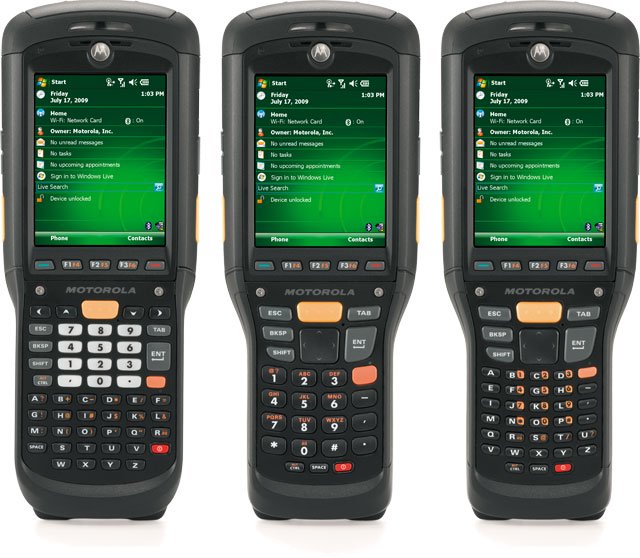

The Motorola MC959B, the latest addition to the MC9500-K family, is the first industrial rugged mobile computer that allows mobile workers to easily select the wireless network that best meets their needs. The MC959B is a data-only device that offers a dual 3G WAN modem enabling enterprises to deploy the device on multiple networks and switch dynamically between 3.5G GSM HSUPA and 3.5 CDMA EVDO Rev A connections. The MC959B also includes all the features of the MC9500-K family, including GPS, Bluetooth, IrDA, 1D/2D scanning/imaging options and versions with and without a 3MP auto-focus camera.
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- +/-15 kV DC Air Discharge
- Drop Specification: 72" To Concrete
General Information
- Product Type: Handheld Terminal
- Product Series: MC9000
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC9500-K
- Product Name: MC9500-K Handheld Terminal
Physical Characteristics
- Height: 9.2"
- Width: 3.5"
- Depth: 2"
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC9500-K Handheld Terminal
- Li-Ion Battery
- MC9500-K Handheld Terminal
- Li-Ion Battery
- Certifications & Standards:
- IP67
- WLAN and Bluetooth (PAN):
- FCC Part 15.247
- 15.407
- ARIB STD T33
- RSS-210
- EN 300 328
- EN 301
- T66
- AS/NZS 4268s
- RF Exposure:
- FCC Part 2
- FCC OET Bulletin Supplement C
- RSS-102
- EN 50360
- ARIB STD T56
- EMI/RFI:
- FCC Part 15
- Class B
- ICES-003 Class B
- EN55022 Class B
- EN 55024
- EN 301 489-1
- EN 301 489-7
- EN 301 489-17
- EN 301 489-19
- EN 301 489-24
- EN 60601-1-2
- EN 50121-3-2
- EN 50121-4
- AS/NZS CISPR-22
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Infrared: Yes
- Cellular Network Supported: GSM
- Network Band: Penta Band
- Wireless LAN Standard: IEEE 802.11a/b/g
- GPS: Yes
- Cellular Data Connectivity Technology: HSDPA
- Wireless Security:
- WPA2
- 802.1x
- EAP-TLS
- TTLS
- PEAP
- LEAP
- EAP-FAST
- Support for IPv6
- CCXv4 certified
- FIPS 140-2 Certified
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: VGA
- Screen Size: 3.7"
- Display Color: Color
- Screen Resolution: 640 x 480
Memory
- Flash Memory: 1 GB
- Standard Memory: 256 MB
- Memory Card Slot: Yes
- Memory Card Supported: microSD Card
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 806 MHz
- Processor Type: XScale
Battery Information
- Battery Capacity: 4800 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Touchscreen Information
- Touchscreen: Yes
Warranty
- Limited Warranty: 1 Year
Full specifications (PDF)| Brand | Motorola |
| Model | MC959B |
| RAM Memory | 256 MB |
| Drop Rating | 6 ft.1.8 m |
| Network Connectivity | 802.11a/b/g, 802.11g, 802.11a, Bluetooth |
| IP Rating | IP64 |
| Scanner Capability | 2D |
| Operating Temperature | -4 F - 122 F |
| Style | Full-size |
| Processor | 806 MHz Marvell PXA320 |
| Scanner Type | Imager |
| Data Collection Type | Wireless |
