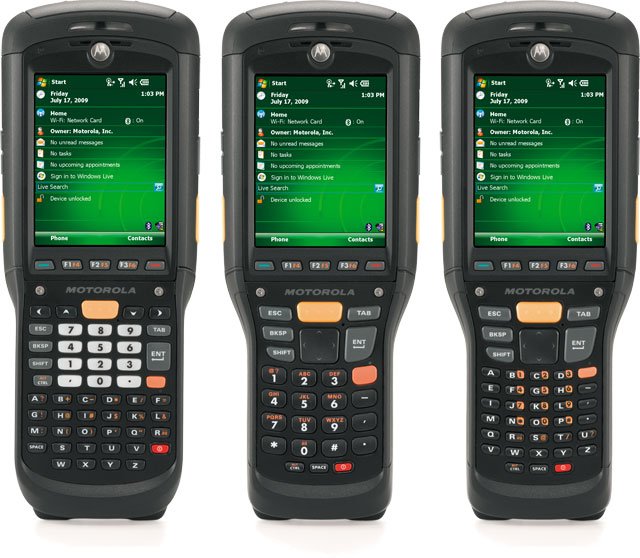

Motorola MC959B-KDGBAB00100 Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Motorola MC959B - MC9500-K Handheld Terminal - Intel Xscale 806 MHz - 256 Mb Ram - 1 Gb Flash - 3.7" VGA Lcd - Alphanumeric Keyboard - Infrared, Bluetooth

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

Brings Dual 3G WAN Capability to the MC9500 Family

The Motorola MC959B, the latest addition to the MC9500-K family, is the first industrial rugged mobile computer that allows mobile workers to easily select the wireless network that best meets their needs. The MC959B is a data-only device that offers a dual 3G WAN modem enabling enterprises to deploy the device on multiple networks and switch dynamically between 3.5G GSM HSUPA and 3.5 CDMA EVDO Rev A connections. The MC959B also includes all the features of the MC9500-K family, including GPS, Bluetooth, IrDA, 1D/2D scanning/imaging options and versions with and without a 3MP auto-focus camera.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Indirect Discharge
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9500-K
  • Product Name: MC9500-K Handheld Terminal

Physical Characteristics

  • Height: 9.2"
  • Width: 3.5"
  • Depth: 2"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9500-K Handheld Terminal
    • Lithium Ion Battery
    • MC9500-K Handheld Terminal
    • Lithium Ion Battery
  • Certifications & Standards:
    • IP67
    • WLAN and Bluetooth (PAN):
    • FCC Part 15.247
    • 15.407
    • RSS-210
    • EN 300 328
    • EN 301
    • ARIB STD T33
    • T66
    • AS/NZS 4268s
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin Supplement C
    • EN 50360
    • RSS-102
    • ARIB STD T56
    • EMI/RFI:
    • FCC Part 15
    • Class B
    • ICES-003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-19
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPR-22

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Infrared: Yes
  • Cellular Network Supported: GSM
  • Network Band: Penta Band
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology: HSDPA
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • LEAP
    • EAP-FAST
    • TTLS
    • PEAP
    • CCXv4 certified
    • Support for IPv6
    • FIPS 140-2 Certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.1

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Type: Alphanumeric

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC959B
Network Connectivity 802.11g, 802.11a, Bluetooth, 802.11a/b/g
IP Rating IP67
Display Resolution 640 x 480
RAM Memory 256 MB
Operating Temperature -4 F - 122 F
Style Full-size
Processor 806 MHz Marvell PXA320
Scanner Type Imager
Data Collection Type Wireless
Scanner Capability 2D
Drop Rating 6 ft.1.8 m
