Barcodes,Inc.

Motorola MC959B-KBGBAB00100 Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

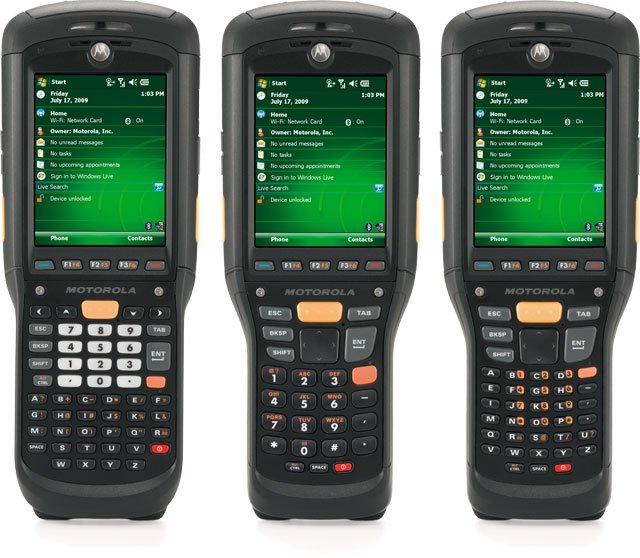

Motorola MC959B - MC9500-K Handheld Terminal - Intel Xscale 806 MHz - 256 Mb Ram - 1 Gb Flash - 3.7" VGA Lcd - Alphanumeric Keyboard - Infrared, Bluetooth
Brings Dual 3G WAN Capability to the MC9500 Family

The Motorola MC959B, the latest addition to the MC9500-K family, is the first industrial rugged mobile computer that allows mobile workers to easily select the wireless network that best meets their needs. The MC959B is a data-only device that offers a dual 3G WAN modem enabling enterprises to deploy the device on multiple networks and switch dynamically between 3.5G GSM HSUPA and 3.5 CDMA EVDO Rev A connections. The MC959B also includes all the features of the MC9500-K family, including GPS, Bluetooth, IrDA, 1D/2D scanning/imaging options and versions with and without a 3MP auto-focus camera.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Indirect Discharge
    • +/-8 kV DC Direct Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9500-K
  • Product Name: MC9500-K Handheld Terminal

Physical Characteristics

  • Height: 9.2"
  • Width: 3.5"
  • Depth: 2"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9500-K Handheld Terminal
    • Lithium-Ion Battery
    • MC9500-K Handheld Terminal
    • Lithium-Ion Battery
  • Certifications & Standards:
    • IP67
    • WLAN and Bluetooth (PAN):
    • FCC Part 15.247
    • 15.407
    • RSS-210
    • EN 300 328
    • EN 301
    • T66
    • ARIB STD T33
    • AS/NZS 4268s
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin Supplement C
    • RSS-102
    • EN 50360
    • ARIB STD T56
    • EMI/RFI:
    • FCC Part 15
    • Class B
    • ICES-003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-19
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPR-22

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Infrared: Yes
  • Cellular Network Supported: GSM
  • Network Band: Penta Band
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology: HSDPA
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS
    • LEAP
    • PEAP
    • EAP-FAST
    • CCXv4 certified
    • Support for IPv6
    • FIPS 140-2 Certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.1

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Type: Alphanumeric

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC959B
Network Connectivity 802.11a/b/g, 802.11g, 802.11a, Bluetooth
Display Resolution 640 x 480
IP Rating IP67
Operating Temperature -4 F - 122 F
Style Full-size
RAM Memory 256 MB
Processor 806 MHz Marvell PXA320
Scanner Type Imager
Data Collection Type Wireless
Scanner Capability 2D
Drop Rating 6 ft.1.8 m


Customer Review Summary

Recommended Accessories for Model: Motorola MC959B Mobile Computer
Motorola (BTRY-MC95IABA0-10)
MC95XX Spare 1x Battery, 4800 mAh, 10-pack
In Stock: Ships Same Day
$715.00
+ Add to Quote
Motorola (BTRY-MC95IABA0)
MC95XX Spare 1x Battery, 4800 mAh
In Stock: Ships Same Day
$77.50
+ Add to Quote
Motorola RCH51 (RCH51)
Rugged Cabled Headset
In Stock: Ships Same Day
$223.70
+ Add to Quote
Motorola (RAM-D-2461U-MOTO7)
BRIDGE WITH RAM-D-2461U RAM MOUNT, D (2.25"") SIZE BALL WITH SCREWS, INCLUDING SCREWS TO MOUNT THE PWRS-9-60VDC-01R EXTERNAL DC POWER SUPPLY
In Stock: Ships Same Day
$175.70
+ Add to Quote
Motorola (SG-MC9521110-01R)
MC95 Soft Fabric Holster
In Stock: Ships Same Day
$57.70
+ Add to Quote
Protect Your Product
Motorola Service Contract - 3 year (Z1AS-MC95XX-3C03)
3 Year Zebra OneCare Select. Includes Comprehensive coverage. Does not include coverage for cradles. .(Requires customer-supplied spares pool in NA, not available for LA.)
Ships in 3-5 Days
$363.10
+ Add to Quote

The Motorola MC959B-KBGBAB00100 is also known as SYM-MC959BKBGBAB0010 or MC959BKBGBAB00100 .
