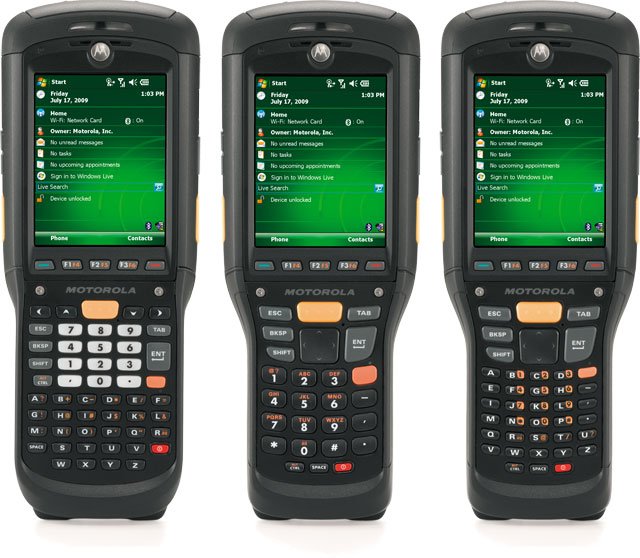

Motorola MC9596-KDAEAD00100 Mobile Handheld Computer

Motorola MC9500-K Wireless Rugged - MC9590 HSDPA 2D Num/Tel Camera Windows Mobile 6.5

Full specifications (PDF)

Ergonomic design and options for swappable keyboards
The Motorola MC9500-K rugged, handheld mobile computer leverages all the flagship features and functionality of Motorola's signature MC9000 Series rugged mobile computers, while introducing many new capabilities defined through extensive research and testing. The new ergonomic form factor gives this sleeker, smaller handheld unsurpassed performance with one-handed operation, while its rugged design makes the MC9500-K suitable in any environment. Incorporating the latest in technology, including expanded processing power and an upgraded operating system, the MC9500-K puts powerful new capabilities into the hands of your customers' employees. These new features will seamlessly integrate with current technology on Motorola's common platform and its modular capabilities provide the flexibility to customize its functionality to best suit your customers' needs. The MC9500-K's 3G WAN with integrated GPS capability, along with a number of practical new innovations and a game-changing approach to battery and backroom management, takes rugged mobile computing innovation to a new level.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Air Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9500-K
  • Product Name: MC9500-K Mobile Computer

Physical Characteristics

  • Height: 9.2"
  • Width: 3.5"
  • Depth: 2"
  • Weight (Approximate): 1.37 lb

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Cellular Network Supported: GSM
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology: HSDPA
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • CCXv4 certified
    • Support for IPv6
    • FIPS 140-2 Certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5

Keyboard/Keypad

  • Keyboard Type: Numeric

Full specifications (PDF)

Brand Motorola
Model MC9500-K
Display Resolution 640 x 480
Processor 624 MHz Marvell PXA270
Scanner Capability 2D
Operating Temperature -4 F - 122 F
Style Full-size
RAM Memory 256 MB
Drop Rating 6 ft.1.8 m
Network Connectivity 802.11a/b/g, Bluetooth, 802.11g, 802.11a
IP Rating IP67
Operating System Windows Mobile 6.5
Scanner Type Imager
Data Collection Type Wireless

Loading...

The Motorola MC9596-KDAEAD00100 is also known as SYM-MC9596KDAEAD0010 or MC9596KDAEAD00100 .
