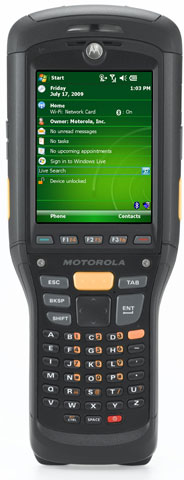

Motorola MC9596-KBAEAB00100 Mobile Handheld Computer

Motorola MC9590 - WLAN 80211 A/B/G, 3G WWAN 35G HSDPA, 2D Imager, GPS, Color VGA DISPLAY, 256MB/1GB, AlphaNumeric Wide Keypad, WM 65, Audio, Voice, Bluetooth. Interface Cables And Charging Cradle Sold Separately.
$2,460.15
Why don't we show the price?
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Quantity Discount
5-9 10% off
10-14 15% off
15+ Contact us for extra savings
US orders only
The next evolution in rugged design, ergonomics, features, functionality and performance.

The MC9590 Rugged Barcode Kit offers a breakthrough in ergonomic design while boasting the features needed to support the most demanding of field mobility applications. Pairing TracerPlus Professional data collection software along with the extremely rugged MC9590 barcode terminal, the deployment possibilities are endless and can be used for many mobile tasks including utility inspections and maintenance, route delivery management and tracking, a variety of field service and manufacturing to name a few. Using Motorola's flagship MC9590 series as a base for development, the MC9590 introduces many new capabilities driving ease-of-use, ease-of-management, flexibility, modularity, and brings the overall life-cycle and system performance to new heights.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9500-K
  • Product Name: MC9500-K Handheld Terminal

Physical Characteristics

  • Height: 9.2"
  • Width: 3.5"
  • Depth: 2"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IP67
    • WLAN and Bluetooth (PAN):
    • FCC Part 15.247
    • RSS-210
    • 15.407
    • EN 300 328
    • EN 301
    • ARIB STD T33
    • T66
    • AS/NZS 4268s
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin Supplement C
    • RSS-102
    • EN 50360
    • ARIB STD T56
    • EMI/RFI:
    • FCC Part 15
    • Class B
    • ICES-003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-19
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPR-22

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Infrared: Yes
  • Cellular Network Supported:
    • GSM
    • CDMA
  • Network Band: Penta Band
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Wireless Security:
    • PEAP
    • LEAP
    • EAP-FAST
    • CCXv4
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Type: Alphanumeric

Full specifications (PDF)
