Barcodes,Inc.

Motorola MC9590-KA0DAE00100 Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

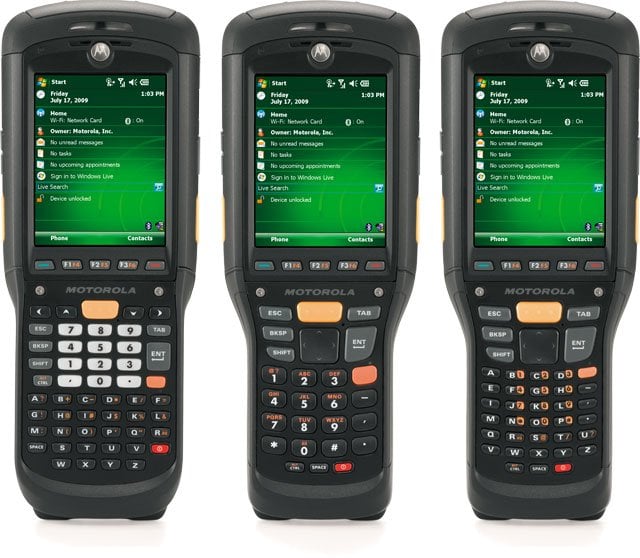

Motorola MC9500-K Wireless Rugged - MC9590-B Wlan/GPS, 1D Windows Mobile 6.5, 256MB/1g Num.Calc.
Ergonomic design and options for swappable keyboards

The Motorola MC9500-K rugged, handheld mobile computer leverages all the flagship features and functionality of Motorola's signature MC9000 Series rugged mobile computers, while introducing many new capabilities defined through extensive research and testing. The new ergonomic form factor gives this sleeker, smaller handheld unsurpassed performance with one-handed operation, while its rugged design makes the MC9500-K suitable in any environment. Incorporating the latest in technology, including expanded processing power and an upgraded operating system, the MC9500-K puts powerful new capabilities into the hands of your customers' employees. These new features will seamlessly integrate with current technology on Motorola's common platform and its modular capabilities provide the flexibility to customize its functionality to best suit your customers' needs. The MC9500-K's 3G WAN with integrated GPS capability, along with a number of practical new innovations and a game-changing approach to battery and backroom management, takes rugged mobile computing innovation to a new level.

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9500-K
  • Product Name: MC9500-K Handheld Terminal

Physical Characteristics

  • Height: 9.2"
  • Width: 3.5"
  • Depth: 2"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9500-K Handheld Terminal
    • Li-Ion Battery
    • MC9500-K Handheld Terminal
    • Li-Ion Battery
  • Certifications & Standards:
    • IP67
    • WLAN and Bluetooth (PAN):
    • FCC Part 15.247
    • RSS-210
    • 15.407
    • EN 300 328
    • EN 301
    • ARIB STD T33
    • T66
    • AS/NZS 4268s
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin Supplement C
    • RSS-102
    • EN 50360
    • ARIB STD T56
    • EMI/RFI:
    • FCC Part 15
    • Class B
    • ICES-003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-19
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPR-22

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Infrared: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • CCXv4 certified
    • Support for IPv6
    • FIPS 140-2 Certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Type: Numeric

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC9500-K
Network Connectivity 802.11g, 802.11a, 802.11a/b/g, Bluetooth
IP Rating IP67
Operating System Windows Mobile 6.5
Operating Temperature -4 F - 122 F
Style Full-size
Display Resolution 640 x 480
RAM Memory 256 MB
Processor 806 MHz Marvell PXA320
Scanner Type Laser
Data Collection Type Wireless
Scanner Capability 1D
Drop Rating 6 ft.1.8 m


Customer Review Summary

Recommended Accessories for Model: Motorola MC9500-K Mobile Computer
Motorola (BTRY-MC95IABA0-10)
MC95XX Spare 1x Battery, 4800 mAh, 10-pack
In Stock: Ships Same Day
$721.70
+ Add to Quote
Motorola (BTRY-MC95IABA0)
MC95XX Spare 1x Battery, 4800 mAh
In Stock: Ships Same Day
$77.50
+ Add to Quote
Motorola RCH51 (RCH51)
Rugged Cabled Headset
In Stock: Ships Same Day
$223.70
+ Add to Quote
Motorola (RAM-D-2461U-MOTO7)
BRIDGE WITH RAM-D-2461U RAM MOUNT, D (2.25"") SIZE BALL WITH SCREWS, INCLUDING SCREWS TO MOUNT THE PWRS-9-60VDC-01R EXTERNAL DC POWER SUPPLY
In Stock: Ships Same Day
$175.70
+ Add to Quote
Motorola (SG-MC9521110-01R)
MC95 Soft Fabric Holster
In Stock: Ships Same Day
$57.70
+ Add to Quote

The Motorola MC9590-KA0DAE00100 is also known as SYM-MC9590KA0DAE0010 or MC9590KA0DAE00100 .
