Industry Leading Gold Standard for Mobility in Demanding Environments

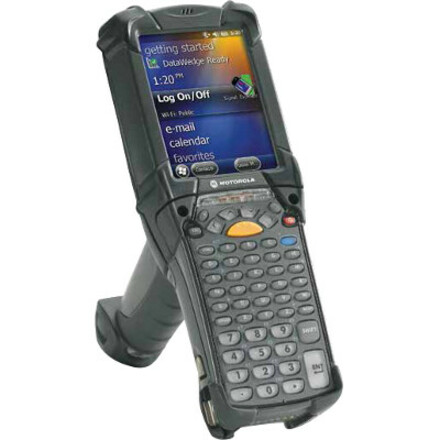

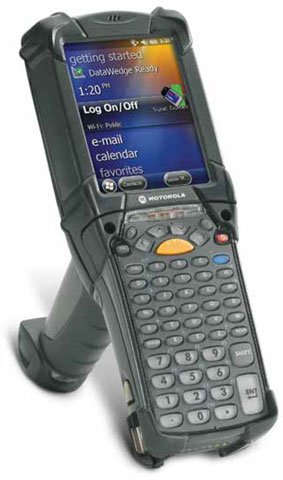

The MC9200 gun-style mobile computer is the next generation in the rugged MC9000 Series, the industry leading gold standard for mobility in demanding environments. You get the same signature features that make up the foundation of every MC9000 Series mobile computer "" rugged design, best-in-class barcode scanning and dependable operation "" now with the power to run today"s highly-intuitive applications to help increase productivity and task accuracy in your warehouse, manufacturing plant, airport or military bases. Added support for 802.11n, the fastest Wi-Fi connection available today, allows you to give your workers the best possible wireless voice and data experience. Since the MC9200 is compatible with the MC9000 Series accessories you already own, you can cost-effectively upgrade to the latest technology. And with millions of MC9000 Series mobile computers at work every day, all around the world, you get well-proven technology you "" and your workers "" can count on.
Technical Information
- Scanner Range: Standard Range
- Connectivity Technology: Wireless
- Light Source: Laser
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
- Barcode Symbology Supported: 1D
General Information
- Product Type: Handheld Terminal
- Product Series: MC9000
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC9200
- Product Name: MC9200 Mobile Computer
Physical Characteristics
- Height: 7.6"
- Width: 3.6"
- Length: 9.1"
- Weight (Approximate): 1.69 lb
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC9200 Mobile Computer
- Battery
- MC9200 Mobile Computer
- Battery
- Certifications & Standards:
- IPv6
- FIPS 140-2
- CCXv4
- IP64
- MIL-STD 810G
- Electrical Safety:
- UL 60950-1
- CSA C22.2 No. 60950-1
- EN60950-1/IE C60950-1
- WLAN and Bluetooth:
- FCC Part 15.247, 15.407
- RSS-210
- EN 300 328
- EN 301 893
- RF Exposure:
- FCC Part 2, FCC OET Bulletin 65 Supplement C
- RSS-102
- EN62311
- EN50371
- EMI/RFI:
- FCC Part 15
- RSS-210
- ICES 003 Class B
- EN 301 489-1
- EN 301 489-17
- EN55022 Class B
- EN55024
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IE C60825-1/EN60825-1
- LED Safety:
- IEC/EN60825-1 and IEC/EN62471
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g/n
- Wireless Security:
- WPA2 Enterprise
- 802.1x
- EAP-TLS
- TTLS (CHAP)
- TTLS (MS-CHAP)
- TTLS (MS-CHAPv2)
- TTLS PAP
- TTLS MD5
- PEAP TLS
- PEAP (MSCHAPv2)
- PEAP EAP-GTC
- LEAP
- EAP-FAST TLS
- EAP-FAST MS-CHAPv2
- EAP-FAST EAP-GTC
- WPA2/AES
Memory
- Flash Memory: 2 GB
- Standard Memory: 1 GB
- Memory Card Slot: Yes
- Memory Card Supported: Secure Digital High Capacity (SDHC)
Processor & Chipset
- Processor Manufacturer: Texas Instruments
- Processor Speed: 1 GHz
- Processor Type: OMAP 4
Display & Graphics
- Screen Mode: VGA
- Screen Size: 3.7"
- Display Color: Color
Battery Information
- Battery Capacity: 2200 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Software
- Operating System: Microsoft Windows Embedded Compact CE 7.0
Full specifications (PDF)
Full specifications (PDF)
| Brand |
Motorola |
| Model |
MC9200 |
|
Network Connectivity
|
802.11g, 802.11a, Bluetooth, 802.11n, 802.11 b/g, 802.11a/b/g/n, 802.11a/b/g, 802.11 b/g/n |
|
RAM Memory
|
1 GB |
|
Operating System
|
Windows CE 7.0 |
|
Style
|
Gun |
|
Keypad
|
53 |
|
Scanner Type
|
Laser |
|
Data Collection Type
|
Wireless |
|
Scanner Capability
|
1D |
